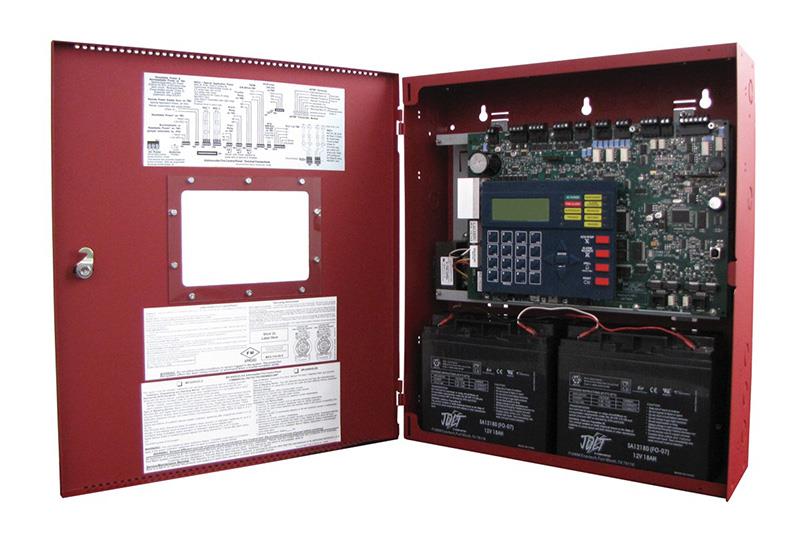

MS-9200UDLS | Honeywell Intelligent Addressable FACP with Built-In Communicator
MS-9200UDLS | Honeywell Intelligent Addressable FACP with Built-In Communicator
MS-9200UDLS | Honeywell Intelligent Addressable FACP with Built-In Communicator
    MS-9200UDLS | Honeywell Intelligent Addressable FACP with Built-In Communicator
MS-9200UDLS | Honeywell Intelligent Addressable FACP with Built-In Communicator

MS-9200UDLS | Honeywell Intelligent Addressable FACP with Built-In Communicator

Part #: MS-9200UDLS Manufactured by: Honeywell
Regular price
$4,449.00
Sale price
$4,449.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The MS-9200UDLS is a single-loop, intelligent fire alarm control panel with comprehensive communication, notification, and...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: MS-9200UDLS
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Honeywell
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: MS-9200UDLS

Description / Specifications

Description

The Fire-Lite MS-9200UDLS is an addressable fire alarm control panel designed to manage detection, notification, and emergency communication in commercial and industrial facilities. It supports up to 198 addressable devices and features LiteSpeed™ protocol, integrated DACT, and four NACs for flexible system deployment.





Technical Specifications

Condition New/Never Used Surplus
Brand Honeywell
Category
Fire Safety
Part Number MS-9200UDLS
Subcategory Fire Alarm
System Type Addressable Fire Alarm Control Panel
Device Capacity 198 addressable devices (99 detectors + 99 modules)
SLC Loop Type Single loop, NFPA Style 4, 6, or 7
NAC Outputs Four Style Y (Class B), convertible to Style Z (Class A)
Power Supply 120 VAC, 60 Hz, 2.0 A
Backup Battery Support 7–18 Ah in cabinet; up to 120 Ah with external charger
Display 80-character backlit LCD
History Buffer Stores up to 1,000 events
Relay Outputs Two programmable, one fixed trouble relay (Form-C)
Communication Options Built-in DACT, EIA-232, EIA-485, ANN-BUS, ACS
Programming Onboard with Auto-Program “learn” mode
Clock/Calendar Real-time with DST support
Synchronization Support Strobe sync per NAC; remote sync output
Enclosure Rating Standard Fire-Lite enclosure
Certifications UL, CE, FM, NFPA 72 compliant
Operating Voltage (NACs) 24 VDC nominal (special application rated)
Maximum NAC Current 2.5 A per circuit (special app), 3.0 A total; expandable to 6.0 A
Weight ~18–22 lbs (including batteries and cabinet)





Information About MS-9200UDLS

The MS-9200UDLS is a powerful and scalable Fire Alarm Control Panel (FACP) developed by Fire-Lite (Honeywell) for mid-sized addressable fire alarm systems. It features one SLC loop supporting 99 detectors and 99 modules, and operates using the LiteSpeed™ polling protocol for faster response times. The system includes built-in DACT communication, four Notification Appliance Circuits (NACs), and programmable relays. The 80-character backlit LCD screen, onboard real-time clock, 1,000-event history log, and built-in auto-program mode simplify installation and monitoring. The panel is compatible with ECC-50/100 emergency command systems, ANN-series annunciators, and provides advanced features such as drift compensation, detector sensitivity testing, walk tests, and auto silence timers. The MS-9200UDLS complies with NFPA 72, UL, CE, and FM requirements and is designed for 120 VAC systems (MS-9200UDLSE for 220/240 VAC).

Key Features:

  • 198 Addressable Device Capacity: Supports 99 detectors and 99 modules on a single SLC loop.
  • LiteSpeed™ Protocol: Reduces polling latency and increases system responsiveness.
  • Integrated DACT: Provides built-in digital alarm communicator for remote monitoring.
  • Four NAC Circuits: Four Class B (Style Y) outputs, convertible to Class A (Style Z).
  • Dual Relay Outputs: Two programmable relays and one fixed trouble relay for system integration.
  • Backlit LCD Display: 80-character interface for clear event and programming display.
  • 1,000-Event History Buffer: Enables detailed diagnostics and post-event tracking.
  • Advanced Detector Functions: Supports drift compensation, sensitivity test, and auto-verification.
  • Infrared and EIA Interfaces: Communication options for programming and remote printing.
  • NEMA/NFPA Compliance: Fully compliant with NFPA 72 and UL-listed fire protection standards.

The MS-9200UDLS delivers high-performance addressable fire detection and alarm control for critical life safety applications.

IQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Fire-Lite MS-9200UDLS is an addressable fire alarm control panel designed to manage detection, notification, and emergency communication in commercial and industrial facilities. It supports up to 198 addressable devices and features LiteSpeed™ protocol, integrated DACT, and four NACs for flexible system deployment.





Technical Specifications

Condition New/Never Used Surplus
Brand Honeywell
Category
Fire Safety
Part Number MS-9200UDLS
Subcategory Fire Alarm
System Type Addressable Fire Alarm Control Panel
Device Capacity 198 addressable devices (99 detectors + 99 modules)
SLC Loop Type Single loop, NFPA Style 4, 6, or 7
NAC Outputs Four Style Y (Class B), convertible to Style Z (Class A)
Power Supply 120 VAC, 60 Hz, 2.0 A
Backup Battery Support 7–18 Ah in cabinet; up to 120 Ah with external charger
Display 80-character backlit LCD
History Buffer Stores up to 1,000 events
Relay Outputs Two programmable, one fixed trouble relay (Form-C)
Communication Options Built-in DACT, EIA-232, EIA-485, ANN-BUS, ACS
Programming Onboard with Auto-Program “learn” mode
Clock/Calendar Real-time with DST support
Synchronization Support Strobe sync per NAC; remote sync output
Enclosure Rating Standard Fire-Lite enclosure
Certifications UL, CE, FM, NFPA 72 compliant
Operating Voltage (NACs) 24 VDC nominal (special application rated)
Maximum NAC Current 2.5 A per circuit (special app), 3.0 A total; expandable to 6.0 A
Weight ~18–22 lbs (including batteries and cabinet)





Information About MS-9200UDLS

The MS-9200UDLS is a powerful and scalable Fire Alarm Control Panel (FACP) developed by Fire-Lite (Honeywell) for mid-sized addressable fire alarm systems. It features one SLC loop supporting 99 detectors and 99 modules, and operates using the LiteSpeed™ polling protocol for faster response times. The system includes built-in DACT communication, four Notification Appliance Circuits (NACs), and programmable relays. The 80-character backlit LCD screen, onboard real-time clock, 1,000-event history log, and built-in auto-program mode simplify installation and monitoring. The panel is compatible with ECC-50/100 emergency command systems, ANN-series annunciators, and provides advanced features such as drift compensation, detector sensitivity testing, walk tests, and auto silence timers. The MS-9200UDLS complies with NFPA 72, UL, CE, and FM requirements and is designed for 120 VAC systems (MS-9200UDLSE for 220/240 VAC).

Key Features:

  • 198 Addressable Device Capacity: Supports 99 detectors and 99 modules on a single SLC loop.
  • LiteSpeed™ Protocol: Reduces polling latency and increases system responsiveness.
  • Integrated DACT: Provides built-in digital alarm communicator for remote monitoring.
  • Four NAC Circuits: Four Class B (Style Y) outputs, convertible to Class A (Style Z).
  • Dual Relay Outputs: Two programmable relays and one fixed trouble relay for system integration.
  • Backlit LCD Display: 80-character interface for clear event and programming display.
  • 1,000-Event History Buffer: Enables detailed diagnostics and post-event tracking.
  • Advanced Detector Functions: Supports drift compensation, sensitivity test, and auto-verification.
  • Infrared and EIA Interfaces: Communication options for programming and remote printing.
  • NEMA/NFPA Compliance: Fully compliant with NFPA 72 and UL-listed fire protection standards.

The MS-9200UDLS delivers high-performance addressable fire detection and alarm control for critical life safety applications.
