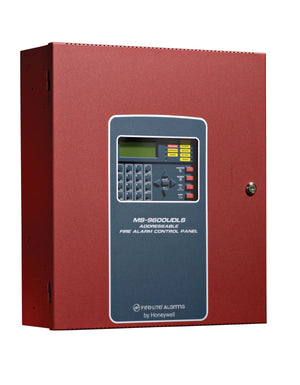

MS-9600 | Honeywell Fire Alarm Control Panel
- Regular price
- $963.30
- Sale price
- $963.30
- Regular price
-
$1,014.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: MS-9600
Description
The Honeywell MS-9600 is a compact, intelligent addressable fire alarm control panel that supports up to 636 addressable devices and is equipped with advanced diagnostics, flexible wiring options, and a clear LCD user interface. Ideal for medium to large fire protection systems, it ensures reliable operation and streamlined installation.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Fire Safety Systems
|
| Part Number | MS-9600 |
| Subcategory | Addressable Fire Panels |
| Device Capacity | Up to 636 (318 per SLC loop × 2) |
| SLC Wiring Style | NFPA Style 4, 6, 7 |
| Max SLC Loop Length |
10,000 ft (3,048 m) at 12 AWG |
| NAC Circuits | Four (Class A or B), strobe sync supported |
| Display | 80-character backlit LCD |
| Event Memory | 1,000+ |
| Software Zones | 99 |
| Communication Interfaces | EIA-232, EIA-485, optional DACT-UD |
| Input Power | 120 VAC at 3.0 A / 240 VAC at 1.5 A, 50/60 Hz |
| Battery Charger Output | 27.6 VDC at 1.0 A max |
| Min/Max Battery Capacity | 12 AH / 26 AH |
| Backbox Dimensions (H×W×D) | 19.00" × 16.65" × 5.21" |
| Door Dimensions | 19.26" × 16.82" × 0.67" |
| Trim Ring Dimensions | 22.00" × 19.65" |
| Weight | 27.3 lbs |
Information About MS-9600
The MS-9600 from Fire-Lite (Honeywell) supports up to two SLC loops with a total capacity of 636 addressable points (318 per loop). It is designed for NFPA Style 4, 6, or 7 wiring and accommodates up to 10,000 feet per SLC loop using 12 AWG wire. This system supports a wide variety of detectors and modules, including photoelectric, duct, heat, monitor, relay, and dual-monitor devices. The panel includes four Class A or B NAC circuits, real-time clock/calendar functions, drift compensation, and automatic sensitivity testing. It can be remotely accessed via an optional DACT-UD modem. A built-in 80-character backlit LCD and menu-driven navigation simplify operation. The cabinet includes space for backup batteries up to 26 AH and supports 120/240 VAC input.
Key Features:
- Expandable Addressability: Supports up to 636 addressable devices across two SLC loops.
- Multi-Style SLC Configuration: Compatible with NFPA Styles 4, 6, and 7 for flexible system design.
- Long Wiring Distance: Up to 10,000 ft per SLC loop with 12 AWG wiring.
- Versatile NAC Support: Four onboard NACs (Class A or B) with strobe synchronization and silence features.
- Advanced Detection Features: Includes automatic sensitivity compensation, drift alerts, and built-in diagnostics.
- Real-Time Event Logging: Tracks up to 1,000 events with date/time stamps via internal clock.
- Modem-Compatible: Optional DACT-UD modem allows remote upload/download and supervision.
- User-Friendly Interface: Features an 80-character backlit LCD, programmable user labels, and two-level password access.
- Flexible Programming: Auto-programming and custom configuration with PC or local keyboard.
- Standard Battery Support: Supports up to 26 AH batteries with a 27.6 VDC @ 1.0 A charger output.
The MS-9600 combines smart fire detection, wide compatibility, and advanced system monitoring, making it ideal for scalable commercial installations.
