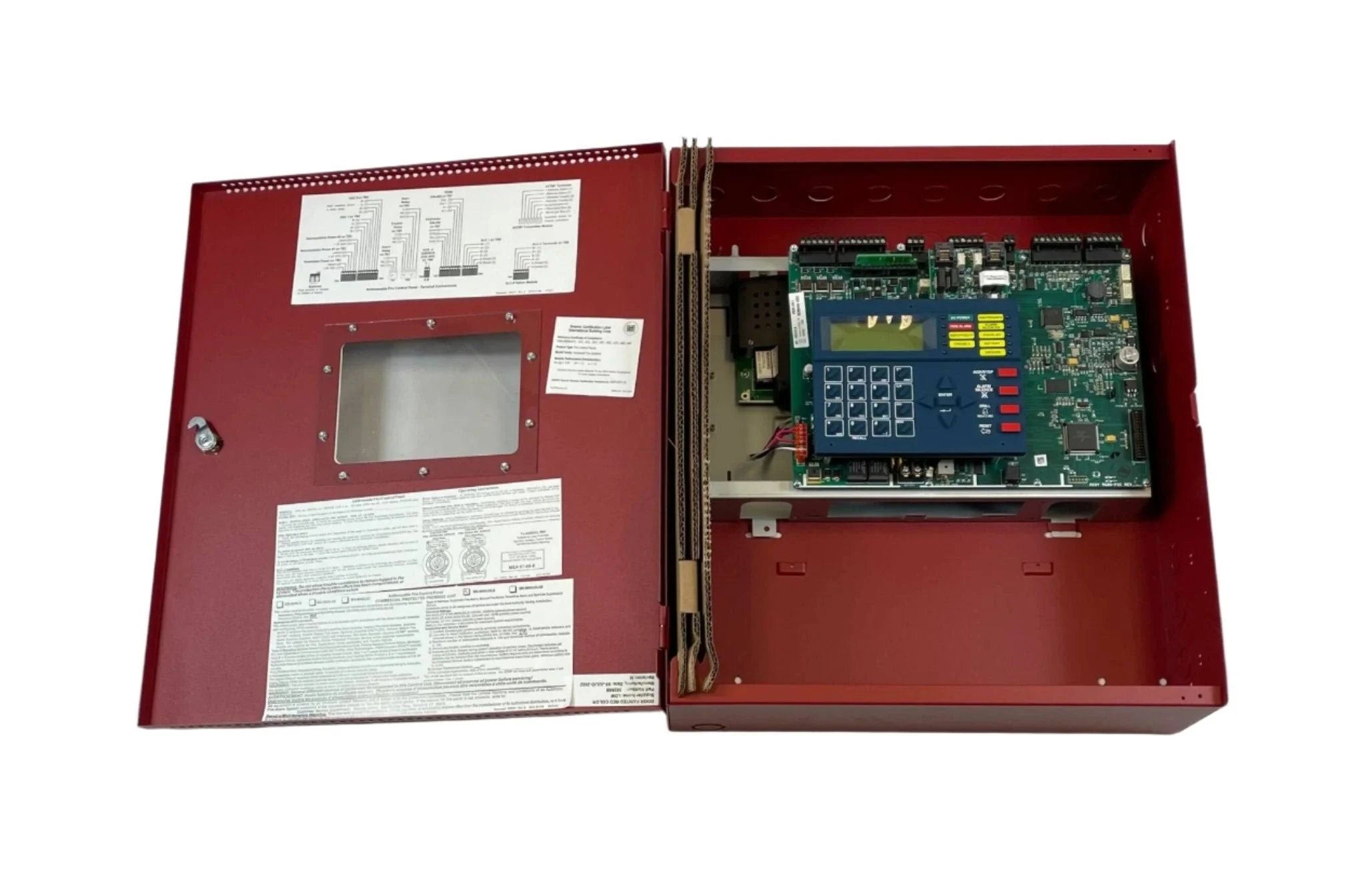

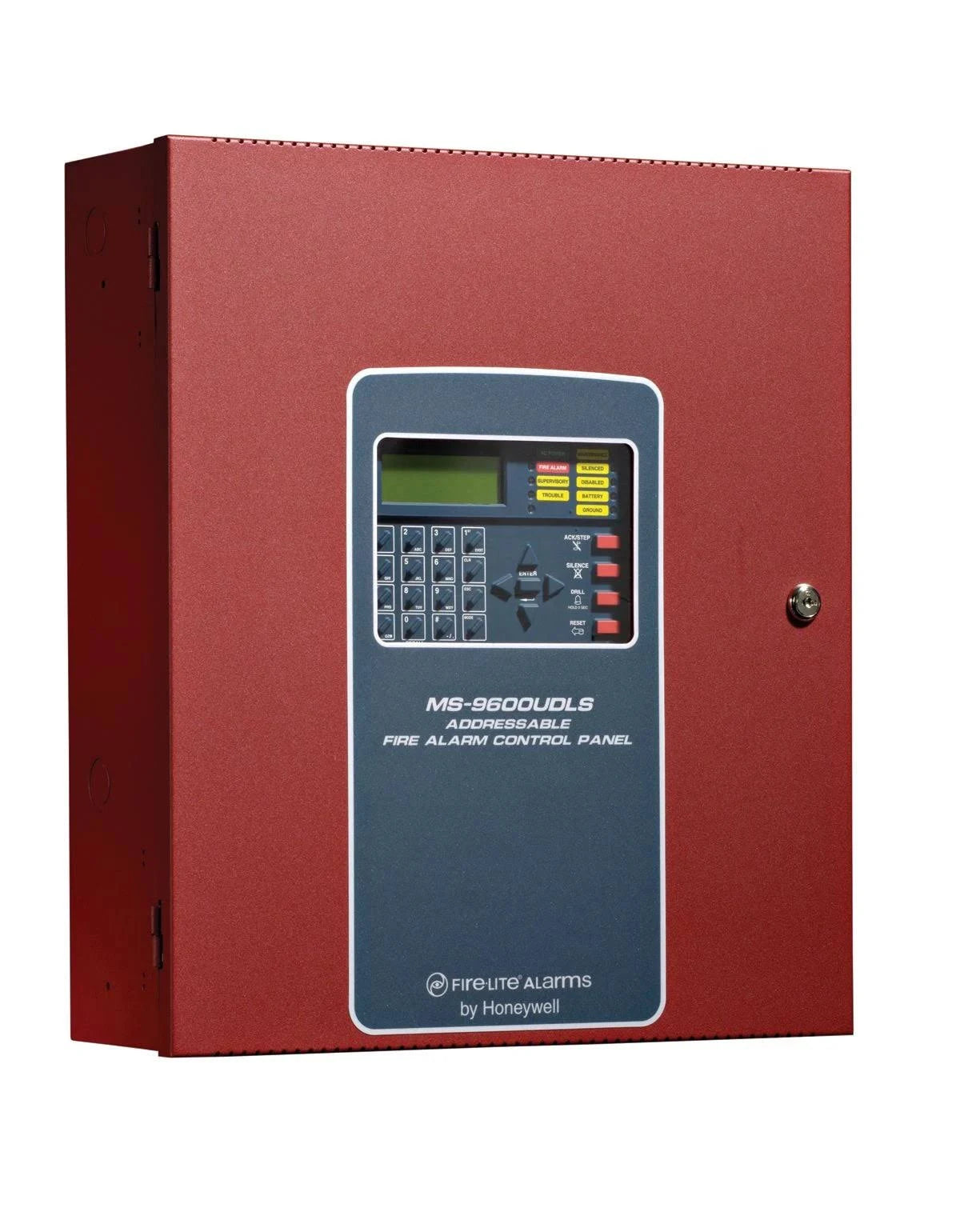

MS-9600UDLS | Fire-Lite 318-Point Intelligent Addressable Fire Alarm Control Panel
- Regular price
- $2,278.00
- Sale price
- $2,278.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MS-9600UDLS
Description
The Fire-Lite MS-9600UDLS is a 318-point intelligent addressable fire alarm control panel with a built-in Digital Alarm Communicator/Transmitter (DACT-UD2). It supports one SLC loop standard and can be expanded to 636 points with an optional second loop, providing scalable protection for commercial and institutional facilities.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Alarm Systems |
| Part Number | MS-9600UDLS |
| Subcategory | Fire Alarm Control Panels |
| Addressable Capacity | 318 points standard; expandable to 636 with SLC-2LS module |
| Notification Appliance Circuits | Four Style Y (Class B) or two Style Z (Class A) NACs |
| Synchronization | Per NAC for System Sensor, Wheelock, and Gentex devices |
| Power Supply | 7 A switching supply |
| Audio Control | Automated control of ACC-25/50(ZS/T) audio circuits |
| Digital Communicator | Factory-installed DACT-UD2, supports PSTN and internet transmission |
| Optional Communication | IPDACT Internet Protocol DACT |
| Input Power | 120 VAC, 50/60 Hz, 3.0 A or 240 VAC, 50 Hz, 1.5 A |
| Backup Power | 27.6 VDC @ 1.0 A max, supports 12–26 AH batteries (18 AH in cabinet) |
| Display | 80-character LCD |
| Enclosure | Red cabinet with trim ring option |
| Backbox Dimensions | 19.00″ H × 16.65″ W × 5.21″ D (48.26 × 42.29 × 13.23 cm) |
| Door Dimensions | 19.26″ H × 16.82″ W × 0.67″ D (48.92 × 42.73 × 1.70 cm) |
| Trim Ring Dimensions | 22.00″ H × 19.65″ W (55.88 × 49.91 cm) |
| Shipping Weight | 27.3 lbs (12.4 kg) |
| Compliance | UL 864, NFPA 72 compliant |
Information About MS-9600UDLS
The MS-9600UDLS from Fire-Lite is a versatile fire alarm control panel designed for medium to large installations that require intelligent addressable detection. It supports 318 devices on a single SLC loop and can be expanded to 636 points with the addition of a second loop module. Equipped with a 7-amp power supply, it provides four NAC outputs configurable as Class B or Class A with built-in strobe synchronization for popular notification appliances. A factory-installed DACT-UD2 communicator ensures reliable event reporting over PSTN or internet, with optional IPDACT support for IP-based monitoring. With its large enclosure, the MS-9600UDLS accommodates up to 18 AH batteries for extended backup, making it a dependable solution for a wide range of applications.
Key Features:
- Expandable Addressable Capacity: Supports 318 devices standard, expandable to 636 with SLC-2LS module.
- Integrated Communicator: Includes factory-installed DACT-UD2 for central station reporting via PSTN or internet.
- Optional IP Communication: Supports IPDACT module for secure digital alarm transmission over IP networks.
- Flexible NAC Outputs: Four Class B or two Class A circuits with selectable strobe synchronization.
- High Power Supply: 7 A switching supply with large enclosure to support up to 18 AH batteries.
- Audio Control Integration: Automates ACC-25/50(ZS/T) audio circuits for emergency messaging.
- User-Friendly Display: 80-character LCD provides detailed event and programming information.
- Space-Efficient Design: Includes trim ring for flush mounting and easy chassis installation.
- UL and NFPA Approved: Meets rigorous fire alarm and life safety standards.
- Expandable System: Allows facility growth with optional SLC modules and IP communication upgrades.
The MS-9600UDLS delivers the reliability and precision required for scalable, intelligent fire alarm detection and reporting in commercial and institutional buildings.
