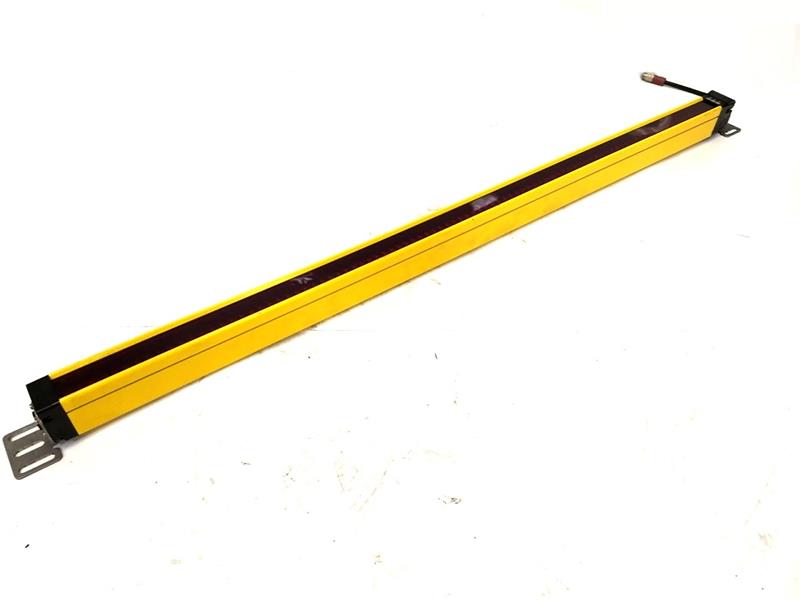

MS4800S-20-0920-R | Omron Safety Light Curtain Receiver 920 mm 20 mm Detection IP65
- Regular price
- $3,999.00
- Sale price
- $3,999.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: MS4800S-20-0920-R
Description
The Omron MS4800S-20-0920-R Safety Light Curtain Receiver is a high-performance safety device designed to detect the presence of fingers or hands entering hazardous areas. With a 20 mm detection capability, 10 mm beam pitch, and a protective height of 920 mm, it ensures operator safety in automated machinery and production lines. Operating at 24 VDC, this receiver-only model features blanking capability and an IP65-rated housing, offering reliable protection in harsh industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron Automation and Safety |
| Category | Safety Products |
| Part Number | MS4800S-20-0920-R |
| Subcategory | Safety Light Curtains |
| Series | MS4800 Series |
| Type | Receiver Unit (Light Curtain) |
| Detection Capability | 20 mm (Finger/Hand Protection) |
| Protective Height | 920 mm |
| Number of Beams | 92 |
| Beam Pitch | 10 mm |
| Operating Range | 0.3 m to 20.0 m |
| Voltage Supply | 24 VDC |
| Power Consumption | Model-dependent (typically <10 W) |
| Features | Blanking, Receiver Only |
| Light Source | Infrared LED (from emitter counterpart) |
| Response Time | Typically <20 ms |
| Enclosure Rating | IP65 (Dust Tight, Water Resistant) |
| Housing Material | Aluminum Extrusion with Polycarbonate Lens Cover |
| Connection Type | M12 or Quick Disconnect (model-dependent) |
| Mounting Type | Bracket or Frame Mount |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Protection Type | Finger/Hand Detection |
| Standards Compliance | EN61496-1, EN61496-2, UL, CSA |
| Product Status | Obsolete |
| Application | Machine Guarding, Presses, Robotics, Safety Control Systems |
| Country of Origin | Japan |
| Weight | Approx. 3.2 lbs (1.45 kg) |
Information About MS4800S-20-0920-R
The MS4800S-20-0920-R is part of the Omron MS4800 Series, a trusted range of safety light curtains engineered for hand and finger protection in machine safety applications. This receiver-only model provides 20 mm object detection across a 920 mm sensing area, making it ideal for guarding press machines, assembly lines, and robotic cells. Featuring blanking functionality, it allows for temporary beam suppression to accommodate workpiece entry without triggering a safety stop. With a rugged IP65 enclosure, wide 0.3–20 m operating range, and compatibility with MS4800 emitters, this unit delivers dependable performance and easy integration into safety control systems. Designed to meet international safety standards, it provides a proven solution for safeguarding personnel in automated operations.
Key Features:
- Receiver-Only Unit: Designed to pair with a matching MS4800 emitter for complete light curtain functionality.
- Fine Detection Resolution: 20 mm capability provides finger and hand protection at machine access points.
- Blanking Functionality: Allows selective beam deactivation for flexible protection zones.
- Wide Sensing Range: Operates reliably from 0.3 m to 20 m, accommodating various machine layouts.
- High Beam Density: 10 mm beam pitch ensures tight detection coverage across the 920 mm protective height.
- Rugged IP65 Housing: Dust-tight and water-resistant for demanding industrial environments.
- 24 VDC Operation: Compatible with standard machine safety power systems.
- Global Compliance: Meets international safety and performance standards for machine guarding.
The MS4800S-20-0920-R delivers the reliability and precision required for personnel protection and machine safety in automated industrial environments.
