MS4800S-30-0760 | Omron Light Curtain
- Regular price
- $3,150.00
- Sale price
- $3,150.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MS4800S-30-0760
Description
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
Safety Systems
|
| Part Number | MS4800S-30-0760 |
| Subcategory | Light Curtain |
| Primary Type | Photoelectric |
| Series | MS4800 Series |
| Standards | CSA, CE, cUL, TUV |
| Supply Voltage | 24 V DC |
| Weight | 12.00 lbs |
Information About MS4800S-30-0760

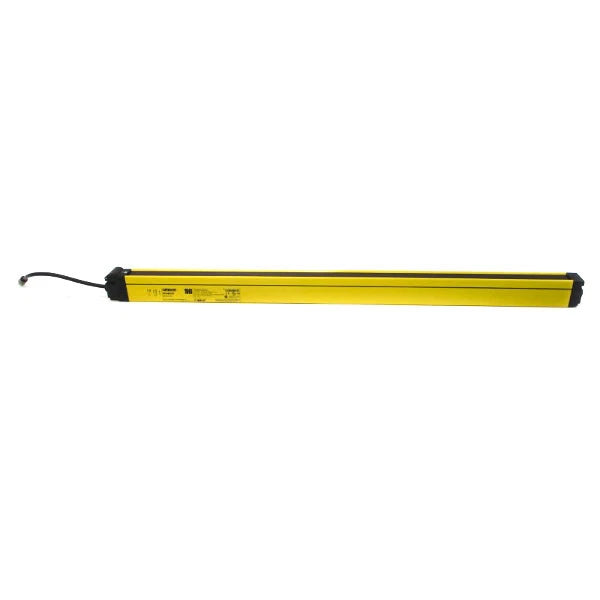

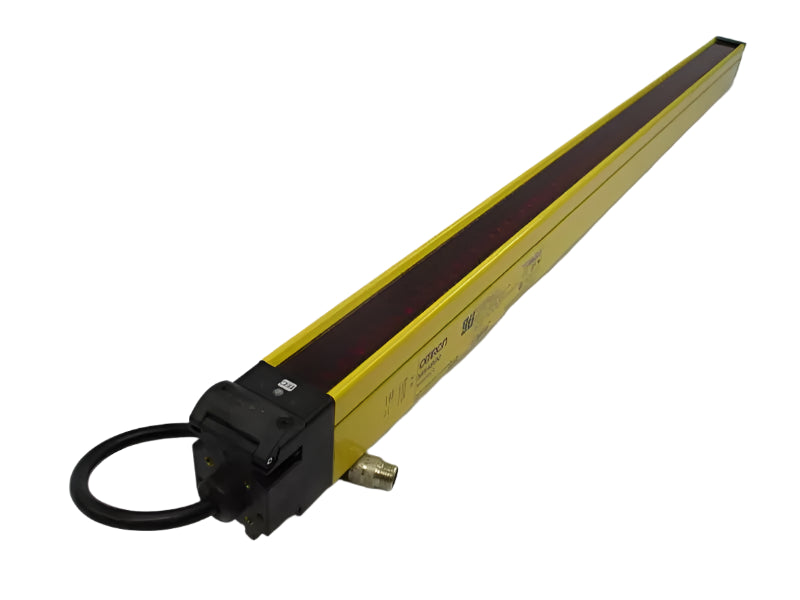

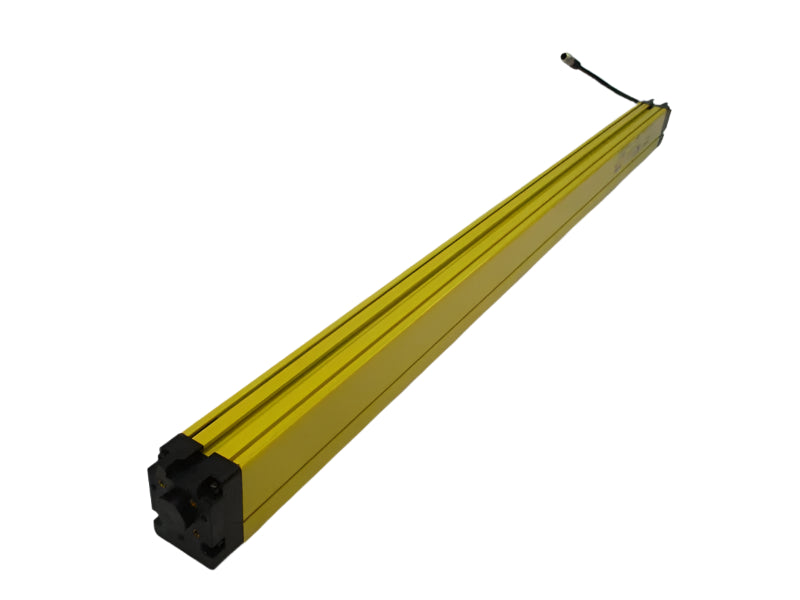

The MS4800S-30-0760 is a Type 4 safety light curtain from Omron’s MS4800S series, engineered for safeguarding personnel in high-risk industrial environments. With a protective height of 760 mm and 30 mm beam resolution, it is tailored for hand and arm detection across machinery openings. Designed as a standalone, basic-function model, it simplifies installation and maintenance through DIP-switch configuration—no external controller required. Although now classified as obsolete, it remains a trusted solution for legacy safety systems that demand high reliability and compliance with international safety standards.
Key Features:
- Reliable Machine Safeguarding: Provides finger/hand protection in compliance with Category 4, SIL 3, and Performance Level e safety requirements. Ideal for presses, robotic cells, and other hazardous zones.
- 760 mm Protective Height: Incorporates 38 detection beams spaced at 30 mm intervals, offering full-coverage detection for hand-level intrusion across medium-height machinery openings.
- Extended Sensing Range: Operates over distances from 0.3 m up to 20 m, allowing flexible placement on both compact and large-scale installations.
- Standalone Configuration: DIP switch–based setup eliminates the need for a programmable display module (PDM), streamlining commissioning and reducing cost.
- Durable IP65 Housing: Constructed with 3 mm-thick aluminum for vibration resistance and environmental sealing, ensuring long service life in industrial environments.
- Individual Beam Indicators (IBI): Visual alignment aids on the receiver end simplify beam setup and fault diagnosis without external tools or software.
- Basic Fixed Blanking Support: Built-in SB1 function enables fixed blanking of selected beams to accommodate fixed obstructions within the protected zone.
The MS4800S-30-0760 remains a dependable and robust safety light curtain for environments where Omron’s legacy MS4800S systems are already deployed. Its straightforward functionality, rugged design, and continued aftermarket presence make it a valuable asset for safety compliance in long-serving automation systems.
