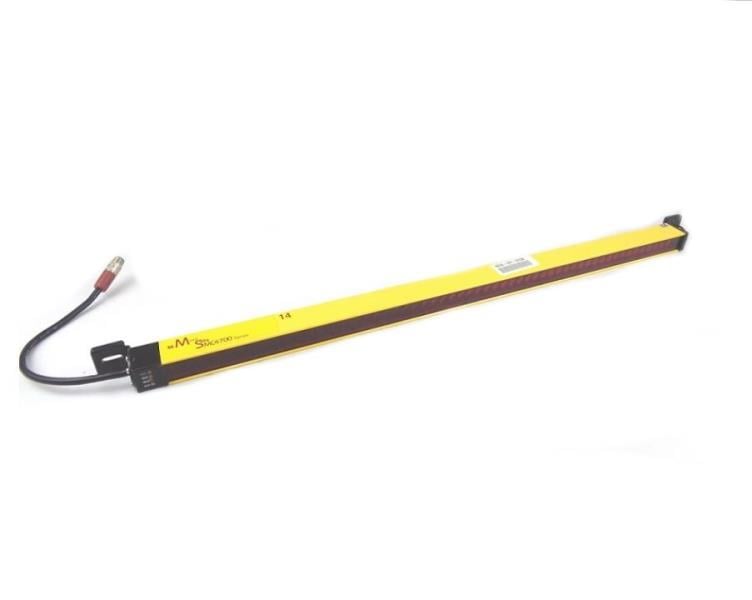

MS4800S-30-1240-R | Omron Safety Light Curtain, 30 mm Detection, 1240 mm Height, Receiver-Only
- Regular price
- $3,334.00
- Sale price
- $3,334.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MS4800S-30-1240-R
Description
The Omron MS4800S-30-1240-R Safety Light Curtain is a high-performance safety sensor designed to detect hand and arm intrusion in industrial machinery applications. With a 30 mm detection capability and a 1240 mm protective height, it provides reliable operator protection and machine shutdown functionality. The MS4800S-30-1240-R operates at 24 VDC and is rated IP65 for dust-tight and water-resistant performance in demanding environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron Automation and Safety |
| Category | Safety Products |
| Part Number | MS4800S-30-1240-R |
| Subcategory | Safety Light Curtain |
| Series | MS4800 |
| Manufacturer | Omron |
| Product Type | Receiver-only light curtain |
| Detection Capability | Hand/arm – 30 mm resolution |
| Protective Height | 1240 mm |
| Number of Beams | 62 |
| Beam Pitch | 20 mm |
| Operating Range | 0.3 m to 20.0 m |
| Features | Blanking function, receiver-only configuration |
| Ingress Protection | IP65 (dust-tight and water-resistant) |
| Supply Voltage | 24 VDC |
| Operating Temperature Range | -10°C to +55°C |
| Response Time | < 20 ms (typical, model dependent) |
| Safety Category | Type 4 / Category 4 (EN/IEC 61496-1, ISO 13849-1) |
| Housing Material | Aluminum extrusion with polycarbonate lens cover |
| Mounting Type | Bracket or frame mount |
| Packaging | Bulk |
| Part Status | Obsolete |
| Weight | 3.8 lb (1.7 kg) |
Information About MS4800S-30-1240-R
The MS4800S-30-1240-R is part of Omron’s MS4800 Series of safety light curtains, designed for Category 4 machine safety applications in accordance with ISO 13849-1 standards. This model features a receiver-only configuration and offers a 30 mm resolution for hand and arm detection. It includes 62 beams spaced at a 20 mm pitch, providing a total protective height of 1240 mm and an operating range from 0.3 m to 20.0 m. Equipped with advanced blanking functions, the MS4800S-30-1240-R allows selective beam deactivation for applications where fixed obstructions are present. Built for durability, the light curtain offers robust environmental resistance and is ideal for safeguarding presses, robotic cells, and automated machinery.
Key Features:
- Hand/Arm Detection: 30 mm resolution ideal for upper-limb safety applications.
- Extended Protective Height: 1240 mm coverage with 62 beams for large-area protection.
- Receiver-Only Configuration: Designed for integration into multi-unit safety systems.
- Wide Operating Range: Detects interruptions across distances from 0.3 m to 20.0 m.
- Advanced Blanking Function: Allows selected beam deactivation to accommodate stationary objects.
- Rugged IP65 Protection: Dust-tight and water-resistant for industrial use.
- 24 VDC Operation: Compatible with standard industrial power systems.
- Category 4 Safety Compliance: Meets EN/IEC 61496-1 Type 4 and ISO 13849-1 standards for machine safety.
The MS4800S-30-1240-R delivers the reliability and precision required for high-level personnel protection in automated manufacturing environments.
