MS95-DL| Gamewell-FCI Addressable XP95 Dual-Action Manual Pull Station with Key
- Regular price
- $655.00
- Sale price
- $655.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MS95-DL
Description

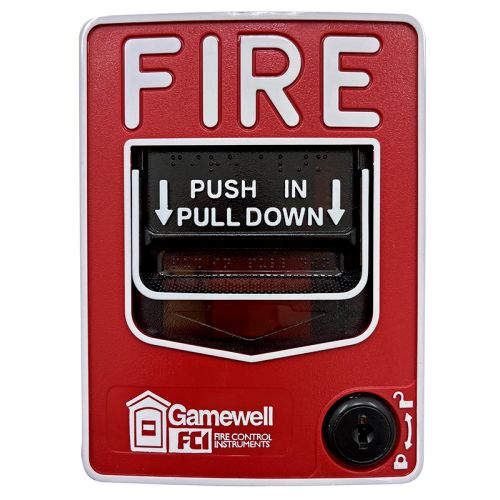

The Gamewell-FCI MS95-DL is a dual-action, addressable XP95 manual pull station designed for compatibility with Gamewell-FCI 600 Series Fire Alarm Control Panels. Featuring a built-in XP95 interface, it enables up to 126 stations per loop, with precise addressability for fast fire personnel response. Its durable construction, ADA-compliant operation, and clear visual indicators ensure reliability in demanding fire safety applications.
Technical Specifications
| Condition | New |
| Brand | Gamewell-FCI |
| Category | Fire Safety |
| Part Number | MS95-DL |
| Subcategory | Manual Pull Station |
| Type | Addressable, Dual Action |
| Compatible Systems | Gamewell-FCI 600 Series FACPs |
| Interface | XP95 Addressable |
| Stations per Loop | Up to 126 |
| LED Indicator | Bi-color (flashing normal, steady red alarm) |
| Alarm Indication | Handle latches with “Activated” label |
| Mounting Options | Semi-flush or surface mount; supports single-gang, double-gang, or 4" square boxes |
| Optional Accessories | BG-TR Trim Ring, SB-IO Surface Backbox |
| Connections | Captive screw terminals (accepts up to 12 AWG / 3.25 mm²) |
| Accessibility | Key reset, ADA 5 lb. pull force, Braille text |
| Certifications | UL Standard 38 |
| Weight | 0.3 lbs |
| Production Status | Active |
Information About MS95-DL
The MS95-DL is part of the Gamewell-FCI MS95-L Series, a state-of-the-art line of single- and dual-action XP95 pull stations. With its integrated XP95 addressable interface, the unit communicates directly with 600 Series FACPs, allowing the system to identify the exact location of an alarm. Designed for flexibility, it supports semi-flush or surface mounting on standard outlet boxes and can be installed with an optional trim ring for a finished look. The station incorporates a smooth dual-action mechanism, built-in LED status indication, and key-reset functionality, making it both user-friendly and maintenance-friendly.
Key Features:
- Addressable Design: Integrates with Gamewell-FCI 600 Series FACPs, supporting up to 126 devices per XP95 loop.
- Dual-Action Operation: Requires two motions to activate, reducing the risk of accidental alarms.
- Built-In LED Indicator: Bi-color LED flashes during normal operation and latches solid red when in alarm.
- Durable Construction: Highly visible housing with textured finish and ADA-compliant 5 lb. pull force.
- Clear Alarm Indication: Handle latches in the down position with “Activated” displayed after use.
- Flexible Mounting: Fits single-gang, double-gang, or 4-inch square boxes; compatible with SB-IO surface backbox and optional BG-TR trim ring.
- Maintenance-Friendly: Can be opened without triggering an alarm; captive screw terminals for easy wiring.
- Accessibility: Braille text imprinted on the handle.
- Certified: Meets UL Standard 38 requirements for manually actuated signaling boxes.
