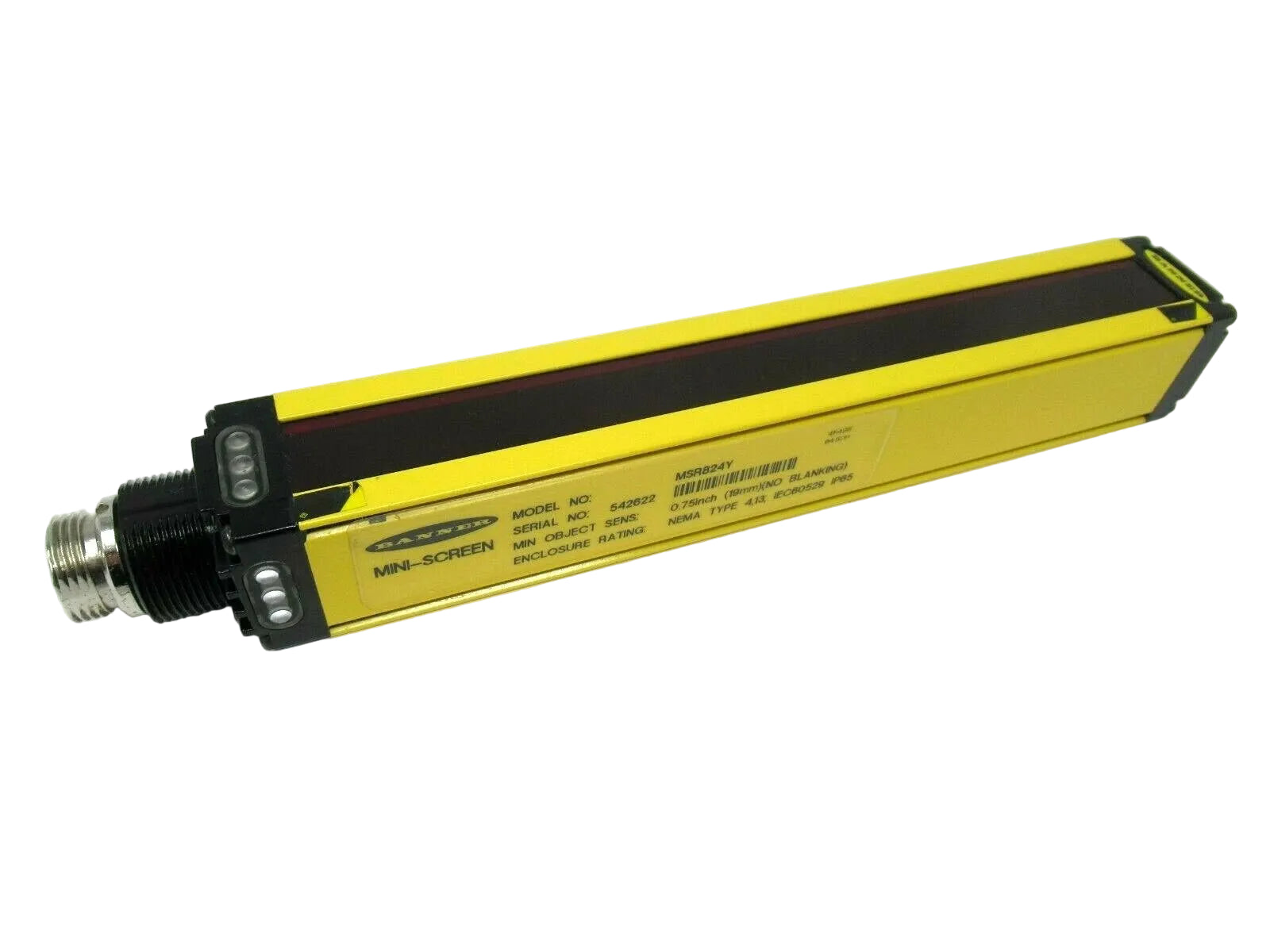

MSR824Y | Banner Engineering MINI-SCREEN Light Curtain Receiver 215 mm
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MSR824Y
Description
The Banner Engineering MSR824Y is a MINI-SCREEN light curtain receiver designed for industrial machine guarding applications. It detects interruptions in an infrared light beam field to help monitor access to hazardous areas. The receiver operates as part of an emitter/receiver safety system.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | MSR824Y |
| Subcategory | Light Curtain |
| Series | MINI-SCREEN |
| System Type | Receiver |
| Defined Area Height | 215 mm |
| Number of Beams | 16 |
| Resolution | 38 mm |
| Maximum Operating Range | 9 m |
| Supply Voltage | 24 VDC |
| Response Time | Up to 48 ms |
| Enclosure Rating | IP65 / NEMA 4, 13 |
| Housing Color | Yellow |
| Connection Type | Quick Disconnect |
| Mounting Orientation | Vertical |
| Product Status | Obsolete |
| Weight | 5 lbs |
Information About MSR824Y
The MSR824Y is a receiver unit from the Banner Engineering MINI-SCREEN safety light curtain series. It is designed to work with a compatible emitter to form an optoelectronic protective device for industrial automation environments. The unit features a compact yellow housing and a defined sensing height suitable for machinery access protection. This model has been marked as obsolete by the manufacturer but remains in use within existing safety installations.
Key Features:
-
MINI-SCREEN receiver unit: Designed for use with matching emitter
-
Defined sensing height: Covers a 215 mm protected area
-
Multi-beam detection: Uses 16 infrared beams for object detection
-
Medium sensing range: Supports operation up to 9 meters
-
Industrial enclosure rating: Suitable for harsh environments
-
24 VDC operation: Compatible with standard industrial power systems
-
Quick-disconnect interface: Simplifies installation and replacement
The MSR824Y delivers the reliability and precision required for industrial safety light curtain systems.
