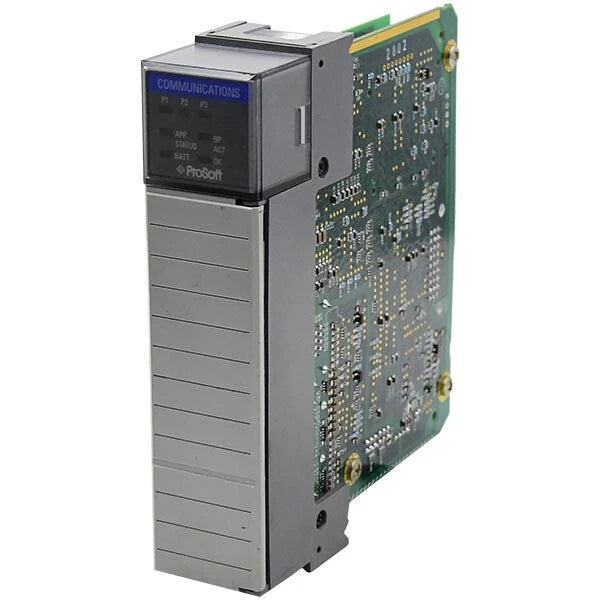

MVI46-DFNT | ProSoft Technology Communication Module
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MVI46-DFNT
Description
The ProSoft MVI46-DFNT is a communication module for Allen-Bradley SLC 500 PLCs, enabling seamless connectivity between the SLC processor and Ethernet/IP or Modbus TCP/IP networks.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | ProSoft Technology |
| Category |
PLCs and Accessories
|
| Part Number | MVI46-DFNT |
| Subcatecory |
PLC Expansion Modules
|
| Backplane Current Load | 800 ma @ 5V (from backplane) |
| Compatible Platform | SLC500 |
| No. of Ports | Three (3) ports; CFG Port (CFG) / Configuration Connector / Ethernet I/P |
| Module Width | Single Slot |
| Operating Shock | 30 g |
| Operating Vibration | 5 g @ 10…500 Hz |
| Isolation Voltage | 50V (continuous), Basic Insulation Type, Fieldbus to system |
| Relative Humidity | 5% to 95% (non-condensing) |
| Data Transfer Type | Ladder Logic |
| SLC Registers | 4000 max. |
| User-defined Commands | 100 max. |
| Interface | 10/100 MB Ethernet-compatible |
| Weight | 0.45 kgs |
Information About MVI46-DFNT
The ProSoft MVI46-DFNT is an EtherNet/IP Client/Server communication module designed for Rockwell Automation's SLC 500 platform. It enables SLC processors to interface with EtherNet/IP networks using explicit messaging, facilitating seamless data exchange between the SLC and other Ethernet-enabled devices.
Key Features:
-
Compatibility: Supports SLC 5/02 and newer processors with M0/M1 file capability.
-
EtherNet/IP Communication: Provides one Ethernet port for client/server operations, allowing the module to send read/write commands to remote devices and receive commands from up to 20 servers.
-
Data Handling: Utilizes the SLC backplane for data transfer, with all data contained in the module's M1 file.
-
Configuration: Supports up to 100 user-defined commands, configurable via a text-based configuration file.
-
Diagnostics: Offers diagnostic capabilities through status data requests and command error list retrieval.
-
Pass-Through Server: Includes a pass-through server for editing and transferring SLC ladder logic over Ethernet.
-
Backplane Current Load: 800 mA @ 5 VDC
-
Operating Temperature: 0°C to 60°C (32°F to 140°F)
-
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
-
Shock: 30g operational; 50g non-operational
-
Vibration: 5 g from 10 Hz to 150 Hz
-
Relative Humidity: 5% to 95% (non-condensing)
-
Dimensions: Approximately 2 x 19 x 12.9 cm
This module is ideal for integrating SLC processors into modern Ethernet-based control systems, providing reliable and efficient communication capabilities.
