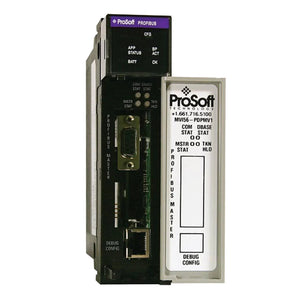

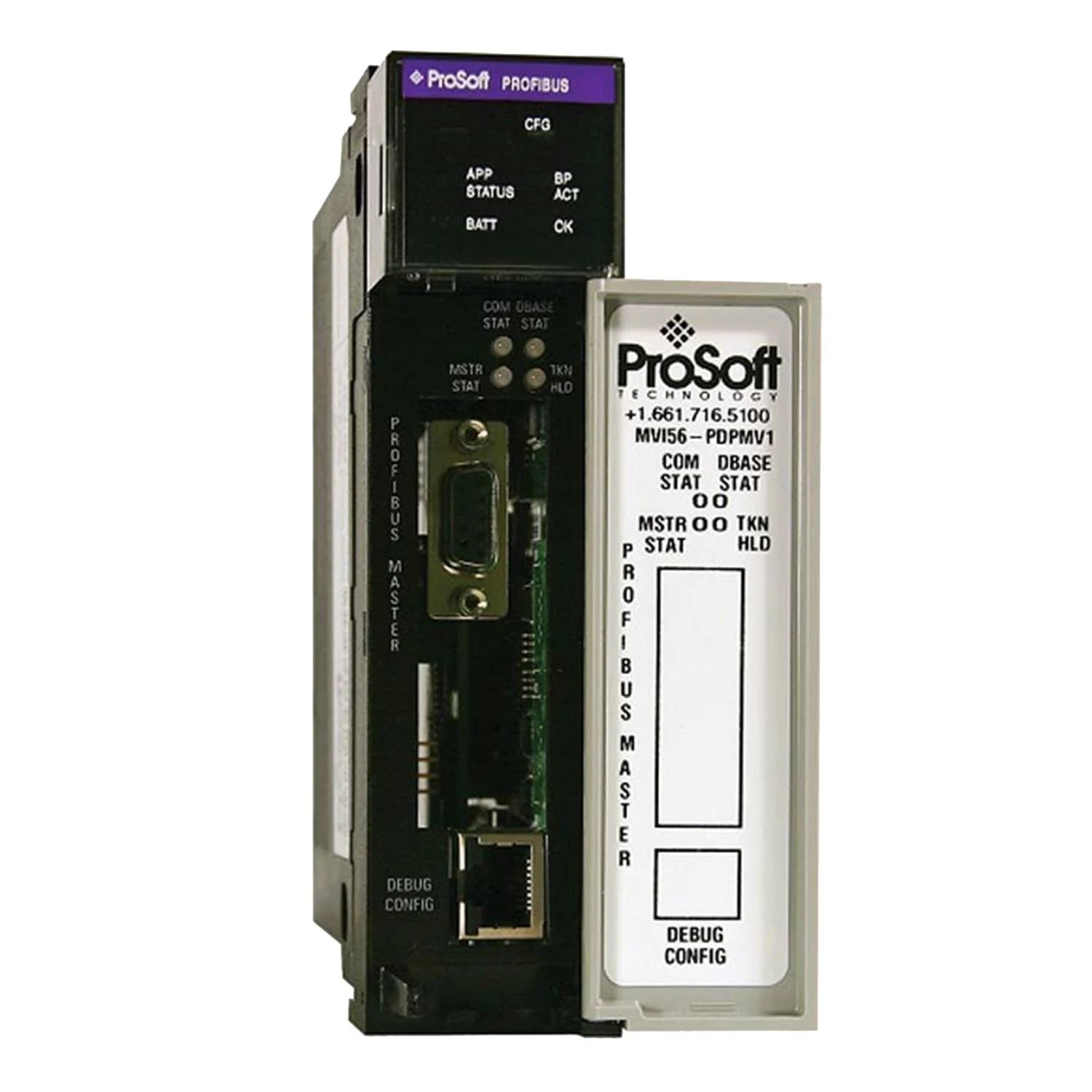

MVI56-PDPMV1 | ProSoft PROFIBUS DP-V1 Master Network Interface Module
- Regular price
- $2,909.00
- Sale price
- $2,909.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MVI56-PDPMV1
Description
The ProSoft MVI56-PDPMV1 is a high-performance PROFIBUS DP-V1 Master communication module designed for use with Allen-Bradley ControlLogix systems. It enables ControlLogix processors to seamlessly communicate with PROFIBUS-enabled devices, providing a powerful interface for industrial automation and control.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | ProSoft |
| Category |
PLCs/Machine Control
|
| Part Number | MVI56-PDPMV1 |
| Subcategory | PLC Module/Rack |
| Slot Requirement | Single-slot in 1756 chassis |
| Power Requirement | 800 mA @ 5VDC, 3 mA @ 24VDC |
| Baud Rate | Up to 12 Mbps |
| Debug/CFG Port | RS-232, RJ45 to DB-9M cable included |
| Temperature Range | Operating: 0°C to 60°C; Storage: -40°C to 85°C |
| Shock Resistance | 30 g operational; 50 g non-operational |
| Vibration | 5 g from 10 Hz to 150 Hz |
| Humidity | 5% to 95% (non-condensing) |
| LED Indicators | Module, Backplane, Application, Serial/Error |
| Included Accessories | RS-232 config cable, RJ45 to DB-9M cables |
| Standards | RoHS, CE compliant |
| Weight | 1.50 lbs |
Information About MVI56-PDPMV1
The MVI56-PDPMV1 module is a single-slot ControlLogix-compatible PROFIBUS DP-V1 Master, offering communication speeds of up to 12 Mbps. It operates at 24 VDC and is built for robust data exchange between Rockwell Automation controllers and PROFIBUS networks. The module supports both cyclic and acyclic communication and features integrated diagnostic tools and LED indicators to monitor system status in real time. Designed to function in temperatures from 0°C to 60°C, it also withstands vibration, shock, and wide humidity conditions. With built-in serial and configuration ports, the module supports RS-232 configuration, CIPConnect® Ethernet routing, and is shipped with required DB9-to-RJ45 and RS-232 cables for immediate deployment.
Key Features:
- High-Speed Communication: Supports PROFIBUS DP-V1 Master protocol with baud rates up to 12 Mbps.
- ControlLogix Integration: Single-slot module that installs directly into any 1756 ControlLogix rack.
- Flexible Configuration: RS-232 debug/configuration port with included DB9 to RJ45 cable; CIPConnect® routing supported.
- Environmental Durability: Operates in industrial temperatures (0°C to 60°C) and resists shock, vibration, and high humidity.
- Comprehensive Diagnostics: Includes module, application, and backplane status indicators; supports real-time serial activity/error reporting.
- Versatile Power Compatibility: Draws 800 mA @ 5VDC and 3 mA @ 24VDC from the ControlLogix backplane.
- Robust Hardware Design: Withstands 30g operational/50g non-operational shock and 5g vibration.
- Plug-and-Play Ready: Includes all necessary communication cables for immediate configuration and use.
The MVI56-PDPMV1 delivers reliable and scalable PROFIBUS Master functionality within ControlLogix systems, empowering industrial automation with seamless multi-device connectivity.
