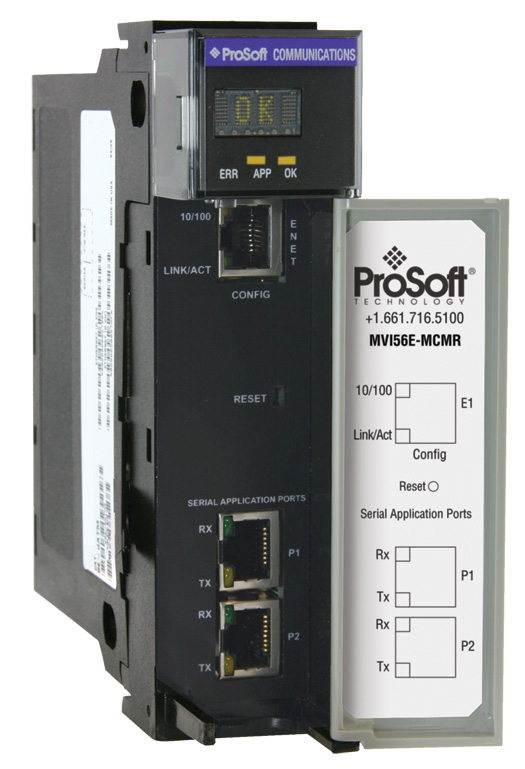

MVI56E-MCMR | Allen Bradley Master/Slave Communications Interface Module
- Regular price
- $3,814.00
- Sale price
- $3,814.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MVI56E-MCMR
Description
The Allen-Bradley MVI56E-MCMR Master/Slave Communications Interface Module enables ControlLogix systems to communicate with Modbus devices in both master and slave modes. It provides a reliable solution for integrating Modbus RTU and TCP/IP networks into ControlLogix-based automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category |
PLCs and Accessories
|
| Part Number | MVI56E-MCMR |
| Subcategory |
PLC Expansion Modules
|
| Weight | 0.52 kgs |
| Compatible Rack | 1756 chassis |
| Data Size | 5,000 words |
| Communication Port | One (1) RJ45 configuration port; Two (2) Serial Application ports |
| Ethernet Data Rate | 10 / 100 Mbps |
| Serial Data Rate | 110 baud to 115.2 kbps |
| LED Indicators | Module status, Battery status, Application status, Module Status |
| Operating Temperature | 32° F to 140° F (0° C to 60° C) |
| Storage Temperature | -40° F to 185° F (-40° C to 85° C) |
| Operating Shock | 30 g |
| Relative Humidity | 5% to 95% (without condensation) |
| Product Type | Enhanced Modbus Master/Slave Communications Interface Module with Reduced Data Block |
| Slot(s) | 1 |
| Rack Type | Remote |
| Baud Rate | 110 baud-115.2 kbps |
| Commands per Master Port | 100 max. |
| Shock | 30g Operational |
Information About MVI56E-MCMR
The Allen-Bradley MVI56E-MCMR Master/Slave Communications Interface Module is designed to allow ControlLogix systems to interface with Modbus devices, both in master and slave modes. It enables seamless integration of Modbus RTU and Modbus TCP/IP networks into ControlLogix-based automation systems, providing the ability to communicate with a variety of Modbus-compatible devices.
Key Features and Specifications:
- Model: MVI56E-MCMR
- Type: Master/Slave Communications Interface Module
- Compatibility: Designed for use with ControlLogix systems
- Modbus Support:
- Supports both Modbus RTU and Modbus TCP/IP protocols
- Capable of operating as a Modbus Master or Slave
- Communication Ports:
- 1 Ethernet port (Modbus TCP)
- 1 RS-232/RS-485 serial port (Modbus RTU)
- Network Connectivity:
- Ethernet: Supports Modbus TCP for high-speed network communication
- Serial: Supports Modbus RTU for serial communication with Modbus devices
- Data Handling:
- Supports up to 32,000 Modbus data points (based on system configuration)
- Configurable for both read and write operations with connected Modbus devices
- Installation:
- Slot-based module: Fits into any available slot in a ControlLogix chassis
- Easy to integrate with ControlLogix and CompactLogix systems
- Power Requirements: Powered via the ControlLogix backplane
- Programming and Configuration:
- Supports configuration through RSLogix 5000 or Studio 5000
- DeviceNet and Ethernet configuration via embedded web pages or Ethernet/IP
- Environmental Ratings:
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Humidity: 5% to 95% non-condensing
Applications:
- Modbus Integration: Ideal for systems where Modbus devices (sensors, drives, controllers) need to be integrated into ControlLogix systems
- Industrial Automation: Commonly used in manufacturing, energy, process control, and packaging systems
- Data Exchange: Facilitates efficient communication and data exchange between ControlLogix systems and Modbus-compatible devices
Benefits:
- Flexibility: Provides both master and slave capabilities, allowing easy communication in both directions
- Scalable: Capable of handling large-scale Modbus networks with up to 32,000 data points
- Seamless Integration: Easily integrates Modbus networks into ControlLogix systems, enhancing system interoperability
- Reliable Communication: Offers robust communication over both Ethernet and serial networks, ensuring reliable data exchange in demanding industrial environments
The MVI56E-MCMR module is an essential tool for seamlessly integrating Modbus RTU and Modbus TCP/IP networks into ControlLogix automation systems, offering flexibility, reliability, and scalability in industrial automation applications.
