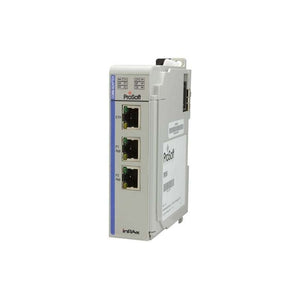

MVI69E-MBS | Allen Bradley Enhanced Communication Module

Description

The Allen-Bradley MVI69E-MBS is an Enhanced Communication Module that enables CompactLogix controllers to interface with Modbus devices. It supports both Modbus TCP and Modbus RTU protocols, allowing seamless communication between the controller and Modbus-compatible devices in industrial automation systems.

Technical Specifications

Information About MVI69E-MBS

The Allen-Bradley MVI69E-MBS is an Enhanced Communication Module designed to provide Modbus communication capabilities for CompactLogix controllers. It enables the integration of Modbus RTU and Modbus TCP devices with ControlLogix or CompactLogix systems, allowing seamless communication between the system and a wide variety of Modbus-compatible devices such as sensors, drives, and other automation equipment.

Key Features and Specifications:

• Model: MVI69E-MBS
• Series: Designed for use with CompactLogix systems (and MicroLogix 1500)
• Protocols Supported:
  • Modbus TCP/IP for Ethernet-based communication
  • Modbus RTU for serial communication (RS-232 or RS-485)
• Communication Ports:
  • 1 Ethernet port for Modbus TCP/IP communication
  • 1 RS-232/RS-485 port for Modbus RTU communication
• Data Handling:
  • Supports up to 32,000 Modbus data points
  • Facilitates both Modbus master and slave operations for flexibility in communication
  • Configurable for read and write operations to connected Modbus devices
• Installation:
  • Easily fits into a CompactLogix or MicroLogix 1500 chassis
  • Connects to the system via Ethernet (Modbus TCP) or serial communication (Modbus RTU)
• Programming Software:
  • RSLogix 5000 or Studio 5000 for programming and configuration
  • Supports integration through Ethernet/IP
• Environmental Ratings:
  • Operating Temperature: 0°C to 60°C (32°F to 140°F)
  • Storage Temperature: -40°C to 85°C (-40°F to 185°F)
  • Relative Humidity: 5% to 95% non-condensing

Applications:

• Modbus Integration: Ideal for systems that need to communicate with Modbus RTU or Modbus TCP/IP devices like PLCs, sensors, drives, and other field devices
• Industrial Automation: Perfect for applications in manufacturing, process control, material handling, and energy management
• Data Acquisition and Control: Facilitates integration with Modbus devices to acquire data, control processes, and improve system monitoring and automation

Benefits:

• Flexible Communication: Supports both Modbus TCP/IP and Modbus RTU protocols, providing a versatile solution for different network requirements
• Scalability: Can handle large networks with up to 32,000 data points, making it suitable for both small and large systems
• Easy Integration: Easily integrates with CompactLogix and MicroLogix controllers, improving system interoperability with Modbus devices
• Simplified Setup: Configurable through RSLogix 5000 or Studio 5000, offering a streamlined setup and programming process

The MVI69E-MBS module is a powerful tool for integrating Modbus RTU and Modbus TCP devices into CompactLogix systems, offering flexible, reliable communication in industrial automation environments.
