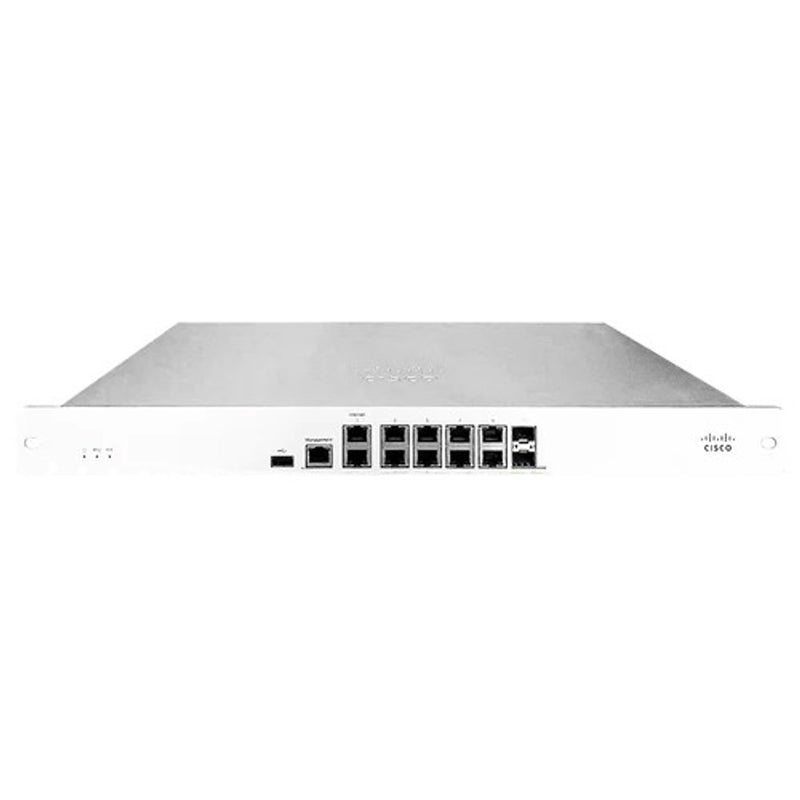

MX84-HW | Cisco Network Security Firewall Appliance
- Regular price
- $427.00
- Sale price
- $427.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

Product Description P/N: MX84-HW
Description
Cisco MX84-HW is a cloud-managed security and SD-WAN appliance designed for medium-sized branches. It offers enterprise-grade firewall protection, VPN, traffic shaping, and advanced threat management.
Technical Specifications
Condition | New/Never Used Surplus |
---|---|
Brand | Cisco |
Category |
Network Security
|
Part Number | MX84-HW |
Subcategory |
Firewall Appliances
|
Maximum Data Transfer Rate | 1000 Mbit/s |
Firewall Throughput | 500 Mbit/s |
VPN Throughput | 250 Mbit/s |
Number Of VPN Connections | 100 |
Connectivity Technology | Wired |
USB 2.0 Ports Quantity | 1 |
WAN Connection | Ethernet (RJ-45) |
Installed SFP Modules Quantity | 2 |
Storage Media Type | HDD |
HDD Capacity | 1 TB |
Rack Mounting | Yes |
Form Factor | 1U |
AC Input Voltage | 100-220 V |
AC Input Frequency | 50 - 60 Hz |
Power Consumption | 32 W |
Power Supply | 100 W |
Operating Temperature | 0 - 40 °C |
Operating Relative Humidity | 5 - 95% |
Dimensions (WxDxH) | 483 x 254 x 44 mm |
Weight | 4.1 kgs |
Information About MX84-HW
The Cisco Meraki MX84-HW is a cloud-managed security and SD-WAN appliance designed for medium-sized branch deployments. It offers enterprise-grade firewall protection, VPN capabilities, and advanced threat management features. With multiple WAN ports and integrated Layer 7 application control, it ensures secure, reliable, and high-performance connectivity.
Key Features:
-
Firewall Throughput: Up to 500 Mbps
-
VPN Throughput: Up to 250 Mbps
-
Concurrent VPN Tunnels: Supports up to 100
-
Interfaces:
-
WAN: 2 × GbE RJ45 ports
-
LAN: 8 × GbE RJ45 ports
-
SFP: 2 × GbE SFP ports
-
USB: 1 × USB 2.0 port for cellular failover
-
-
Management: Managed via the Cisco Meraki Dashboard
-
Security Features: Includes Layer 7 application firewall, intrusion detection and prevention (IDS/IPS), content filtering, and Cisco Advanced Malware Protection (AMP)
-
SD-WAN Capabilities: Supports Auto VPN and intelligent path control
-
Form Factor: 1U rack-mountable
-
Dimensions: 1.75 × 19 × 10 inches (44 × 483 × 254 mm)
-
Weight: Approximately 9 lbs (4.1 kg)
-
Power Supply: Internal 100-220V AC
-
Operating Temperature: 0°C to 40°C (32°F to 104°F)
-
Humidity: 5% to 95% non-condensing
The MX84-HW is ideal for organizations seeking a unified threat management solution with simplified deployment and centralized management.
