N-1000-IV-X | Honeywell Four-Reader Access Controller with Expanded Memory and Relay Outputs
- Regular price
- $1,364.00
- Sale price
- $1,364.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: N-1000-IV-X
Description
The Honeywell N-1000-IV-X is a four-reader access control module designed for robust, independent operation in high-security environments. Featuring expanded cardholder capacity, additional relay outputs, and distributed database architecture, it supports both standalone and networked configurations. This controller is widely used in enterprise-level access control systems requiring scalability and reliable offline performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Controls & Indicators |
| Part Number | N-1000-IV-X |
| Subcategory | Temperature/Process Control |
| Cardholder Capacity | 25,000 |
| Transaction Buffer | 6,600 |
| Reader Support | 4 readers (proximity, Wiegand, mag stripe, keypads) |
| Relays | 8 DPDT Form C, time-programmable |
| Alarm Inputs | 16 supervised + tamper + power fail |
| Communication | RS232, RS485, dial-up modem, TCP/IP (via modules) |
| Baud Rate | 38.4 Kbps (RS485), 1200-4800 baud (20 mA) |
| Time Zones | 63 programmable |
| Holiday Schedules | 32 |
| Enclosure | Hinged, locking metal cabinet |
| Power Supply | 12 VDC battery backup, 12 VDC 500 mA reader power |
| Dimensions | 14" H × 16" W × 4" D (35.56 × 40.64 × 10.16 cm) |
| Operating Temperature | 35-110°F (2-43°C) |
| Humidity | 0-85% RH, non-condensing |
| Weight | 21.00 lbs |
Information About N-1000-IV-X

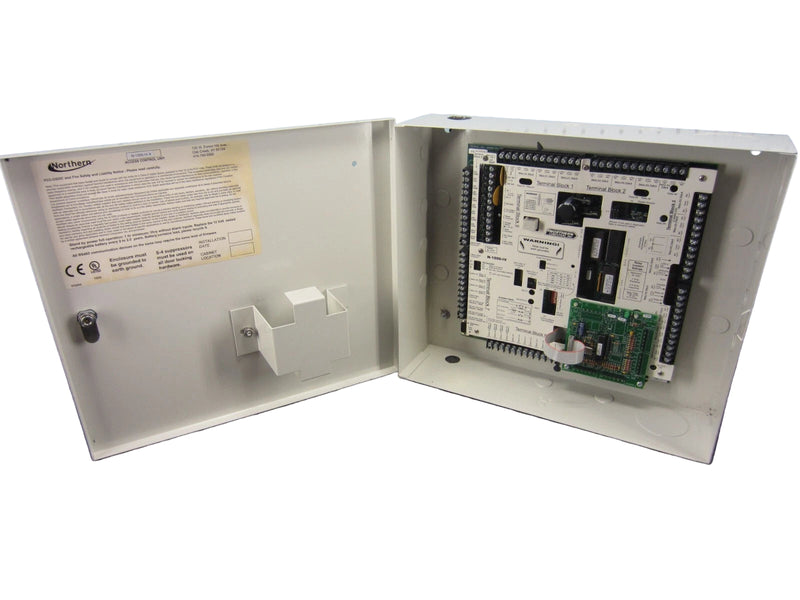

The N-1000-IV-X is part of Honeywell’s N-1000 Series controllers, engineered for access control applications ranging from small facilities to large multi-site systems. This model supports up to four card readers, 25,000 cardholders, and 6,600 stored transactions, with eight onboard DPDT Form C relays. It operates either offline or connected to a host system via RS232, RS485, dial-up modem, or TCP/IP gateway. Built into a preassembled, hinged, locking enclosure, the N-1000-IV-X includes supervised alarm inputs, time-programmable relays, and compatibility with multiple reader technologies including proximity, Wiegand, and magnetic stripe.
Key Features:
- Four-Reader Capability: Supports up to four readers with flexible configuration options.
- Expanded Memory: Stores up to 25,000 cardholder records and 6,600 transactions.
- Distributed Database: Operates independently of a host computer for uninterrupted access control.
- Multiple Communication Interfaces: RS485, RS232, dial-up, and TCP/IP support via interface modules.
- Alarm Input Support: 16 supervised inputs plus tamper and primary power fail monitoring.
- Eight DPDT Relays: Time-programmable for door control, alarms, and automation.
- Reader Technology Compatibility: Works with proximity, Wiegand, magnetic stripe, and keypad readers.
- Rugged Enclosure: Locking metal cabinet with space for battery backup.
The N-1000-IV-X delivers the flexibility, scalability, and reliability required for advanced access control deployments.
