N-ANN-RLY | Notifier Relay Module for ANN-BUS Fire Alarm Systems with Programmable Outputs
- Regular price
- $379.00
- Sale price
- $379.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: N-ANN-RLY
Description

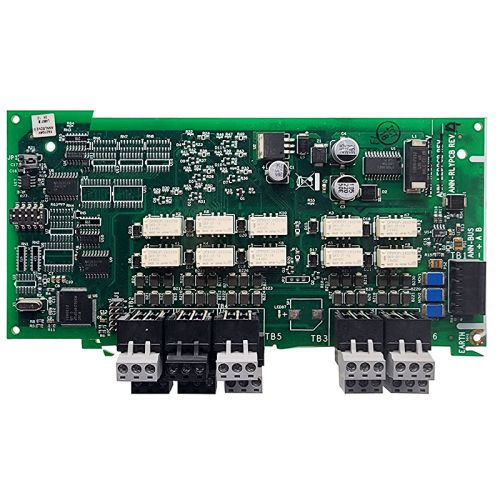

The Notifier N-ANN-RLY Relay Module is an addressable annunciator accessory designed to provide programmable relay outputs for Notifier fire alarm control panels. It allows activation of external devices such as fans, doors, or auxiliary signaling circuits in response to specific system conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Alarm Equipment |
| Part Number | N-ANN-RLY |
| Subcategory | Relay Module |
| Power Source | 24 VDC (ANN-BUS connection) |
| Standby Current | 15 mA |
| Alarm Current | 75 mA |
| Relay Contacts | Three Form-C relays |
| Contact Rating (DC) | 2 Amps @ 30 VDC (resistive) |
| Contact Rating (AC) | 0.5 Amps @ 30 VAC (resistive) |
| Communication Interface | ANN-BUS (Notifier) |
| Supervision | Power-limited and supervised connections |
| Operating Temperature Range | 32°F to 120°F (0°C to 49°C) |
| Humidity Range | 93% ± 2% RH (non-condensing at 90°F ± 3°F) |
| Mounting Type | Surface or enclosure mount |
| Usage Location | Indoor, dry environments only |
| Indicators | Status LEDs for power and relay activation |
| Compliance | UL Listed; NFPA 72 compliant |
| Weight | 0.5 lb (0.23 kg) |
Information About N-ANN-RLY
The N-ANN-RLY is a supervised relay module developed by Notifier for use with compatible fire alarm control panels that utilize the ANN-BUS communication interface. This module provides three programmable Form-C relays that can be configured for system status signals such as alarm, trouble, or supervisory events. The compact design allows mounting within or near the main fire alarm panel enclosure, simplifying installation and wiring. Operating at 24 VDC, the N-ANN-RLY ensures dependable control and monitoring in commercial, industrial, and institutional fire protection systems.
Key Features:
- Programmable Relays: Three Form-C relays configurable for alarm, trouble, or supervisory conditions.
- Supervised ANN-BUS Connection: Ensures reliable communication and fault detection with the control panel.
- Compact Design: Fits within or near the main enclosure for flexible installation.
- Power-Limited Circuits: Meets safety standards for supervised fire alarm wiring.
- Robust Contact Ratings: Supports up to 2A @ 30VDC or 0.5A @ 30VAC resistive loads.
- Low Power Consumption: 15 mA standby and 75 mA in alarm for efficient operation.
- Environmental Resilience: Operates reliably in temperatures from 32°F to 120°F (0°C to 49°C).
- Notifier Compatibility: Integrates seamlessly with ONYX and other Notifier fire alarm systems.
The N-ANN-RLY delivers the reliability and precision required for auxiliary control and relay signaling in professional fire alarm installations.
