N7K-M132XP-12L | Cisco SFP+ Switch Module
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

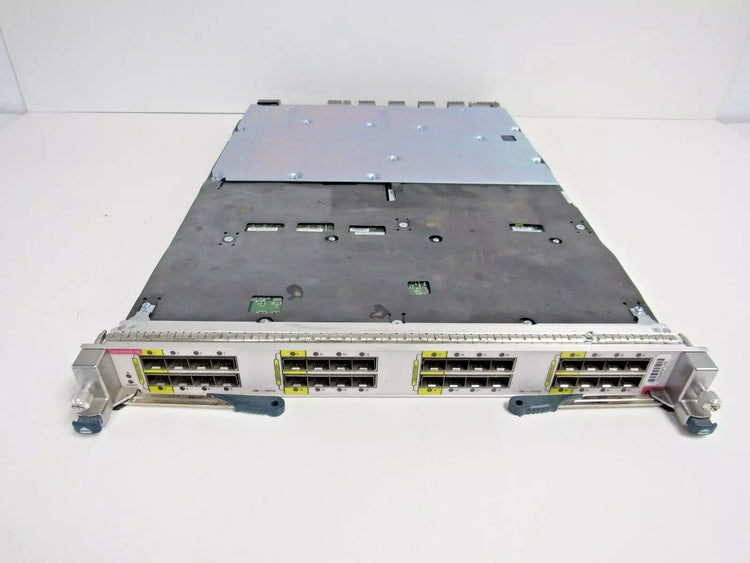

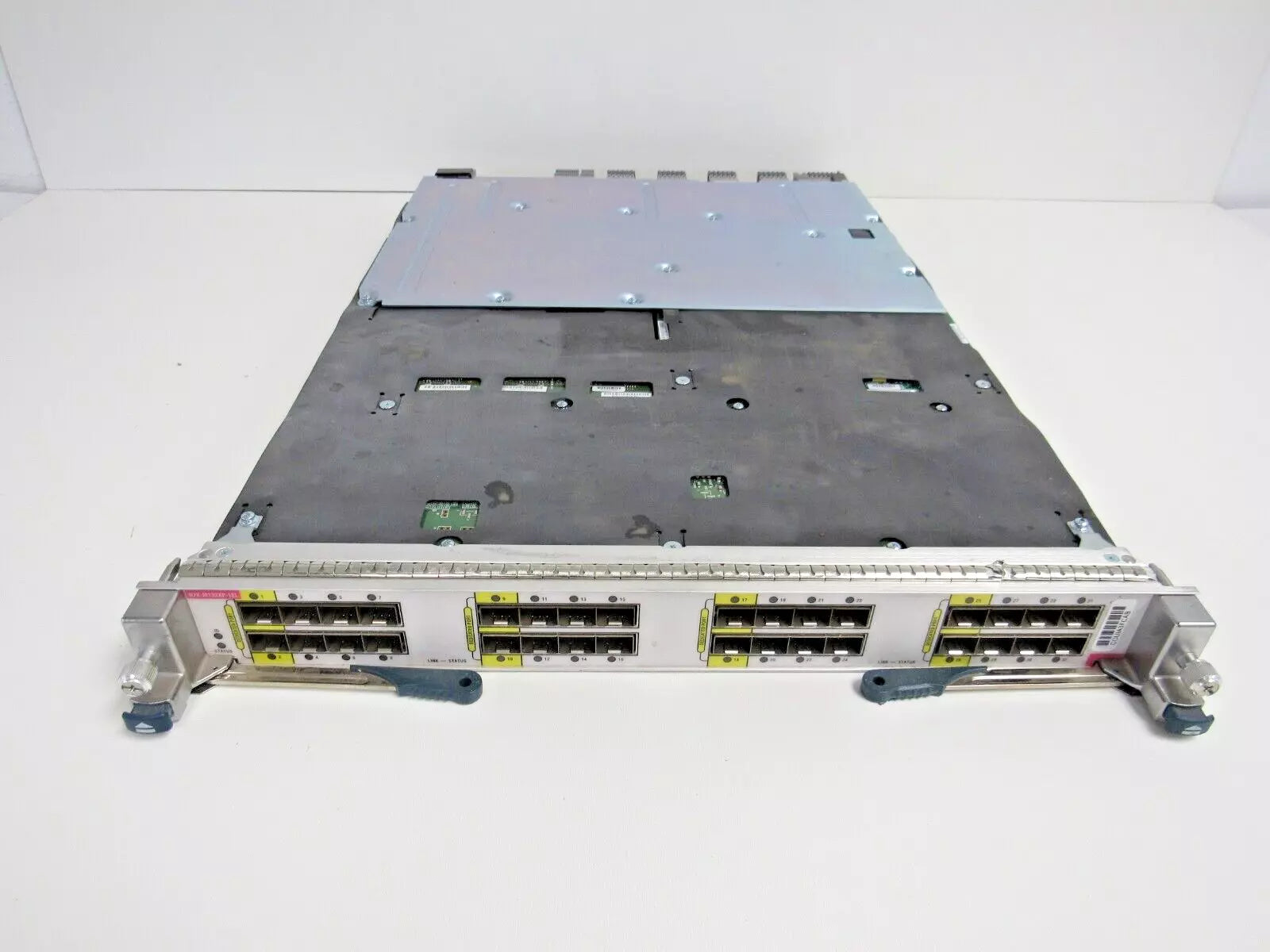

Product Description P/N: N7K-M132XP-12L
Description
The Cisco N7K-M132XP-12L is a high-density, 10 Gigabit Ethernet SFP+ switch module for the Cisco Nexus 7000 Series. It features 32 ports of 10GbE with 12 ports licensed by default (additional ports can be enabled via license), providing scalable, high-performance connectivity.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
PLCs/Machine Control
|
| Part Number | N7K-M132XP-12L |
| Subcatecory |
PC Board PLC/Add-On Board
|
| Ethernet LAN Data Rates | 10000 Mbit/s |
| Transmission Distance | 80 km |
| MAC Address Table | 128000 entries |
| Forwarding Rate | 60 Mpps |
| Bandwidth | 80 Gbit/s |
| Power Consumption | 611 W |
| Compatibility | Cisco Nexus 7000 |
| Operating Relative Humidity | 5 - 90% |
| Operating Temperature | 0 - 40 °C |
| Storage Temperature | -40 - 70 °C |
| Storage Relative Humidity | 5 - 95% |
| Operating Temperature | 32 - 104 °F |
| Weight | 15.00 lbs |
Information About N7K-M132XP-12L
The Cisco N7K-M132XP-12L is a high-density 32-port 10 Gigabit Ethernet module designed for Cisco Nexus 7000 Series switches. Equipped with the M1-XL forwarding engine, it supports advanced Layer 2 and Layer 3 features, making it ideal for mission-critical data center environments.
Key Features:
-
Ports: 32 x 10GbE SFP+
-
Forwarding Rate: Up to 60 million packets per second (Mpps) for IPv4; 30 Mpps for IPv6
-
Bandwidth: 80 Gbps to the switch fabric
-
MAC Address Table: 128,000 entries
-
Buffer Size per Port: 65 MB
-
VLAN Support: Up to 16,384 VLANs
-
Security: IEEE 802.1AE MACsec with 128-bit AES encryption on all ports
-
Management: Compatible with Cisco Data Center Network Manager (DCNM) 5.1
This module is suitable for high-performance data center applications, offering flexibility and scalability for various networking needs.
