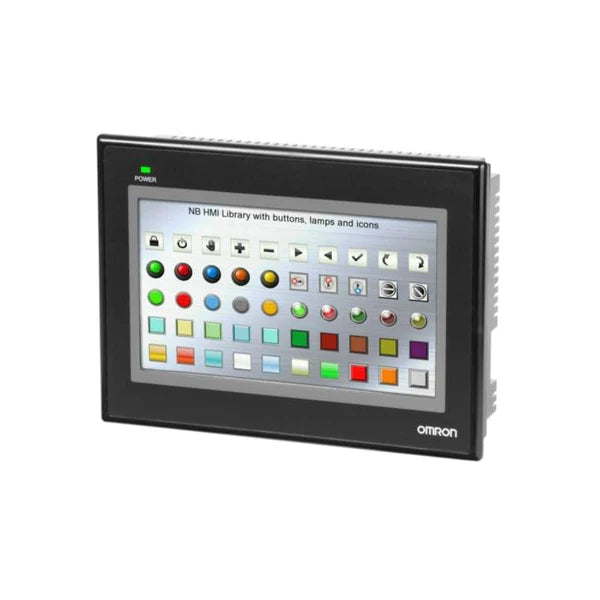

NB7W-TW01B | Omron | HMI Display
- Regular price
- $452.00
- Sale price
- $452.00
- Regular price
-
Do you need more quantity?
Product Description P/N: NB7W-TW01B
Description
The Omron Automation NB7W-TW01B HMI Display is part of the NB7W Series HMI lineup, offering a 7-inch TFT LCD touchscreen with a resolution of 800 x 480 pixels. This display module is designed to provide maximum screen size within a compact form factor, allowing for the creation of visually appealing and user-friendly HMI applications.
Featuring a 7-inch wide TFT LCD screen, the NB7W-TW01B enables the development of intuitive HMI applications in both portrait and landscape orientations. With its high-resolution display, operators can interact with the system efficiently and effectively.
Technical Specifications
Part # |
NB7W-TW01B |
Manufacturer |
OMRON |
Category |
HMI / MMI / OIT |
Subcategory |
Operator Interface NB HMI |
Screen Size |
7 inch |
Display Resolution |
800 x 480 pixels |
Power Supply |
20.4-27.6 VDC |
Memory |
128 MB |
Port Types |
Ethernet, RS-232C, USB Host |
Operating Temperature Range |
0 to +50 degrees C |
IP Rating (Front Side) |
IP65 |
Type of Display |
TFT |
Frame Color |
Black |
Ethernet Ports |
1 |
USB Ports |
2 |
RS-232 Ports |
2 |
RS-422 Ports |
1 |
RS-485 Ports |
1 |
Number of Display Colors |
65536 |
Number of Grey/Blue Scales of Display |
64 |
Front Width |
202.0 mm |
Front Height |
148 mm |
Panel Cutout Width |
191 mm |
Panel Cutout Height |
137 mm |
Built-in Depth |
46 mm |
Product Weight (Unpacked) |
1000 g |
Information About NB7W-TW01B
The Omron Automation NB7W-TW01B HMI Display is part of the NB7W Series HMI, offering a 7" TFT touch screen with a resolution of 800x480 pixels. Operating at 24VDC, this HMI display integrates a USB host and Ethernet ports within the NB Series. Its design maximizes screen size while maintaining a compact form factor, facilitating the creation of user-friendly HMI applications in either portrait or landscape orientation.
The 7-inch wide TFT LCD screen provides clear visuals and enhances user interaction with the system. With a resolution of 800 x 480 pixels, it ensures crisp and detailed display of information and graphics. The display's versatility allows developers to design applications tailored to specific user needs and preferences.
The NB7W-TW01B model stands out for its integration of Ethernet and USB host ports. This feature enables seamless project updates and data exchange over a network, enhancing system flexibility and accessibility. Users can easily connect peripherals and external devices for data transfer and system management.
With its compact design and advanced features, the NB7W-TW01B HMI Display offers an efficient solution for various industrial automation applications. Whether deployed in manufacturing environments, process control systems, or other industrial settings, this HMI display enhances operational efficiency and user experience.
The NB7W-TW01B HMI Display is engineered to withstand demanding industrial conditions, offering reliable performance in harsh environments. Its robust construction ensures durability and long-term reliability, making it suitable for continuous operation in industrial settings.
Manufacturer information
OMRON Corporation, founded in 1933, is a global leader in automation, sensing, and control technologies. Headquartered in Kyoto, Japan, OMRON delivers innovative solutions for industrial automation, healthcare, electronic components, and social systems, contributing to a safer, efficient, and sustainable world.
