NBG-10 | Notifier Fire Alarm Pull Station
- Regular price
- $53.00
- Sale price
- $53.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NBG-10
Description

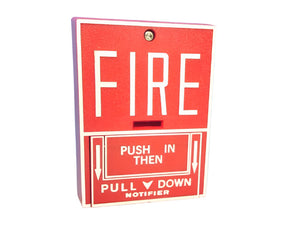

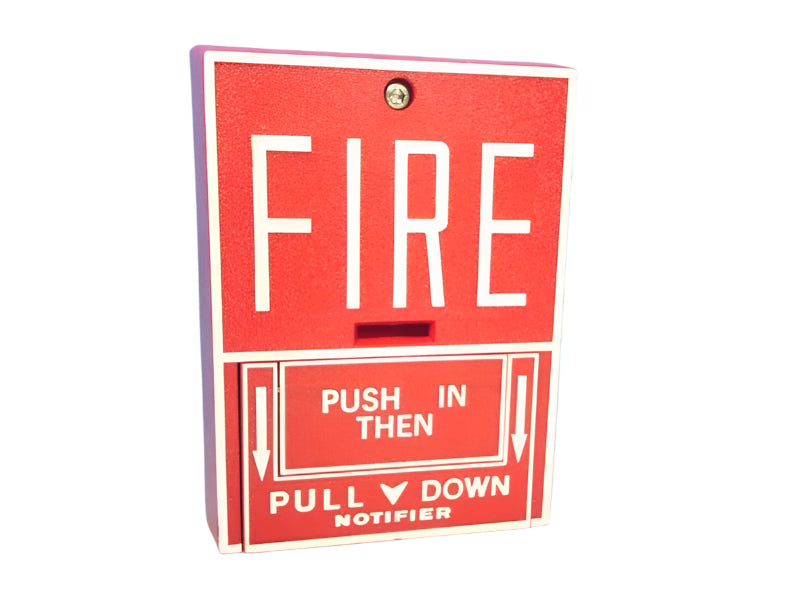

The NBG‑10 is a conventional, non‑coded, dual‑action fire alarm pull station by Notifier. It features a push‑in (or break‑tube) then pull‑down activation that latches in the down position upon use.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Safety |
| Part Number | NBG-10 |
| Subcategory | Fire Alarm |
| Device Type | Fire Alarm Pull Station |
| Alarm Type | Manual Activation |
| Coding Type | Non-Coded |
| Activation Method | Dual Action (Push-In, Pull-Down) |
| Reset Method | Manual Reset (Hex Screw or Key, model dependent) |
| Dimensions (H x W x D) | 5.50 x 4.125 x 1.375 inches |
| Construction | Red Polycarbonate Housing |
| Mounting | Semi-Flush on Standard Electrical Box |
| Contact Rating | 3 A @ 30 VAC/VDC |
| Weight | 0.85 lbs |
Information About NBG-10
The NBG-10 is part of Notifier’s legacy series of conventional fire alarm pull stations, designed for reliable manual alarm initiation in commercial and industrial settings. It features a dual-action activation method—requiring a push-in (or break-tube) followed by a pull-down—and offers robust construction in a textured red polycarbonate housing. Though now discontinued, the NBG-10 series is known for its wide range of model variants and adaptability to both indoor and outdoor applications.
Key Features:
- Dual-Action Activation: Requires push-in or break-glass followed by pull-down for deliberate alarm initiation.

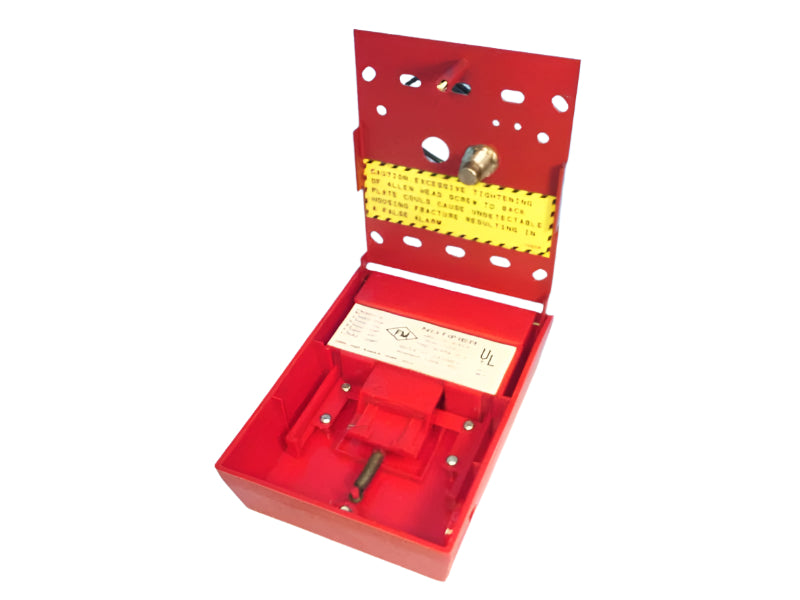

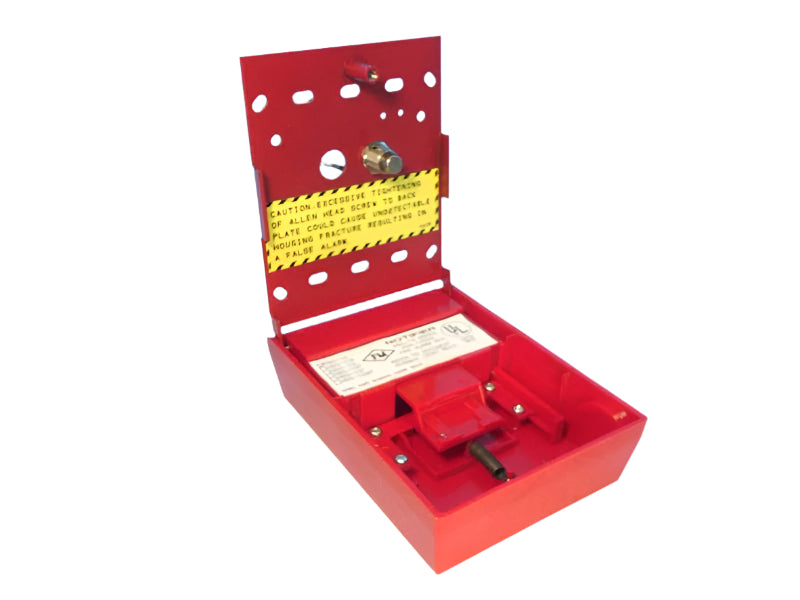

- Manual Reset Mechanism: Resets using a hex screw or key (model dependent), with the handle latching in the pulled position.
- Variant Options: Available in multiple configurations including key-lock (NBG‑10L), auxiliary switch (NBG‑10A), test/presignal (NBG‑10T/P), weatherproof (NBG‑10WP), and Spanish label (NBG‑10SP).
- Durable Construction: Molded from red LEXAN® with a textured finish for high visibility and rugged field use.

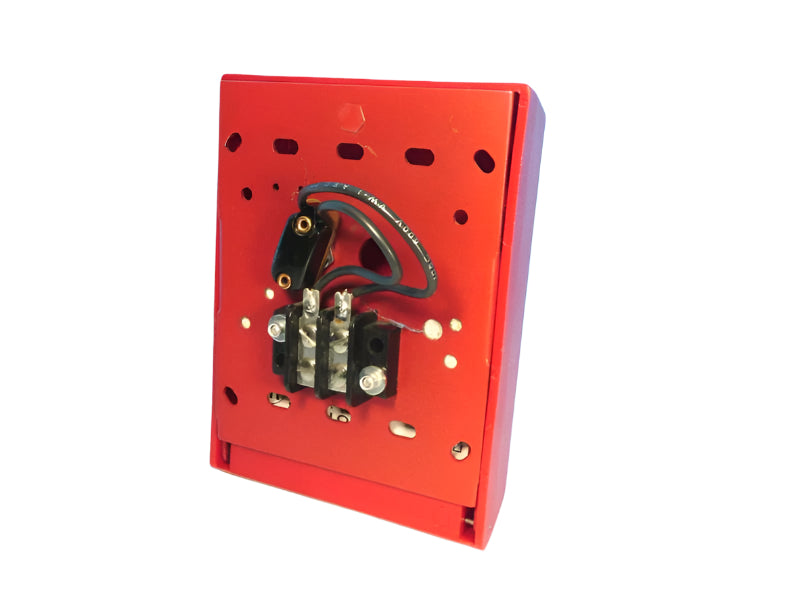

- Flexible Mounting: Designed for semi-flush or surface mounting on standard single-gang boxes or weatherproof backboxes.
- ADA Compliant: Models manufactured after 1996 comply with the 5 lb. maximum pull force requirement.
- Wide Compatibility: Functions with standard fire alarm control panel inputs and 3 A rated contacts at 30 VAC/VDC.
- Maintenance Ready: Front-accessible housing simplifies servicing and routine inspections.
The Notifier NBG‑10 provides a time-tested solution for manual fire alarm signaling and was widely used in diverse environments before being succeeded by the enhanced NBG‑12 series. It remains notable for its simplicity, reliability, and broad variant support.
