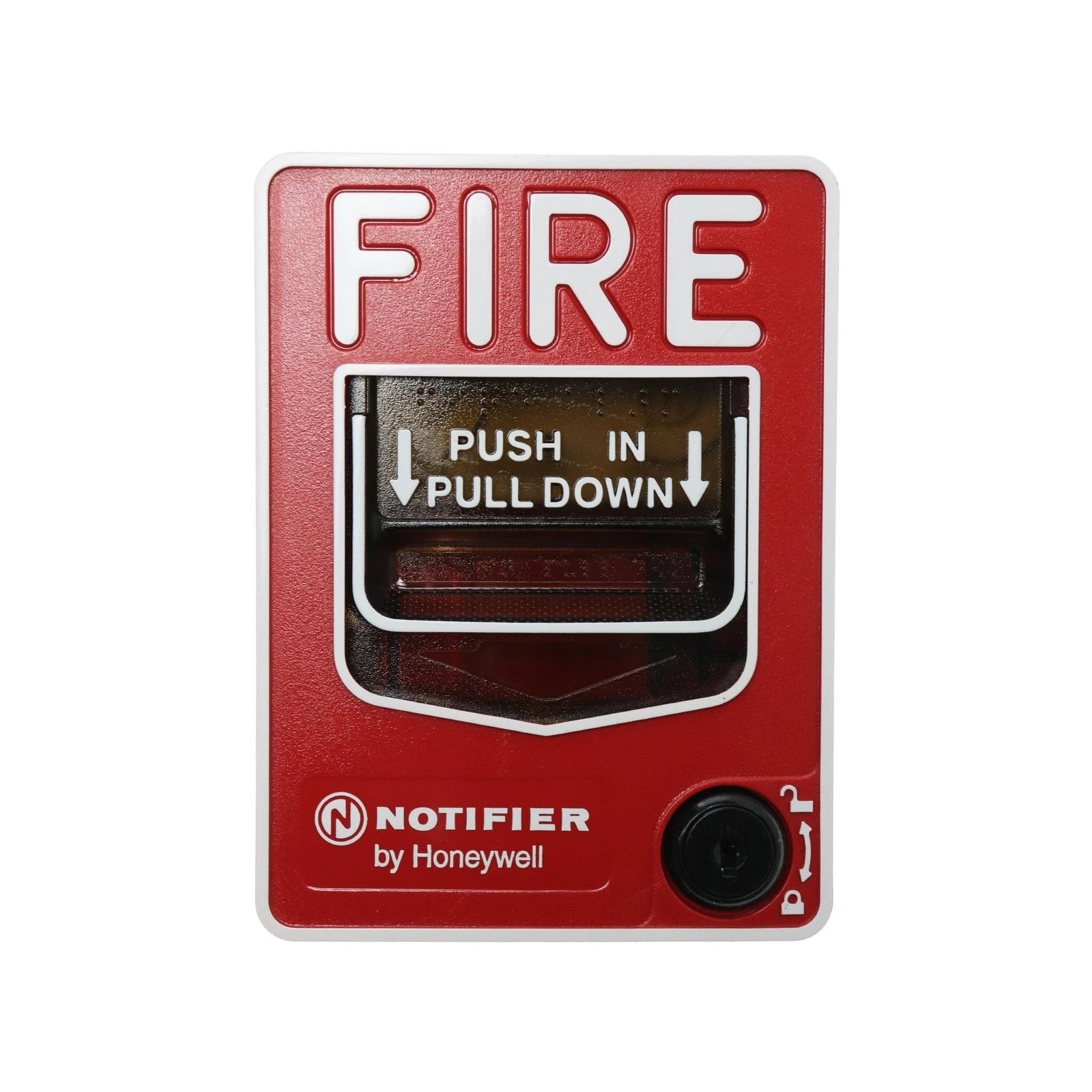

NBG-12LX | Notifier Addressable Dual-Action Manual Fire Alarm Pull Station
- Regular price
- $122.00
- Sale price
- $122.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NBG-12LX
Description
The Notifier NBG-12LX is an addressable manual fire alarm pull station designed for reliable emergency signaling in commercial fire alarm systems. This dual-action device provides secure manual alarm initiation and integrates directly with Notifier intelligent fire alarm control panels. Built for indoor use, the NBG-12LX ensures dependable operation in regulated life safety environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Alarm Devices |
| Part Number | NBG-12LX |
| Subcategory | Manual Pull Stations |
| Manufacturer | Honeywell |
| Series | NBG-12 Series: Fire Alarm Pull Stations |
| Operating Voltage | 24 VDC |
| Maximum SLC Loop Voltage | 28 VDC |
| Standby Current | 375 µA |
| Alarm Current | 5 mA |
| Construction | Polycarbonate |
| Color | Red |
| Operation | Dual-Action, Key Reset |
| Programming Method | Rotary Dials |
| Installation Location | Indoor |
| Operating Temperature Range | 32°F to 120°F (0°C to 49°C) |
| Humidity Range | 10% to 93% RH, non-condensing |
| Dimensions | 5.5 in (H) × 4 in (W) × 2 in (D) |
| Weight | 0.6 lbs |
Information About NBG-12LX
The NBG-12LX is an addressable manual pull station within the Notifier NBG-12 Series, engineered for intelligent fire alarm applications. It features a durable polycarbonate housing designed to withstand frequent use in commercial and institutional buildings. The device connects to an addressable SLC loop and supports rotary dial addressing for straightforward installation and system configuration. Designed for indoor environments, it operates reliably across a wide temperature and humidity range while maintaining low standby current consumption.
Key Features:
- Addressable SLC Interface: Communicates directly with compatible Notifier fire alarm control panels for precise device identification.
- Dual-Action Activation: Requires two deliberate actions to initiate an alarm, reducing accidental activations.
- Rotary Dial Addressing: Simplifies device addressing without the need for additional programming tools.
- Key Reset Operation: Allows authorized personnel to reset the station quickly after activation.
- Durable Polycarbonate Construction: Provides long-term reliability and resistance to wear in indoor installations.
- Low Standby Current Draw: Optimized for energy-efficient operation on addressable loops.
- Wide Environmental Tolerance: Operates consistently across specified temperature and humidity ranges.
The NBG-12LX delivers the reliability and precision required for addressable fire alarm manual activation points in life safety systems.
