NCM-F | Notifier Fiber-Optic Network Control Module for ONYX Series Fire Alarm Systems
- Regular price
- $1,184.00
- Sale price
- $1,184.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NCM-F
Description

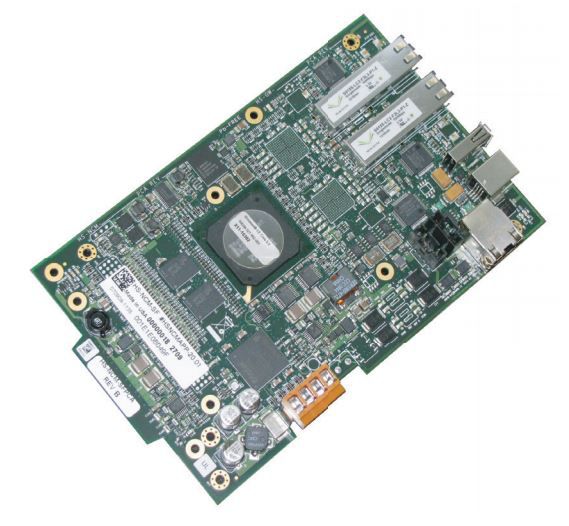

The Notifier NCM-F Network Control Module provides fiber-optic network communication for ONYX Series Fire Alarm Control Panels and annunciators. It enables high-speed, noise-immune data transfer across the NOTI•FIRE•NET™ network, ensuring reliable system integration and remote communication between multiple nodes.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Alarm Components |
| Part Number | NCM-F |
| Subcategory | Fiber-Optic Network Control Module |
| System Compatibility | NFS-640, NFS-3030, NFS2-3030, NCA, NCA-2, ONYX Series |
| Network Type | NOTI•FIRE•NET™ |
| Communication Medium | Fiber-Optic (Multimode) |
| Supported Fiber Types | 62.5/125 µm or 50/125 µm |
| Fiber Connectors | ST® Style |
| Transmission Rate | 312.5 Kbaud |
| Operation Style | NFPA Style 4 (Class B) or Style 7 (Class A) |
| Wavelength | 820 nm (compatible with standard 850 nm fiber) |
| Maximum Attenuation | 8 dB (62.5/125 µm) or 4.2 dB (50/125 µm) |
| Isolation | Optical Isolation to Prevent Ground Loops |
| Node Connections | Two Ports (TX/RX) for Fiber Interconnection |
| Function | Enables Software and Database Upload/Download |
| Compatible Accessories | MIB-F, MIB-WF, NAM-232F, NCS-F, RPT-F, RPT-WF |
| Mounting Options | CHS-4L, CHS-M2, CHS-M3, or CHS-4N Chassis |
| Compliance | UL Listed and NFPA Compliant |
| Application | Network Communication for Fire Alarm Systems |
| Weight | 0.2 lbs |
Information About NCM-F
The NCM-F is a multimode fiber-optic network control module developed by Notifier for use in ONYX Series fire alarm control systems. It allows high-speed, bidirectional data communication between control panels, repeaters, and annunciators over the NOTI•FIRE•NET™ network. Each NCM-F module supports two fiber ports (Transmit and Receive) that can interconnect nodes in either Class A or Class B network configurations. Designed for immunity to electrical interference and equipped with optical isolation, the module ensures secure data transfer and eliminates potential ground loops. Supporting standard 62.5/125 µm or 50/125 µm fiber with ST® connectors, the NCM-F provides flexible installation options and reliable integration for distributed fire alarm networks.
Key Features:
- Fiber-Optic Data Communication: Provides high-speed data transfer across NOTI•FIRE•NET™ using multimode fiber cable.
- Noise Immunity and Isolation: Optical isolation protects against electrical noise and eliminates ground loop issues.
- Dual Network Ports: Includes TX and RX ports for easy connection between nodes and repeaters in large network systems.
- Flexible Network Configuration: Supports NFPA Style 4 (Class B) and Style 7 (Class A) topologies.
- Wide Fiber Compatibility: Operates with both 62.5/125 µm and 50/125 µm multimode fiber types using ST® connectors.
- High Transmission Reliability: Regenerates data at each node for consistent signal integrity throughout the network.
- Software Connectivity: Enables database upload/download and programming via NOTI•FIRE•NET™.
- Modular Installation Options: Fits CHS-4L, CHS-M2, CHS-M3, and CHS-4N chassis for integration into control cabinets.
The NCM-F delivers the reliability and precision required for secure, high-performance communication between ONYX Series fire alarm systems over fiber-optic networks.
