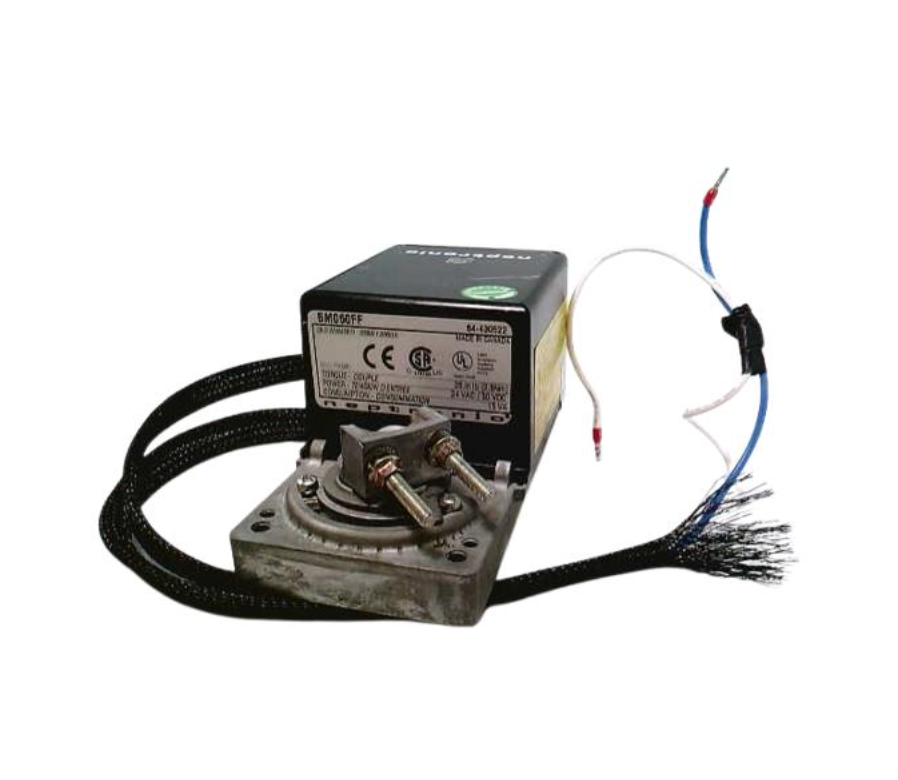

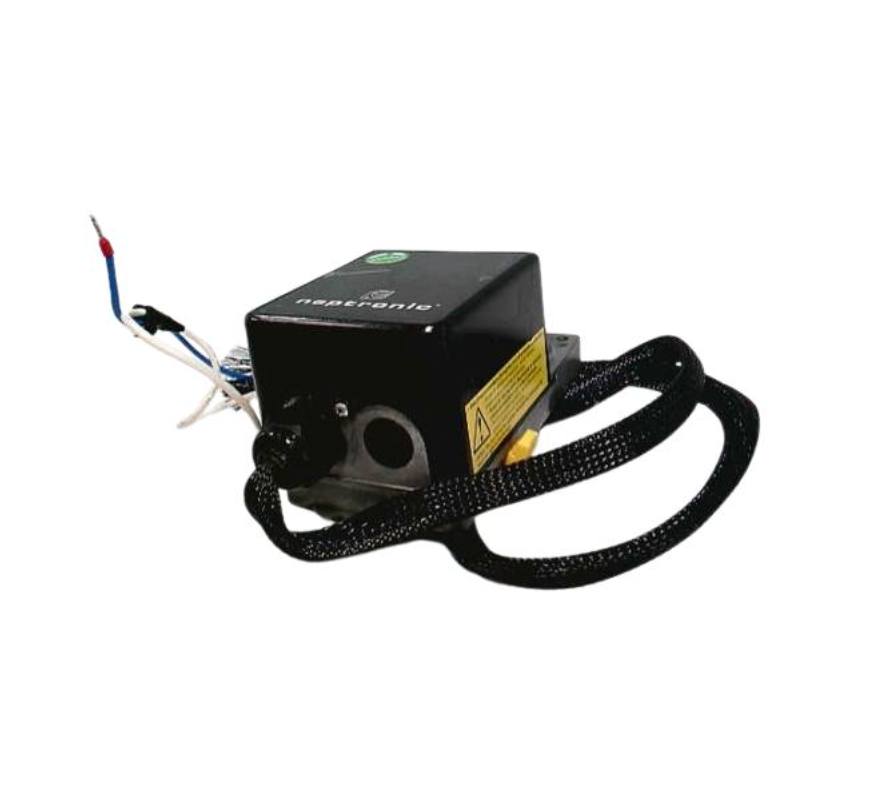

Neptronic BM060FF 25 Inch-Pound Electronic Fail-Safe HVAC Damper Actuator
- Regular price
- $525.00
- Sale price
- $525.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BM060FF
Description
The Neptronic BM060FF is a fast-acting electronic fail-safe damper actuator designed for positioning air dampers and related control devices in heating, ventilation, and air conditioning systems. It provides 25 inch-pounds (2.8 newton-meters) of torque at rated voltage, operates through 90 degrees in approximately 1.5 to 2.5 seconds, and accepts programmable analog, digital, floating, or pulse-width modulation control signals.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Neptronic |
| Category | HVAC |
| Part Number | BM060FF |
| Subcategory | HVAC Actuator |
| Series | BM Series |
| Product Type | Electronic Fail-Safe Damper Actuator |
| Fail-Safe System | Enerdrive Electronic Fail-Safe |
| Rated Torque | 25 inch-pounds (2.8 newton-meters) |
| Power Supply | 22–26 volts alternating current or 28–32 volts direct current |
| Power Consumption | 24 volt-amperes peak / 15 volt-amperes full load |
| Control Signal | Analog, Digital, Floating, or Pulse-Width Modulation |
| Position Feedback | Adjustable 4–20 milliamperes or 2–10 volts direct current |
| Running Time | 1.5 to 2.5 seconds through 90 degrees, torque dependent |
| Angle of Rotation | 0 to 90 degrees, mechanically adjustable |
| Direction of Rotation | Reversible clockwise or counterclockwise |
| Protection Rating | IP22, equivalent to NEMA Type 2 |
| Operating Temperature | -30°C to +50°C (-22°F to +122°F) |
| Weight | 3.00 lbs |
Information About BM060FF
The BM060FF is a Neptronic BM Series fast actuator incorporating the manufacturer's Enerdrive electronic fail-safe system for moving the controlled device to a predetermined position during a power interruption. Its compact construction includes an external clutch for manual adjustment, mechanical stroke adjustment, a position indicator, and provisions for mounting on heating, ventilation, and air conditioning damper shafts. The actuator operates from 22–26 volts alternating current or 28–32 volts direct current and supports programmable analog, digital, floating, and pulse-width modulation control methods for integration with different control systems. Adjustable 4–20 milliampere or 2–10 volt direct current position feedback, reversible rotation, and a mechanically adjustable 0-to-90-degree operating range provide flexibility during installation and commissioning.
Key Features:
- Electronic Fail-Safe: Uses the Neptronic Enerdrive system to provide fail-safe positioning when normal actuator power is interrupted.
- 25 Inch-Pound Torque: Produces 25 inch-pounds (2.8 newton-meters) of torque at rated voltage for damper positioning applications.
- Fast Operating Time: Travels through a 90-degree rotation in approximately 1.5 to 2.5 seconds, depending on applied torque.
- Programmable Control: Supports analog, digital, floating, and pulse-width modulation control signals for integration with different control strategies.
- Adjustable Position Feedback: Provides selectable 4–20 milliampere or 2–10 volt direct current feedback for monitoring actuator position.
- Adjustable Rotation: Supports mechanically adjustable travel from 0 to 90 degrees with reversible clockwise or counterclockwise operation.
- Manual Adjustment: Includes an external clutch that permits mechanical positioning during installation or service when the actuator is not powered.
- Environmental Protection: Provides IP22 protection equivalent to NEMA Type 2, with higher enclosure protection possible when specified watertight inlet bushings are installed.
The BM060FF delivers the reliability and precision required for fast damper positioning, electronic fail-safe operation, and heating, ventilation, and air conditioning airflow control.
