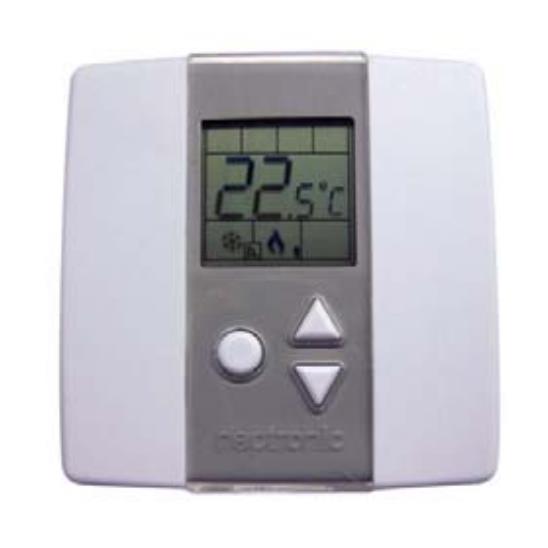

Neptronic TRO5404 Room Controller Thermostat with Four Analog Heating and Cooling Outputs
- Regular price
- $222.00
- Sale price
- $222.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TRO5404
Description
The Neptronic TRO5404 is a wall-mounted room controller thermostat designed for proportional heating and cooling control in variable air volume and other heating, ventilation, and air conditioning applications. It provides two 0–10 volt direct current heating outputs, two 0–10 volt direct current cooling outputs, and one time proportional modulation output, allowing multiple heating and cooling devices to be controlled from room temperature demand.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Neptronic |
| Category | Controls & Indicators |
| Part Number | TRO5404 |
| Subcategory | Thermostat |
| Product Type | Room Controller Thermostat |
| Heating Analog Outputs | 2 × 0–10 volts direct current |
| Cooling Analog Outputs | 2 × 0–10 volts direct current |
| Time Proportional Modulation Output | 0 or 22 volts direct current, 250 milliamperes maximum |
| Power Supply | 22–26 volts alternating current, 50/60 hertz |
| Power Consumption | 2 volt-amperes |
| Setpoint Range | 10°C to 35°C (50°F to 95°F) |
| Temperature Sensor Range | 0°C to 50°C (32°F to 122°F) |
| Temperature Control Accuracy | ±0.2°C (±0.4°F) |
| Proportional Band | Adjustable from 0.5°C to 4°C |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Protection Rating | IP30 |
| Dimensions | 3.00 × 3.00 × 1.00 inches |
| Weight | 2.09 lbs |
Information About TRO5404
The TRO5404 is a Neptronic room controller thermostat built around an electronic temperature controller with a backlit liquid crystal display and front-mounted adjustment controls. The controller operates from a 22–26 volt alternating current supply and incorporates an internal temperature sensor while also supporting selectable external 3.3-kilohm or 10-kilohm temperature sensors. It is compatible with proportional heating and cooling equipment through four 0–10 volt direct current analog outputs and provides an additional 0 or 22 volt direct current time proportional modulation output rated at 250 milliamperes maximum. Configurable proportional band, night setback, minimum and maximum setpoints, Fahrenheit or Celsius display, and lockable configuration functions allow the unit to be adapted to different room and variable air volume control applications.
Key Features:
- Four Analog Outputs: Provides two 0–10 volt direct current heating outputs and two 0–10 volt direct current cooling outputs for proportional equipment control.
- Time Proportional Modulation Output: Includes one 0 or 22 volt direct current time proportional modulation output rated at 250 milliamperes maximum.
- Adjustable Temperature Setpoint: Provides a selectable room temperature setpoint from 10°C to 35°C, equivalent to 50°F to 95°F.
- Internal or External Sensing: Supports its internal room sensor or an external 3.3-kilohm or 10-kilohm temperature sensor.
- Adjustable Proportional Band: Allows the temperature proportional band to be configured from 0.5°C to 4°C for application-specific response.
- Night Setback Function: Provides an energy-saving night setback mode with manual override for occupied and unoccupied operation.
- Backlit Display: Uses a backlit liquid crystal display to show measured temperature, operating status, heating or cooling activity, and configuration information.
- Lockable Configuration: Provides multi-level menu access and setpoint locking to prevent unauthorized or unintended adjustment.
The TRO5404 delivers the reliability and precision required for room temperature regulation, proportional heating and cooling control, and variable air volume system applications.
Description
The Neptronic TRO5404 is a wall-mounted room controller thermostat designed for proportional heating and cooling control in variable air volume and other heating, ventilation, and air conditioning applications. It provides two 0–10 volt direct current heating outputs, two 0–10 volt direct current cooling outputs, and one time proportional modulation output, allowing multiple heating and cooling devices to be controlled from room temperature demand.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Neptronic |
| Category | Controls & Indicators |
| Part Number | TRO5404 |
| Subcategory | Thermostat |
| Product Type | Room Controller Thermostat |
| Heating Analog Outputs | 2 × 0–10 volts direct current |
| Cooling Analog Outputs | 2 × 0–10 volts direct current |
| Time Proportional Modulation Output | 0 or 22 volts direct current, 250 milliamperes maximum |
| Power Supply | 22–26 volts alternating current, 50/60 hertz |
| Power Consumption | 2 volt-amperes |
| Setpoint Range | 10°C to 35°C (50°F to 95°F) |
| Temperature Sensor Range | 0°C to 50°C (32°F to 122°F) |
| Temperature Control Accuracy | ±0.2°C (±0.4°F) |
| Proportional Band | Adjustable from 0.5°C to 4°C |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Protection Rating | IP30 |
| Dimensions | 3.00 × 3.00 × 1.00 inches |
| Weight | 2.09 lbs |
Information About TRO5404
The TRO5404 is a Neptronic room controller thermostat built around an electronic temperature controller with a backlit liquid crystal display and front-mounted adjustment controls. The controller operates from a 22–26 volt alternating current supply and incorporates an internal temperature sensor while also supporting selectable external 3.3-kilohm or 10-kilohm temperature sensors. It is compatible with proportional heating and cooling equipment through four 0–10 volt direct current analog outputs and provides an additional 0 or 22 volt direct current time proportional modulation output rated at 250 milliamperes maximum. Configurable proportional band, night setback, minimum and maximum setpoints, Fahrenheit or Celsius display, and lockable configuration functions allow the unit to be adapted to different room and variable air volume control applications.
Key Features:
- Four Analog Outputs: Provides two 0–10 volt direct current heating outputs and two 0–10 volt direct current cooling outputs for proportional equipment control.
- Time Proportional Modulation Output: Includes one 0 or 22 volt direct current time proportional modulation output rated at 250 milliamperes maximum.
- Adjustable Temperature Setpoint: Provides a selectable room temperature setpoint from 10°C to 35°C, equivalent to 50°F to 95°F.
- Internal or External Sensing: Supports its internal room sensor or an external 3.3-kilohm or 10-kilohm temperature sensor.
- Adjustable Proportional Band: Allows the temperature proportional band to be configured from 0.5°C to 4°C for application-specific response.
- Night Setback Function: Provides an energy-saving night setback mode with manual override for occupied and unoccupied operation.
- Backlit Display: Uses a backlit liquid crystal display to show measured temperature, operating status, heating or cooling activity, and configuration information.
- Lockable Configuration: Provides multi-level menu access and setpoint locking to prevent unauthorized or unintended adjustment.
The TRO5404 delivers the reliability and precision required for room temperature regulation, proportional heating and cooling control, and variable air volume system applications.
