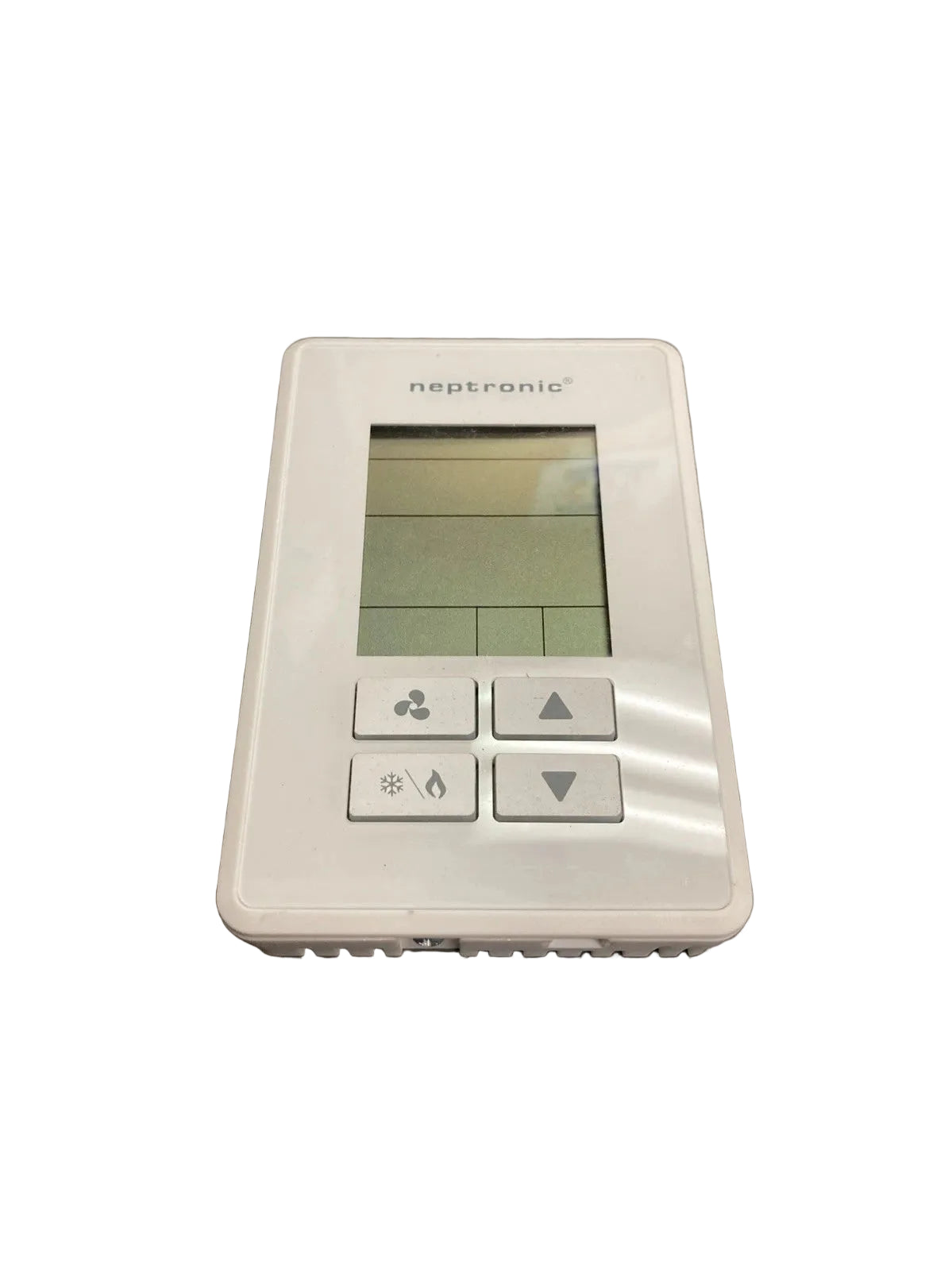

Neptronic TUUB00-200 Networkable Universal Wall-Mount HVAC Controller
- Regular price
- $312.00
- Sale price
- $312.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TUUB00-200
Description
The Neptronic TUUB00-200 is a networkable universal wall-mount controller designed for temperature regulation in heating, ventilation, and air conditioning equipment. It combines an integrated temperature sensor, configurable control algorithms, universal inputs, analog and binary outputs, and selectable BACnet Master-Slave/Token-Passing or Modbus Remote Terminal Unit communication. The controller is suitable for fan coil units, rooftop units, heat pumps, packaged systems, and other heating and cooling equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Neptronic |
| Category | Controls & Indicators |
| Part Number | TUUB00-200 |
| Subcategory | Control |
| Series | TUUB |
| Product Type | Networkable Universal Wall-Mount Controller |
| Integrated Sensor | Temperature |
| Temperature Setpoint Range | 10°C to 40°C |
| Temperature Control Accuracy | ±0.4°C |
| Universal Inputs | 4 configurable inputs |
| Binary Outputs | 6 outputs, 250 milliamperes maximum |
| Analog Outputs | 4 outputs, 0–10 volts direct current |
| Network Communication | BACnet Master-Slave/Token-Passing or Modbus Remote Terminal Unit |

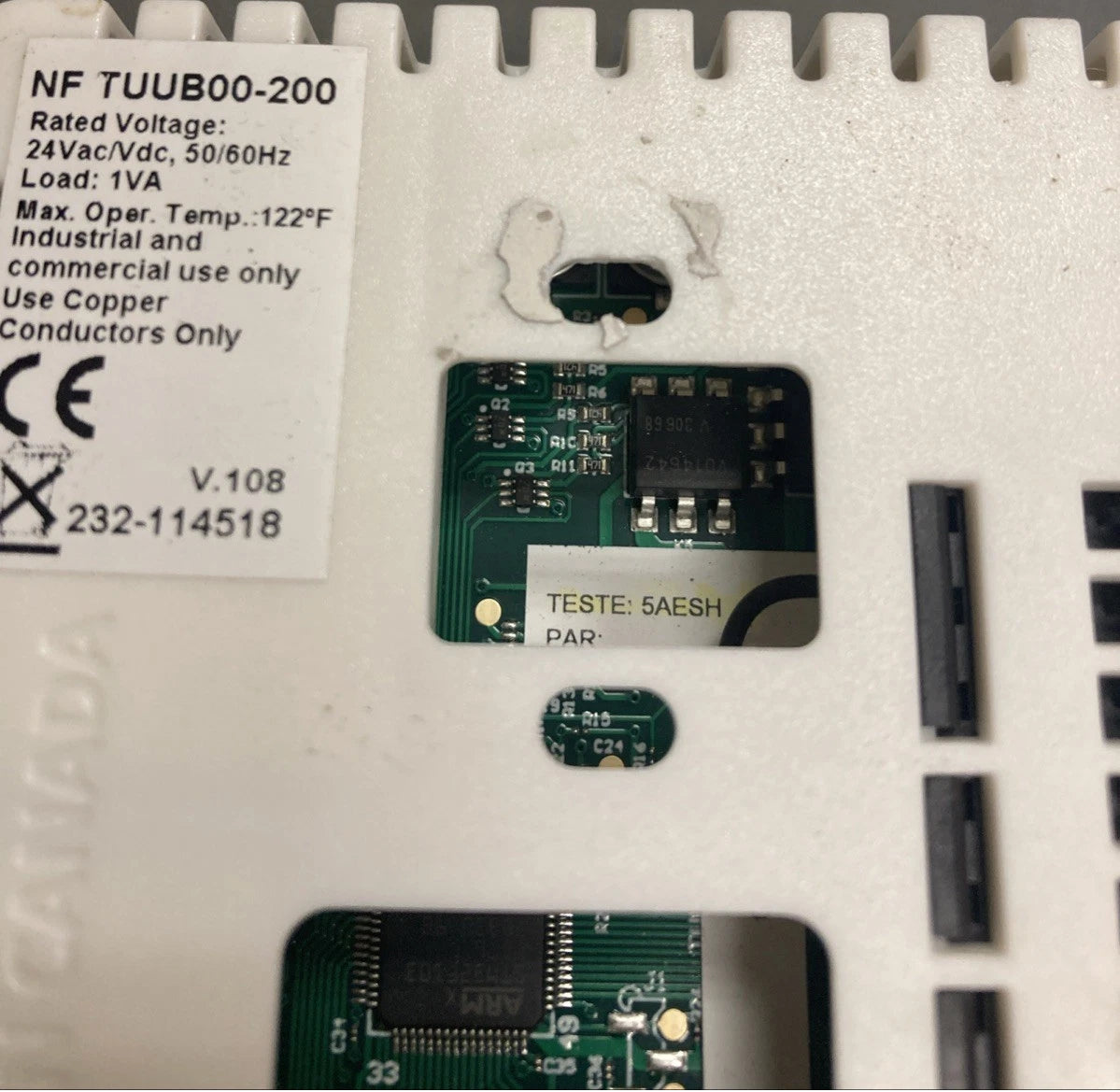

| Power Supply | 22–26 volts alternating or direct current, 50/60 hertz |
| Power Consumption | 1 volt-ampere maximum |
| Operating Temperature | 0°C to 50°C |
| Protection Rating | IP30 |
| Dimensions | 4.88 × 3.25 × 1.75 inches |
| Weight | 0.30 lbs |
Information About TUUB00-200

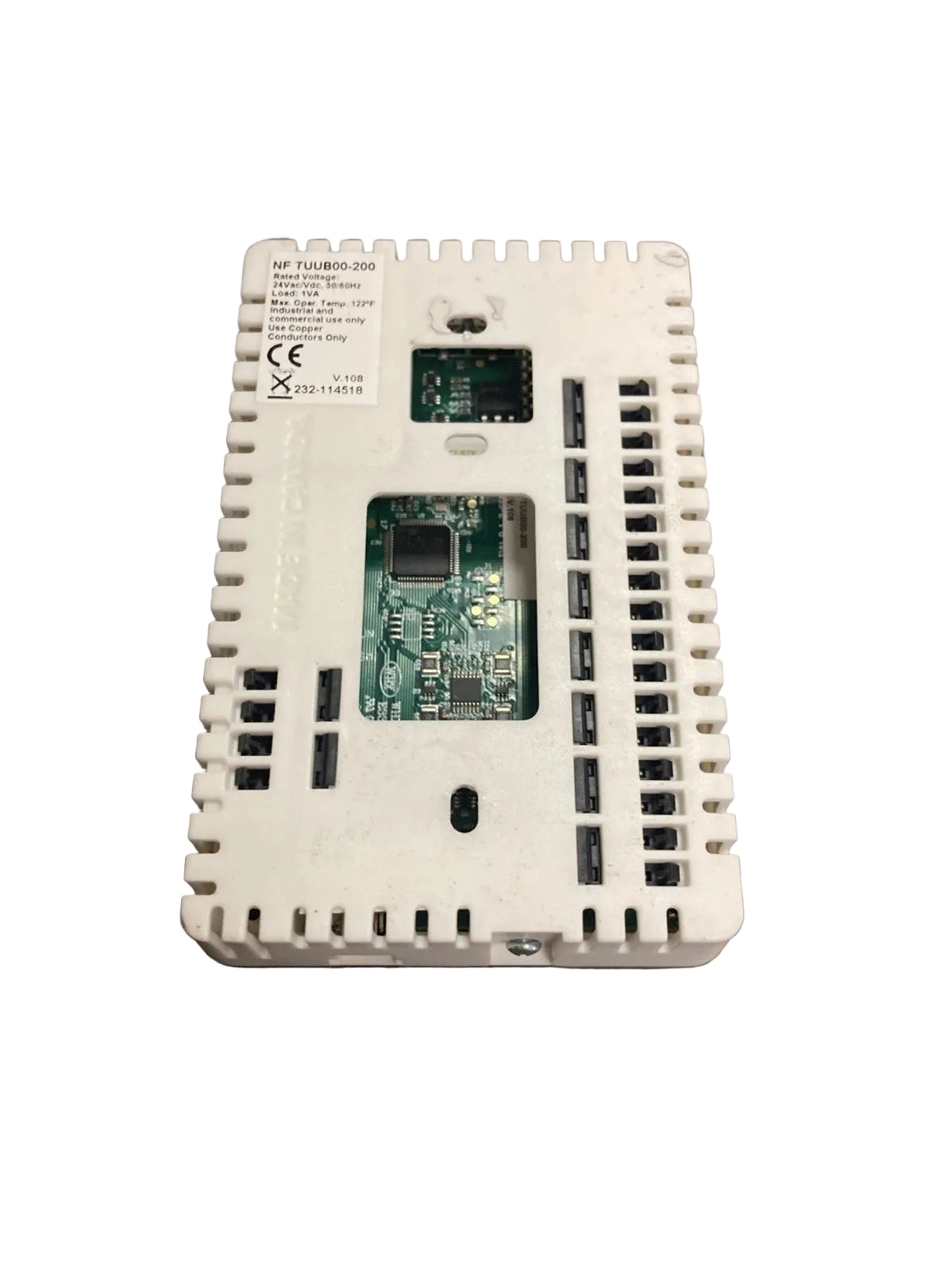

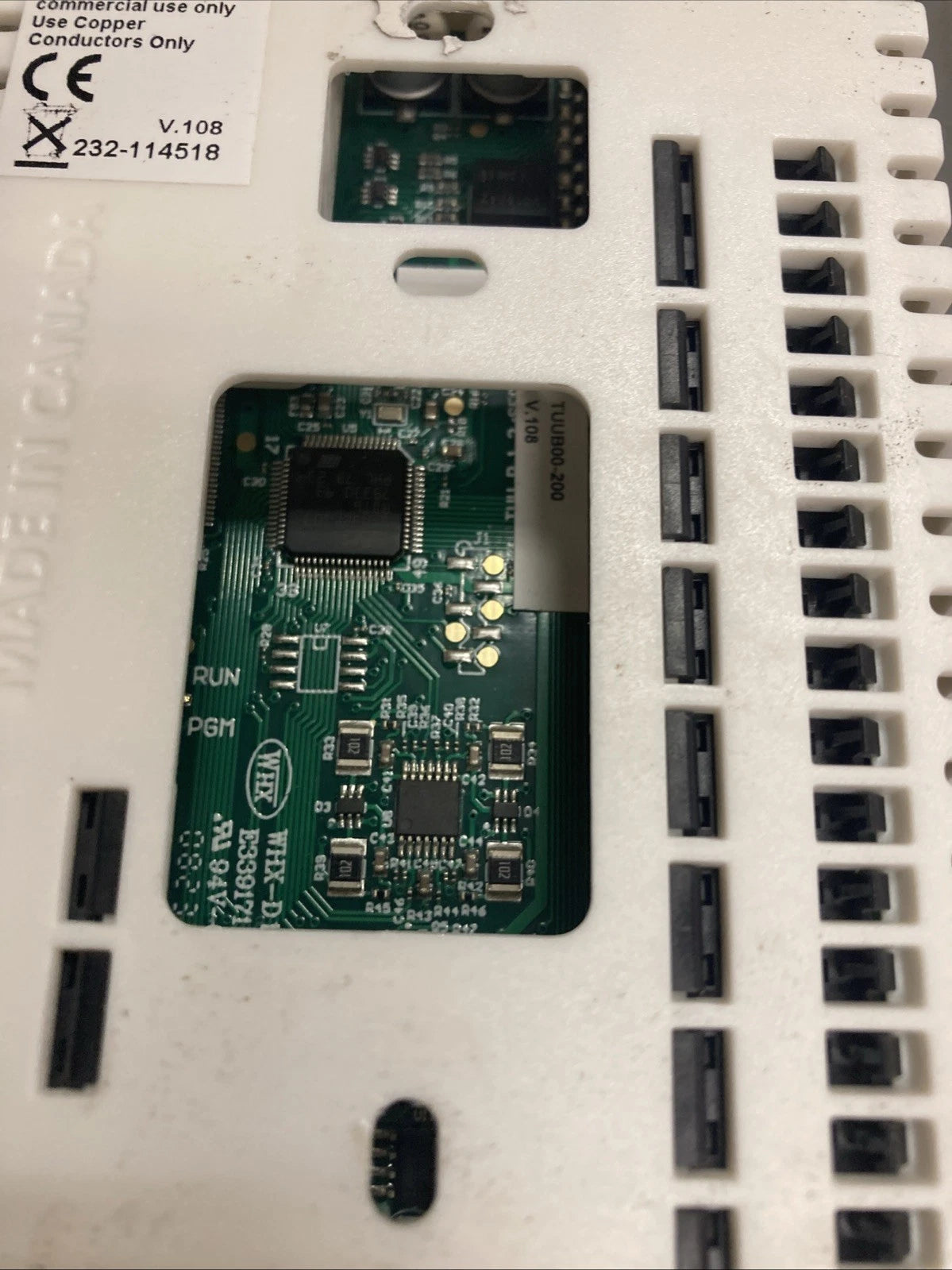

The TUUB00-200 is a Neptronic TUUB series universal wall-mount controller with an onboard temperature sensor and programmable scheduling functions for room and equipment control. The unit provides four configurable universal inputs, six binary outputs, four analog outputs, and screw connection terminals in a compact wall-mounted enclosure. It supports selectable BACnet Master-Slave/Token-Passing or Modbus Remote Terminal Unit communication, automatic baud-rate detection, network configuration, and connection to compatible building automation systems. Its configurable proportional-integral control, fan control, occupancy functions, night setback, compressor anti-cycling, and heating and cooling sequences allow the controller to be adapted to different heating, ventilation, and air conditioning applications.
Key Features:
- Universal HVAC Control: Configurable for fan coil units, rooftop units, heat pumps, packaged systems, and other heating and cooling equipment.
- Integrated Temperature Sensor: Measures room temperature directly for local temperature regulation without requiring a separate primary sensor.
- Configurable Universal Inputs: Provides four inputs configurable for 0–10 volts direct current, 10-kilohm temperature sensors, or dry contacts.
- Flexible Control Outputs: Includes six binary outputs and four 0–10 volt direct current analog outputs for controlling fans, valves, heating, and cooling equipment.
- Dual Network Protocols: Supports selectable BACnet Master-Slave/Token-Passing or Modbus Remote Terminal Unit communication.
- Programmable Scheduling: Includes a real-time clock, seven-day scheduling, occupancy control, and night setback functions.
- Proportional-Integral Regulation: Provides configurable proportional-integral control for precise temperature regulation across heating and cooling sequences.
- Network Configuration Functions: Supports automatic baud-rate detection, network address configuration, BACnet scheduling, and configuration broadcasting.
The TUUB00-200 delivers the reliability and precision required for room temperature regulation, heating and cooling equipment control, and networked building automation applications.
