NetAXS-123 | Honeywell Stand-Alone Web-Enabled Access Control Panel for 1–3 Doors
- Regular price
- $215.00
- Sale price
- $215.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NETAXS-123
Description

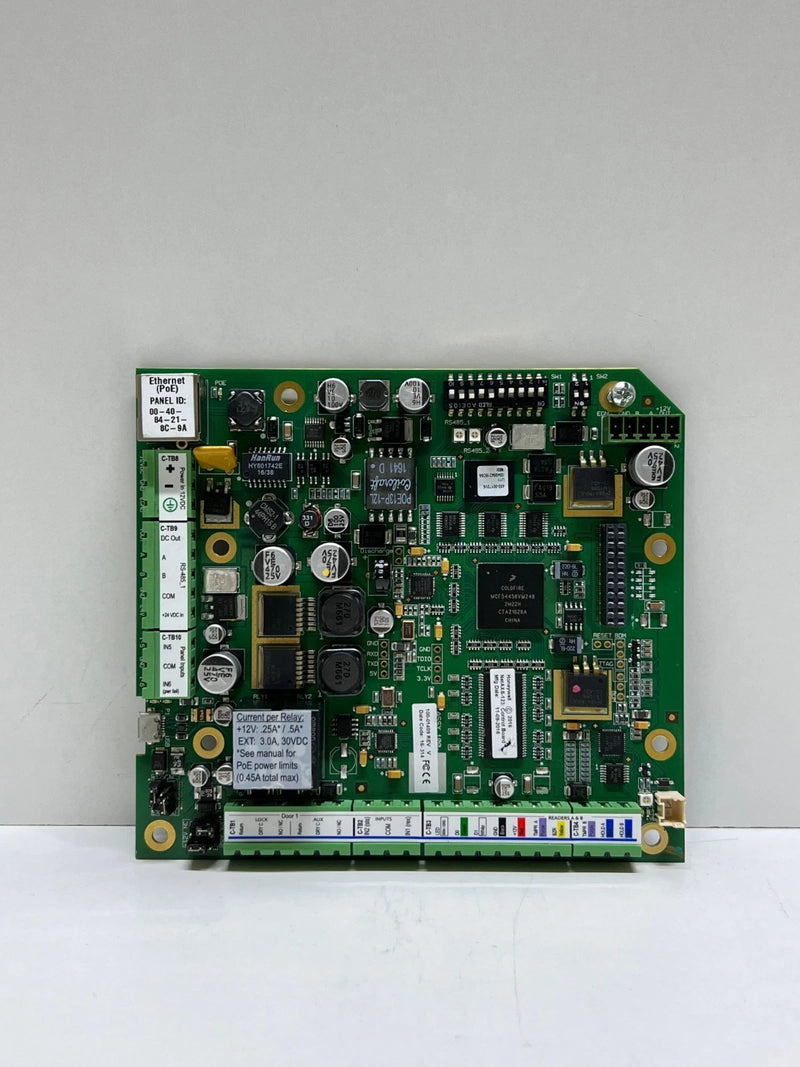

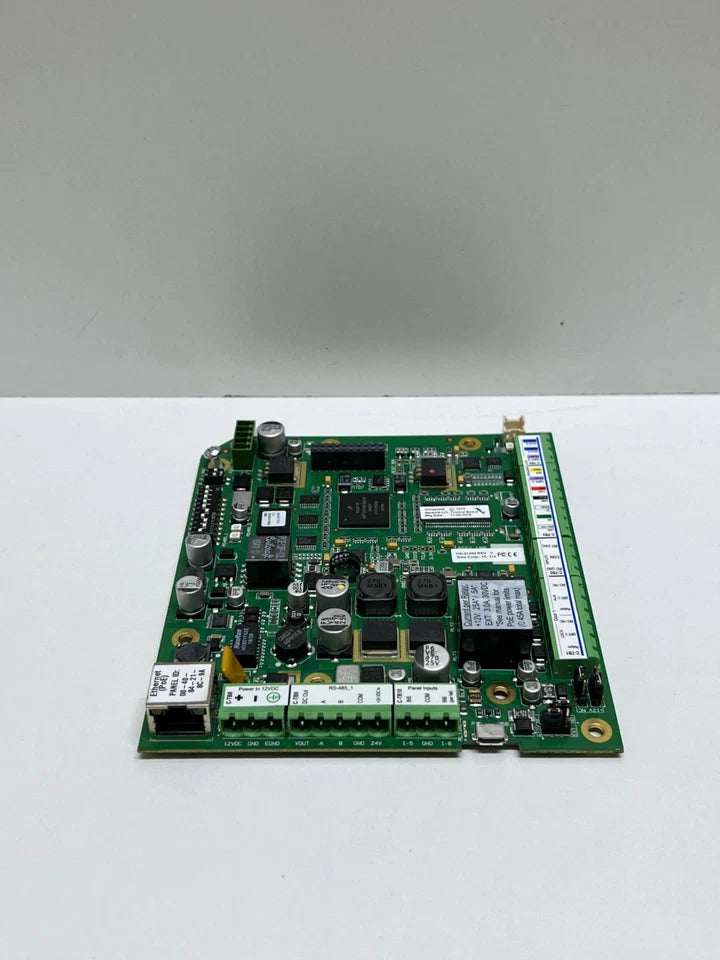

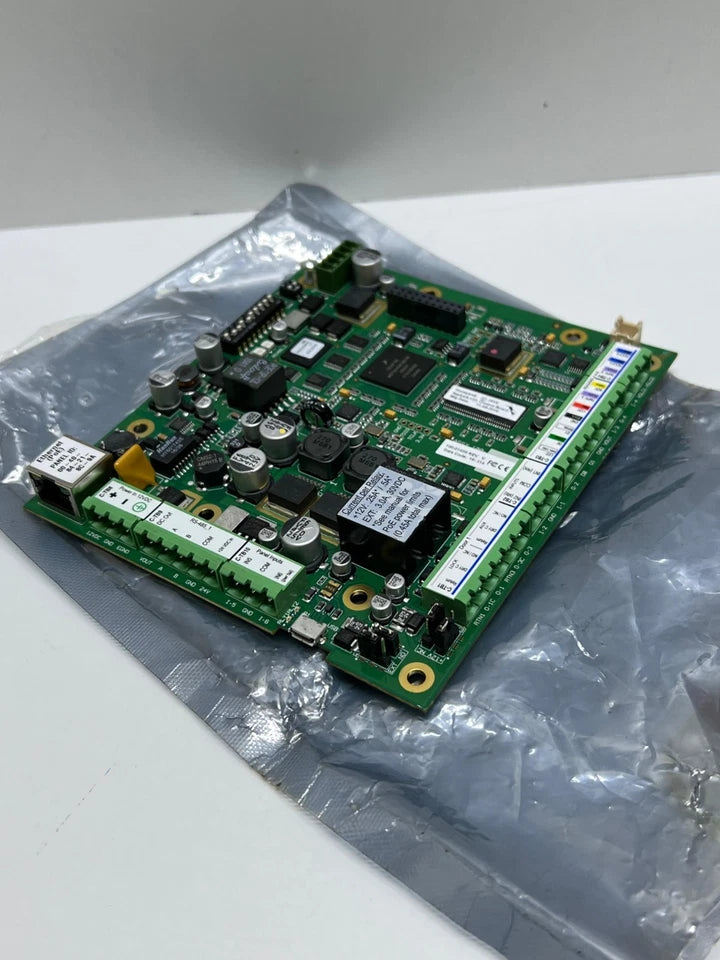

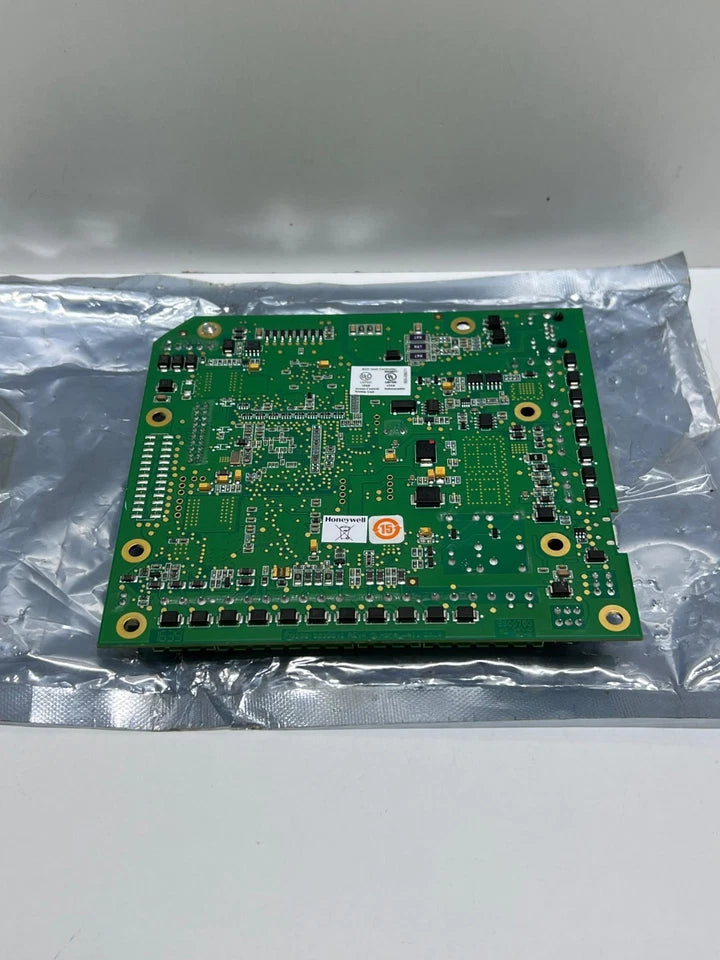

The Honeywell NetAXS-123 is a modular, stand-alone, web-enabled access control system designed for small to medium-sized facilities. It supports one, two, or three doors per panel and can be managed directly via a web browser without a dedicated PC or network connection. Ideal for both plastic and metal enclosure setups, the system ensures secure, flexible, and scalable access management.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HMI / MMI / OIT |
| Part Number | NetAXS-123 |
| Subcategory | Operator Interface |
| Doors Supported | 1, 2, or 3 per panel |
| Expandable Doors | Up to 93 via RS-485; up to 48 via EVL |
| Card Capacity | 10,000 |
| Event Capacity | 25,000 |
| Access Levels | 128 |
| Time Zones | 1,275 |
| Holidays Supported | 255 |
| Outputs | 2 SPDT relays per door; open collector outputs for reader LED and buzzer |
| Inputs | 6 configurable inputs on main panel; add-on boards provide additional inputs |
| Power Input | PoE 802.3af or 12 VDC external supply |
| Lock/Strike Power | 450 mA per door via PoE; 1.15 A per door externally powered |
| Enclosure Options | Compact plastic or standard metal with tamper switch |
| Operating Temperature | 0°C to 49°C |
| Storage Temperature | -55°C to +85°C |
| Certifications | CE, FCC; UL-294 listing pending |
| System MTBF | 250,000 hours |
| Weight | 4.2 lbs |
Information About NETAXS-123
The NetAXS-123 is part of Honeywell’s compact access control series, engineered for autonomous operation and easy web-based management. Each panel can operate independently or be networked with other panels using Ethernet Virtual Loop (EVL) or RS-485 connections. It supports standard Wiegand readers, PoE or external 12 VDC power, and expandable I/O via add-on boards. Key technologies include SSL-secured web interface, real-time dynamic screen updates, anti-passback functionality, and multiple door access modes for supervisors, escorts, and standard users.
Key Features:
- Web-Enabled Management: Full configuration and control via a standard web browser.
- Modular Door Support: Supports 1, 2, or 3 doors per panel; expandable up to 93 doors.
- Add-On Boards: NX1, NXD1, and NXD2 boards allow fast expansion without hardware replacement.
- Power Options: PoE 802.3af or external 12 VDC supply with battery backup.
- Connectivity: Ethernet, RS-485, and USB for setup, diagnostics, and optional network integration.
- Dynamic Screen Updates: Real-time web interface refreshes automatically for alarms, events, and status.
- Security Modes: Card only, PIN only, card + PIN, supervisor, escort, anti-passback, and lockdown.
- Scalable Networking: EVL allows up to 16 panels on a single virtual loop, supporting up to 48 doors.
The NetAXS-123 delivers the reliability and precision required for scalable and secure access control in commercial and industrial environments.
