NF120PSG3L | Schneider Electric Power Supply

Description

Technical Specifications

Information About NF120PSG3L

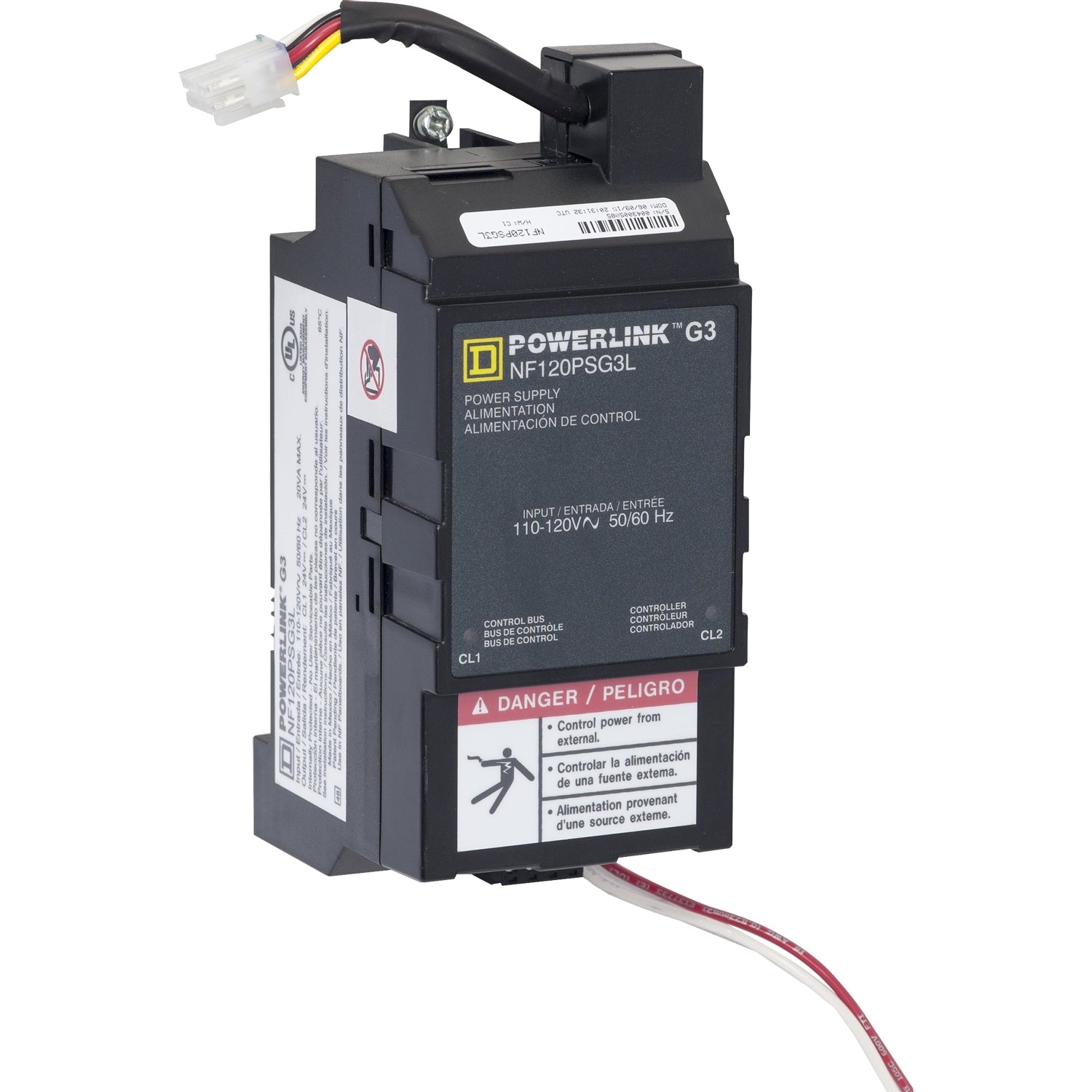

The NF120PSG3L is a specialized power supply unit designed to meet the demands of industrial and commercial applications that require stable and reliable power distribution. It belongs to the Power Supplies category and is specifically classified under the Power Supply W/LEADS subcategory. The unit is engineered to deliver consistent electrical power to connected systems, ensuring reliable performance across various operational conditions. With its robust design and technical specifications, the NF120PSG3L is a suitable solution for applications that require efficient power conversion and regulation.

The power supply operates with an input voltage range of 110-120V, making it compatible with standard alternating current (AC) power sources commonly found in industrial and commercial environments. This input voltage specification ensures that the unit can be easily integrated into existing electrical infrastructure without the need for extensive modifications or additional equipment. The flexibility of the input voltage range allows for consistent operation even in environments where voltage fluctuations may occur, providing a dependable source of power for connected devices.

The NF120PSG3L features an output voltage of 24VDC, which is commonly used in many industrial control systems, automation equipment, and various electronic devices that require direct current (DC) power. The 24VDC output is regulated to ensure stable voltage delivery, minimizing the risk of voltage spikes or drops that could potentially damage sensitive components or disrupt system operations. This regulated output makes the NF120PSG3L an ideal choice for applications where precise power delivery is critical to maintaining system integrity and performance.

In addition to its voltage specifications, the NF120PSG3L is rated for a current output of 20 amps. This current rating provides ample power for a wide range of devices and systems, including motors, actuators, sensors, and other equipment that may have higher power demands. The 20-amp rating ensures that the power supply can handle multiple connected loads without experiencing overload conditions, making it suitable for complex systems with varying power requirements. The unit’s ability to deliver a high current output also contributes to its versatility, allowing it to be used in both small-scale and large-scale operations.

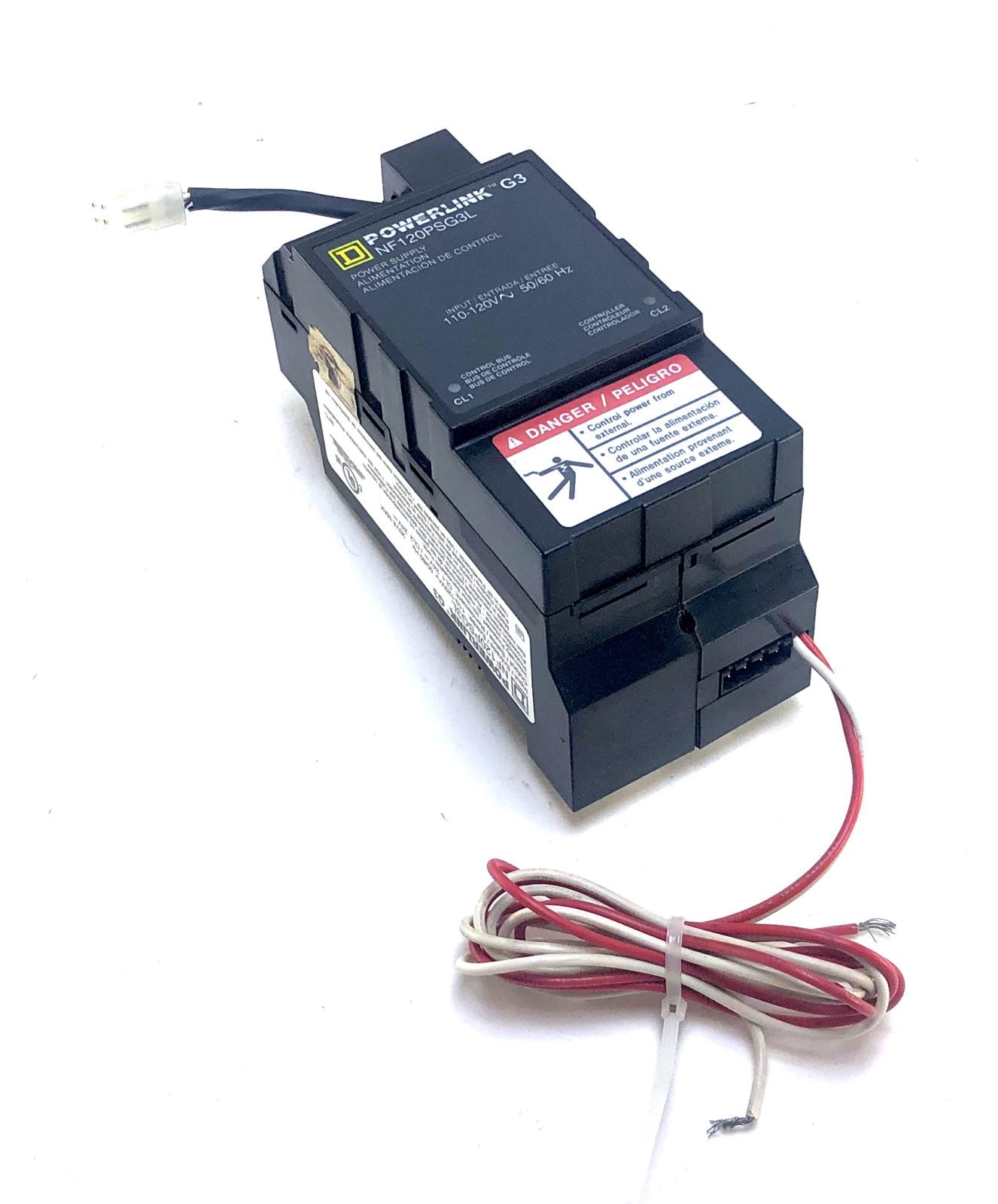

One of the key features of the NF120PSG3L is its inclusion of leads for easy connectivity. The power supply is equipped with leads that simplify the installation process by providing pre-attached wiring for input and output connections. This reduces installation time and minimizes the potential for wiring errors, ensuring that the unit can be quickly and efficiently integrated into the system. The use of leads also enhances safety by reducing the need for manual wire handling during installation, which can help prevent electrical hazards such as short circuits or loose connections.

The NF120PSG3L is designed with durability and reliability in mind, making it well-suited for use in harsh industrial environments where equipment may be exposed to challenging conditions such as dust, moisture, and temperature fluctuations. The unit is built to withstand these environmental factors, ensuring long-term performance and reducing the likelihood of power supply failure. Its rugged construction and high-quality components provide added protection against wear and tear, further enhancing its reliability in demanding applications.
