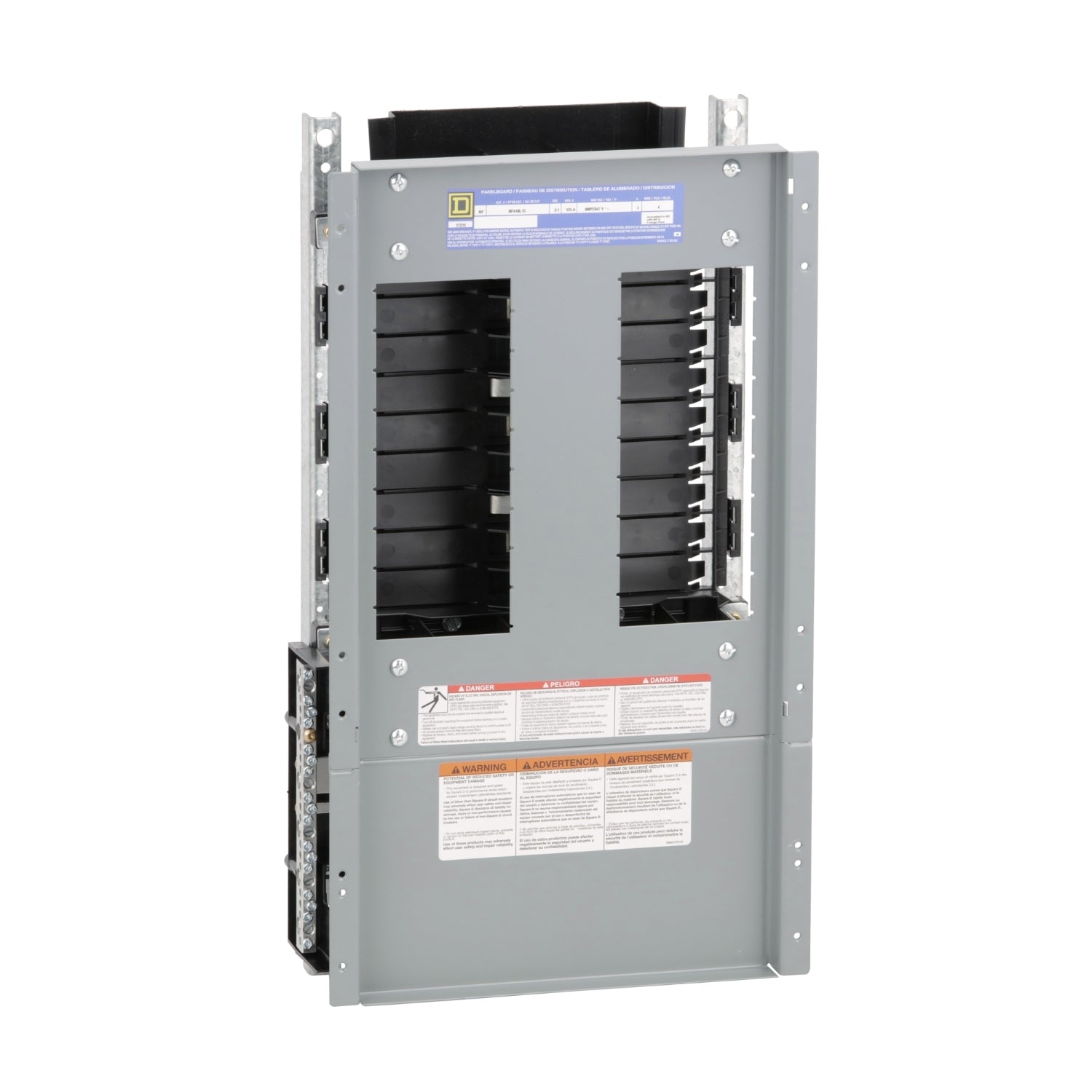

NF418L1C | Schneider Electric Panelboard Interior
- Regular price
- $784.00
- Sale price
- $784.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NF418L1C
Description
The NF418L1C is a panelboard interior from the NF series, designed with main lugs rated at 125A. It features a copper bus bar and provides 18 pole spaces, suitable for a 3-phase, 4-wire system with a maximum voltage of 600Y/347VAC. The interior supports EDB, EDG, and EDJ branch circuit breakers. It is UL listed and CSA certified, ensuring compliance with safety standards. The panelboard interior is 21 inches tall and 10.44 inches wide, accommodating lug connections for 6 AWG to 2/0 AWG copper or aluminum wire.
Technical Specifications
|
Part # |
NF418L1C |
|
Category |
Circuit Breaker |
|
Subcategory |
Load Center/Panel Board |
|
Panelboard Type |
Main lugs |
|
Branch Circuit Breaker Type |
EDB/EDG/EDJ |
|
Busbar Material |
Copper |
|
Line Rated Current |
125 A |
|
[Iu] rated interrupted current |
65 kA |
|
Number of Phases |
3 phase 4 wires |
|
Voltage Rating |
600Y/347 V AC |
|
Connections - terminals |
Lug line AWG 6...AWG 2/0 aluminium/copper |
|
Lug neutral |
AWG 6...AWG 2/0 aluminium |
|
Height |
21 in (533.40 mm) |
|
Width |
10.44 in (265.18 mm) |
Information About NF418L1C
The NF418L1C is a panelboard interior designed for a variety of applications, including commercial buildings, industrial facilities, stadiums, and offices. These interiors offer comprehensive protection for commercial and industrial electrical systems. NF Panelboards provide a wide selection of circuit breakers, accessories, and ready-to-install kits, catering to diverse requirements.
One of the notable features of NF Panelboards is their field convertibility to top or bottom feed configurations, offering flexibility in installation. Additionally, they are convertible from main lug to main breaker setups, accommodating different preferences and needs. NF Panelboards can provide 200% rated neutrals for nonlinear loads, ensuring compatibility with a wide range of electrical equipment.
Factory-installed options for NF Panelboards include split bus configurations, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates, enhancing their functionality and versatility.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
