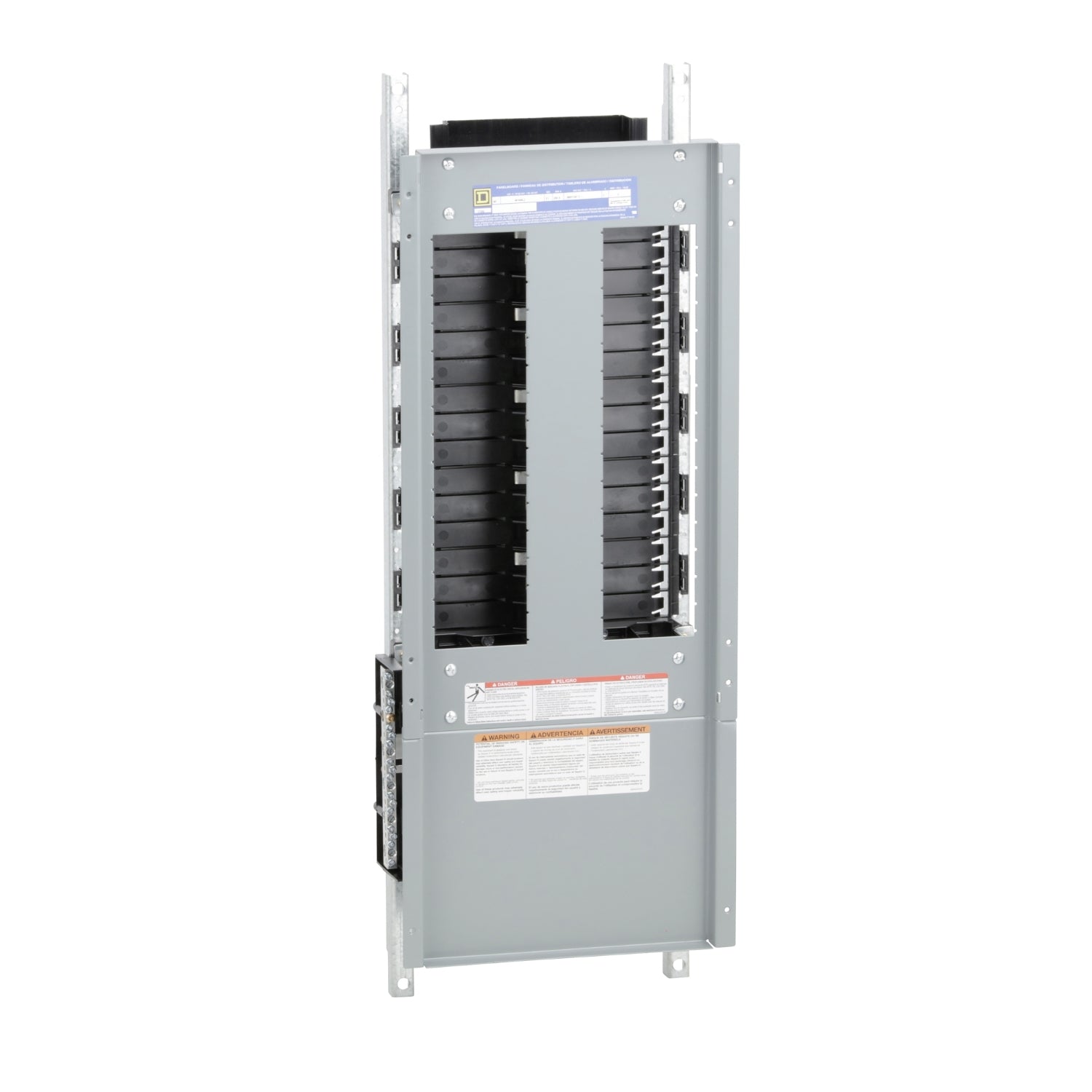

NF430L2 | Schneider Electric NF Series 250A 3-Phase Bottom Panelboard Interior
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NF430L2
Description
The Schneider Electric NF430L2 is a 3-phase bottom-feed panelboard interior designed for industrial and commercial power distribution systems. Rated at 250 amps, it supports bolt-on EDB breakers and provides robust electrical performance across multiple voltage configurations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | NF430L2 |
| Subcategory | Load Center / Panel Board |
| Amperage Rating | 250 A |
| Breaker Mounting | Bolt-On |
| Breaker Type | EDB |
| Bus Material | Aluminum |
| Dimensions | 20 in W × 5-3/4 in D × 50 in H |
| Enclosure Type | NEMA 1 / 3R / 5 / 12 |
| Housing Material | Aluminum |
| Mounting Type | Panel |
| Number of Spaces | 30 |
| Series | NF Series |
| Short Circuit Current Rating | 100 kA |
| Type | 3-Phase Bottom, Main Lug |
| Voltage Rating | 480Y/277 VAC, 600Y/347 VAC |
| Wiring Configuration | 4-Wire |
| Application | Industrial & Commercial Panelboard Distribution |
Information About NF430L2
The NF430L2 is a panelboard interior from Schneider Electric’s NF Series engineered to support reliable three-phase distribution in industrial and commercial facilities. Designed for bottom-feed applications, it accommodates up to 30 bolt-on EDB circuit breakers and features a 250-amp main lug configuration suited for heavy load centers. Its aluminum bus and housing provide strength, corrosion resistance, and efficient conductivity, all while fitting within NEMA 1, 3R, 5, and 12 enclosures for versatile installation options. With a 100 kA short-circuit current rating and compatibility with 480Y/277 VAC and 600Y/347 VAC systems, this panelboard interior ensures safe, durable, and efficient electrical distribution across demanding environments.
Key Features
- 250A Three-Phase Distribution Capacity: Supports substantial industrial and commercial load requirements with stable current handling.
- Bottom-Feed Main Lug Configuration: Facilitates straightforward wiring and system integration in vertically fed panel installations.
- Bolt-On EDB Breaker Compatibility: Ensures secure, reliable breaker mounting optimized for high-performance distribution systems.
- 100 kA Short-Circuit Rating: Provides strong protection capability for high-fault environments, enhancing system safety and resilience.
- 30-Space Interior Layout: Offers ample capacity for branch-circuit expansion while maintaining compact installation dimensions.
- Aluminum Bus and Housing: Delivers corrosion resistance, improved thermal performance, and lightweight structural support.
- NEMA 1/3R/5/12 Enclosure Compatibility: Allows installation in indoor, damp, dusty, or light outdoor environments with varying protection needs.
- Multi-Voltage Support: Operates with both 480Y/277 VAC and 600Y/347 VAC systems, providing flexibility across diverse facility requirements.
The NF430L2 delivers the reliability and precision required for safe and efficient three-phase electrical distribution in demanding industrial and commercial environments.
