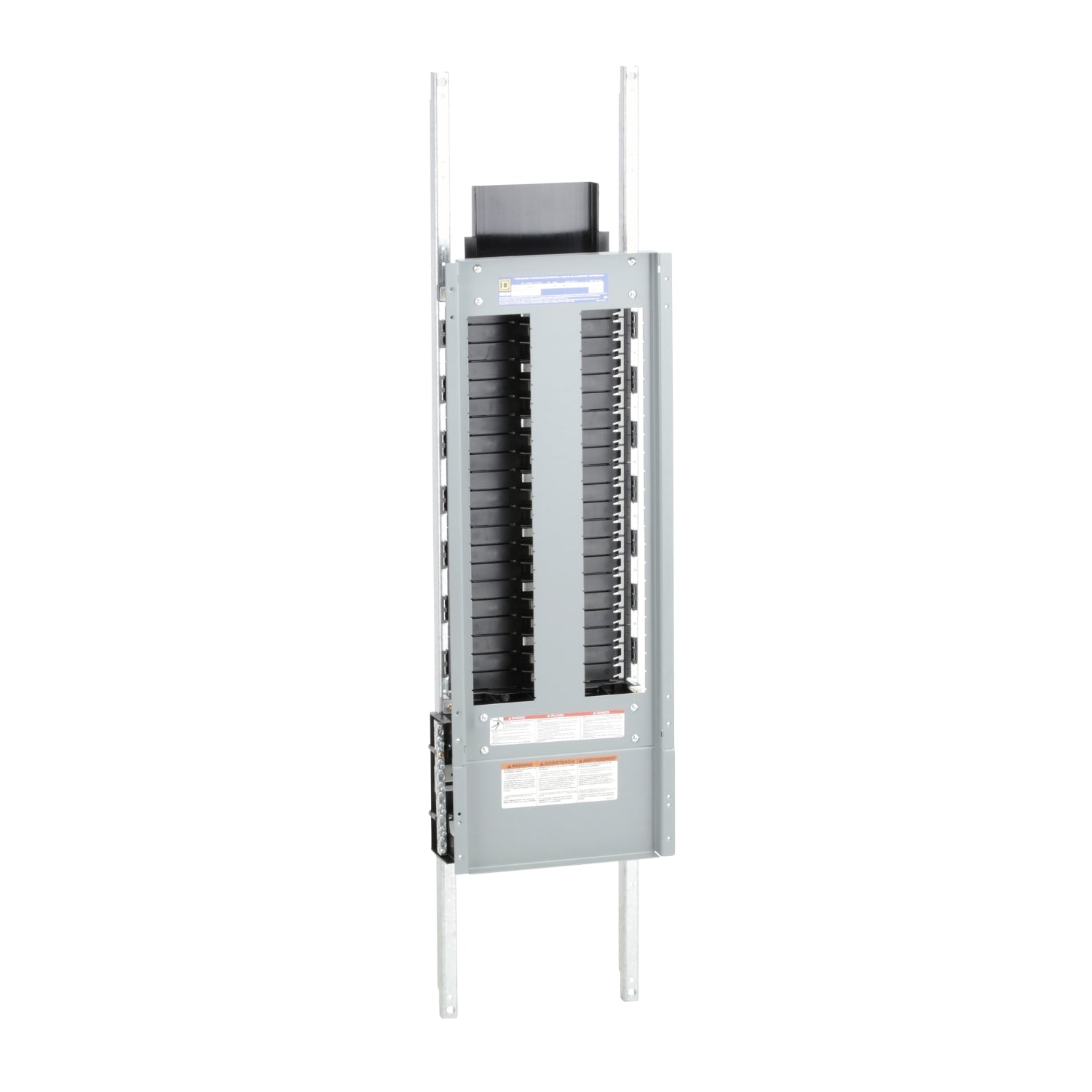

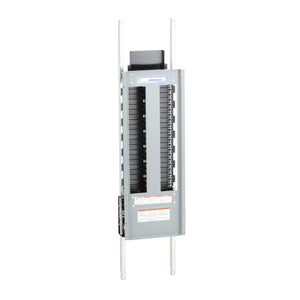

NF442L4C | Schneider Electric Panelboard Interior
- Regular price
- $2,025.00
- Sale price
- $2,025.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NF442L4C
Description
The NF442L4C is a panelboard interior designed for various applications such as commercial buildings, industrial buildings, stadiums, and offices. It provides protection for commercial and industrial electrical systems. NF panelboard interiors offer a wide selection of circuit breakers, accessories, and ready-to-install kits. They are field convertible to top or bottom feed and can be converted from main lug to main breaker configuration.
The NF442L4C interior can accommodate 42 pole spaces and is suitable for a 3-phase, 4-wire system with a maximum voltage of 600Y/347VAC. It features a copper bus bar and is compatible with EDB, EDG, and EDJ branch circuit breakers. The main lugs are rated at 400A 480Y/277 VAC 3 phase, with an interrupt current rating of up to 65 kA.
Technical Specifications
|
Part # |
NF442L4C |
|
Category |
Circuit Breaker |
|
Subcategory |
Load Center/Panel Board |
|
Line Rated Current |
400 A |
|
[Iu] rated interrupted current |
65 kA |
|
Number of Phases |
3 phase 4 wires |
|
Voltage Rating |
600Y/347 V AC |
|
Height |
52 in (1320.80 mm) |
|
Width |
10.44 in (265.18 mm) |
|
Net Weight |
59.00 lb(US) (26.76 kg) |
Information About NF442L4C
The NF442L4C Panelboard Interior, belonging to the NF series, is designed for various applications, including commercial buildings, industrial facilities, stadiums, and offices. These interiors offer comprehensive protection for a wide range of commercial and industrial needs. NF Panelboards come equipped with a diverse selection of circuit breakers, accessories, and installation kits, ensuring versatility and adaptability to specific requirements.
One notable feature of NF Panelboards is their field convertibility, allowing for seamless transition between top and bottom feed configurations. Additionally, these panelboards can be easily converted from main lug to main breaker setups, providing flexibility in installation and usage scenarios.
NF Panelboards are capable of accommodating 200% rated neutrals for nonlinear loads, enhancing their suitability for diverse electrical systems. Factory-installed options include split buses, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates, enabling customization to meet specific needs.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
