NFC-CE6 | Notifier Circuit Expander Module for 6 Class A/B Speaker Circuits
- Regular price
- $1,127.00
- Sale price
- $1,127.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NFC-CE6
Description

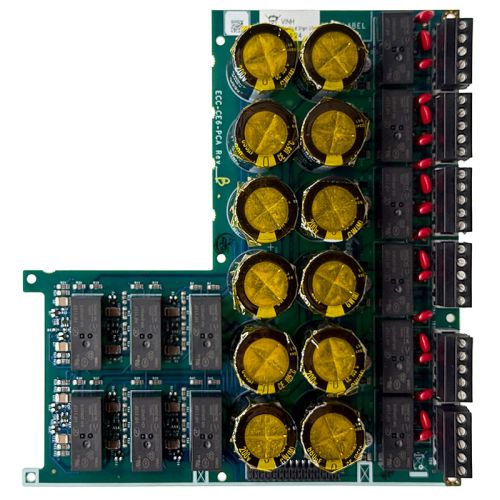

The Notifier NFC-CE6 is a circuit expander module that adds up to six supervised speaker circuits to compatible First Command emergency voice evacuation panels. Designed for Class A (Style Z) or Class B (Style Y) wiring, it provides reliable power-limited outputs for mass notification and fire alarm audio applications. This module enhances system capacity while maintaining high levels of safety and compliance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier (Honeywell) |
| Category | Fire Safety |
| Part Number | NFC-CE6 |
| Subcategory | Circuit Expander Modules |
| Series | Notifier First Command Series |
| Circuit Capacity | Up to 6 circuits |
| Wiring Options | Style Y (Class B) or Style Z (Class A) |
| Output Power | 50 watts total |
| Operating Voltage | 25V @ 2.0A max per circuit; optional 70V with NFC-XRM-70V |
| Frequency Range | 400 Hz – 4,000 Hz |
| Load Impedance | 12.5Ω (25V), 100Ω (70V) |
| Maximum Capacitance | 250 μF across all circuits |
| Supervision | Circuits supervised during standby, background music, and alarm |
| EOL Resistor | 15 kΩ, 1 W (Style Y/Class B) |
| Configuration | Web-based programming utility |
| Approvals | UL Listed |
| Production Status | Active |
| Unit of Measurement | Each (EA) |
| Weight | 1 lb |
Information About NFC-CE6
The NFC-CE6 is part of Notifier’s First Command series of modular expansion components, engineered for the NFC-50/100(E) and NFC-50/125DA(E) panels. It allows systems to grow from a single speaker circuit to as many as eight supervised circuits by adding additional outputs. Each circuit is configurable through the panel’s web-based programming utility, supporting both 25V and 70V operation with optional conversion modules. With 50W total output power and full supervision in all operating modes, the NFC-CE6 is a practical choice for facilities requiring scalable emergency communication systems.
Key Features:
- Circuit Expansion: Provides up to six additional supervised speaker circuits.
- Class A/B Compatibility: Configurable for Style Z (Class A) or Style Y (Class B) wiring.
- Power-Limited Outputs: Ensures compliance with safety standards for speaker circuits.
- Output Power: Supports up to 50 watts total audio output.
- Voltage Options: Operates at 25V standard; optional 70V operation with NFC-XRM-70V transformer.
- Supervised Circuits: Monitoring during standby, background music, and alarm modes.
- Flexible Integration: Designed for use with NFC-50/100(E) and NFC-50/125DA(E) systems.
- Programming Utility: Circuits configured via intuitive web-based software.
The NFC-CE6 delivers the reliability and precision required for scalable emergency voice evacuation and mass notification systems.
