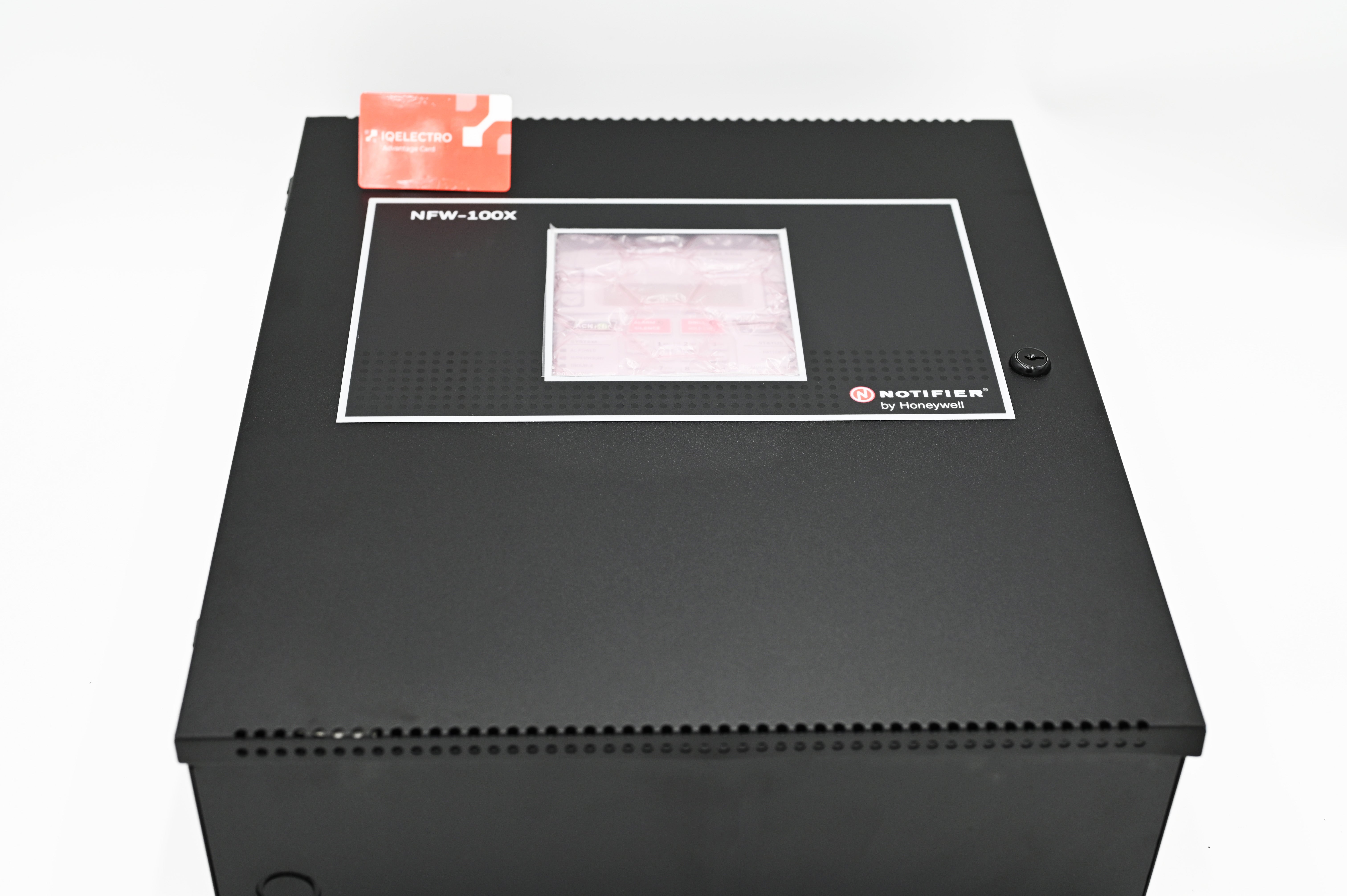

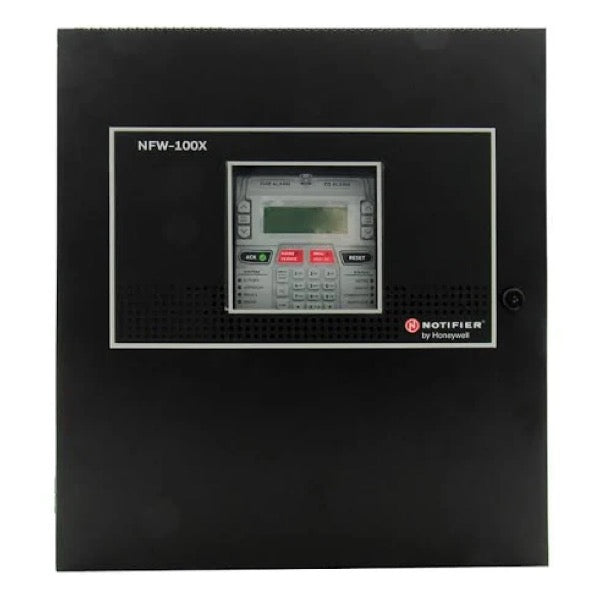

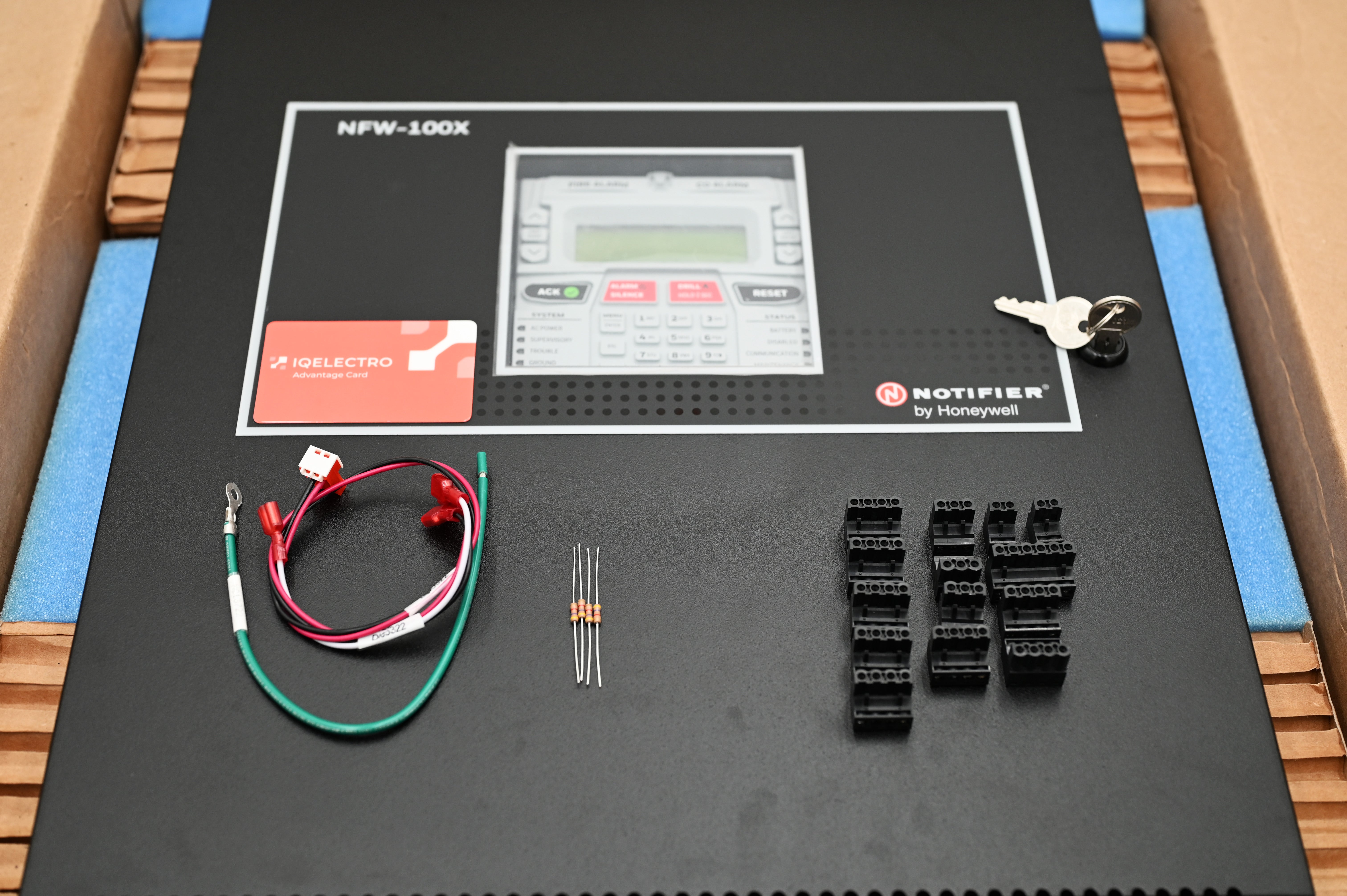

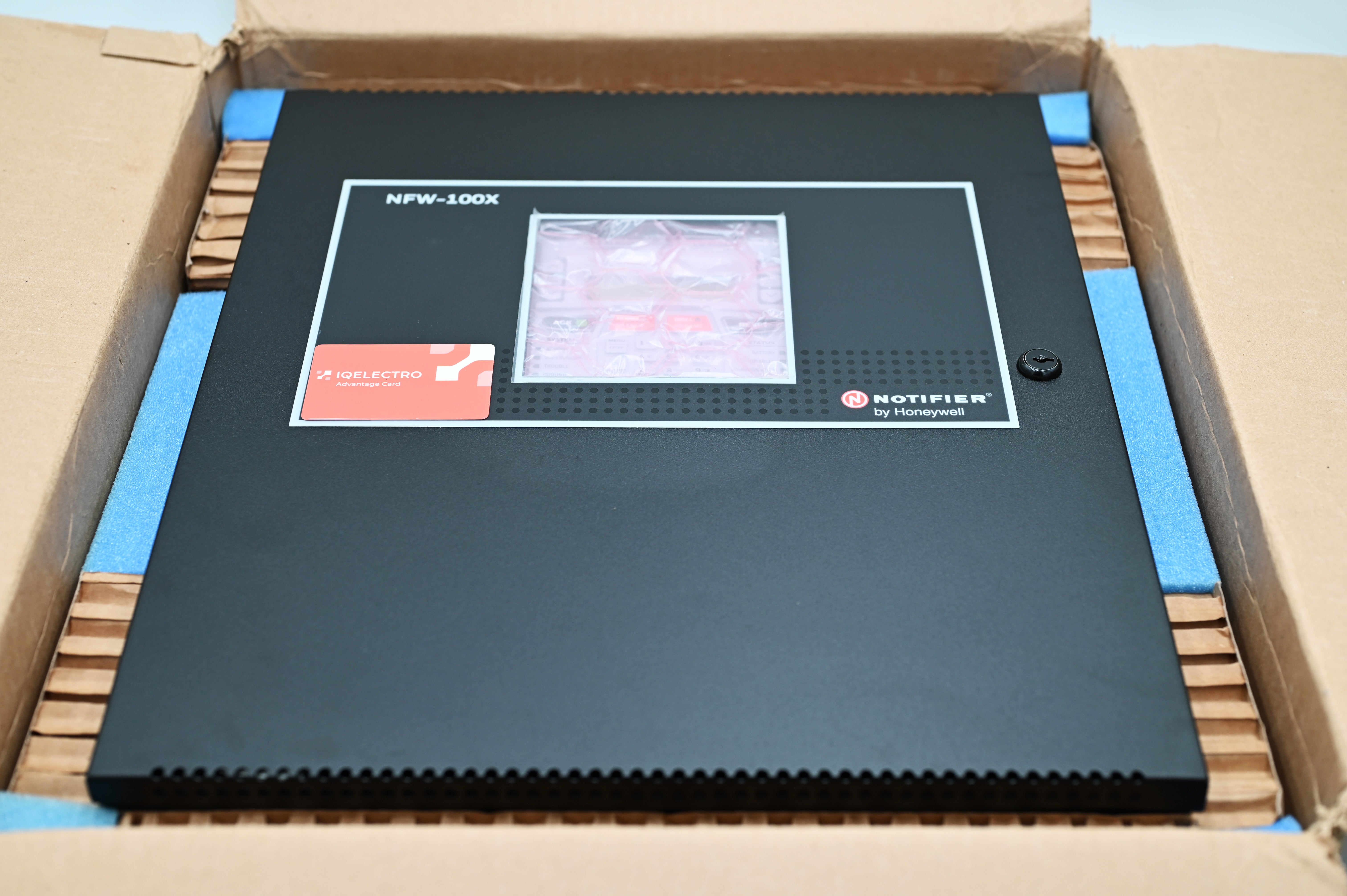

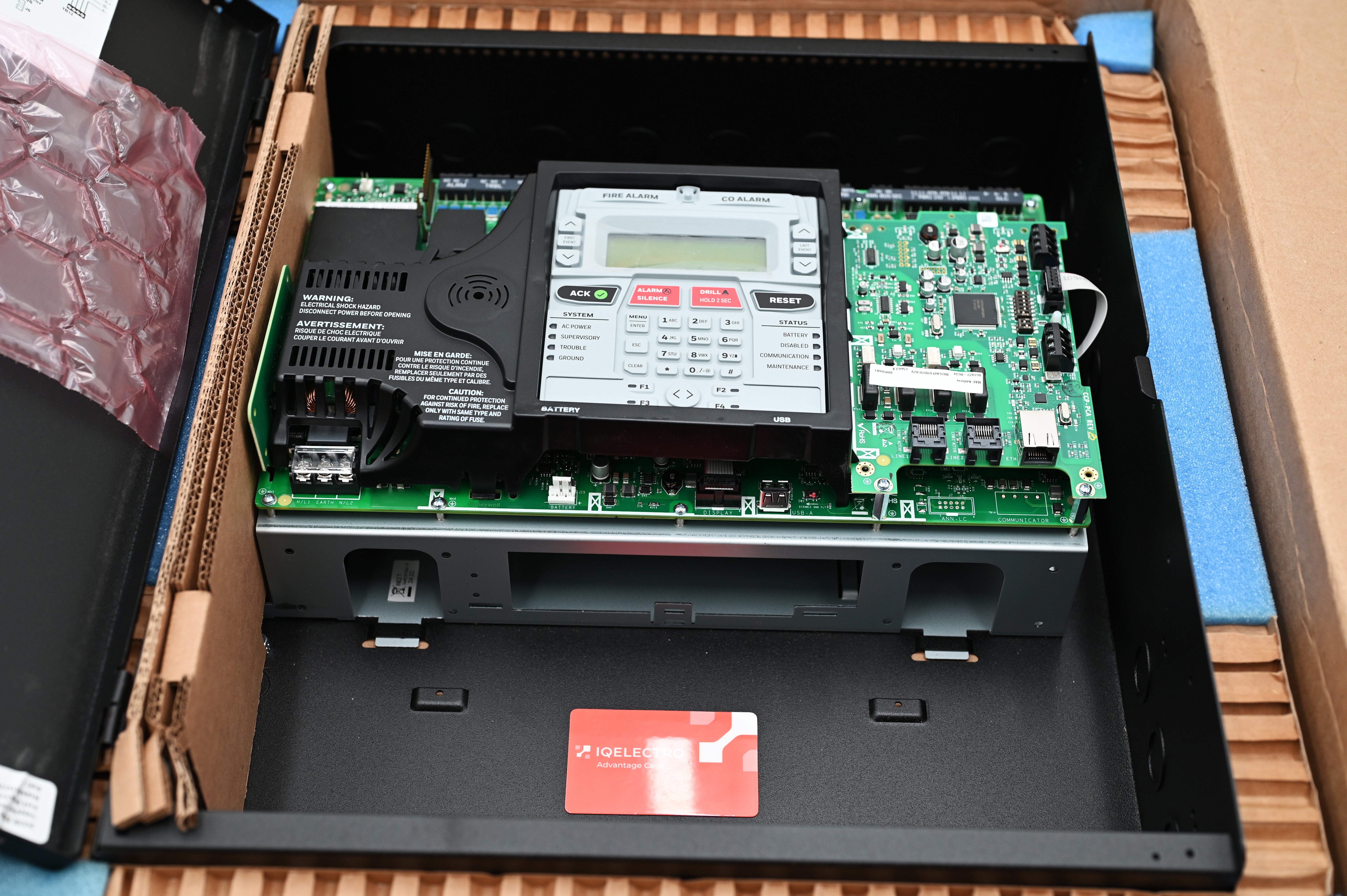

NFW-100X | Notifier FireWarden 100X Intelligent Addressable Control Panel
- Regular price
- $1,940.00
- Sale price
- $1,940.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NFW-100X
Description
The NFW-100X is an intelligent addressable fire alarm control panel from the ONYX Series by Notifier, engineered for mid-size commercial or institutional applications. It combines reliable fire detection, high system capacity, and modern communication technologies in a compact and modular platform.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Notifier |
| Category |
Fire Detection & Alarm Systems
|
| Part Number | NFW-100X |
| Subcategory | Addressable Fire Alarm Panels |
| Intelligent SLCs | 1 |
| Addressable Device Capacity | 198 (99 detectors + 99 modules) |
| NAC Circuits | 4 (2.5 A special application, 250 mA regulated) |
| System Zones | 99 programmable software zones |
| Annunciators | Up to 16 (8 per ANN-BUS) |
| Communication | IPOTS-COM (IP + POTS), USB, optional CELL-MOD/4XTM |
| Relays | 2 programmable Form-C, 1 fixed trouble relay |
| Power Supply | 120/240 VAC, 50/60 Hz, 3.25 A auto-sensing |
| Battery Backup |
Supports two 12 V 18 AH sealed lead-acid batteries |
| Cabinet Size | 20.00" H × 22.25" W × 5.13" D (508 mm × 565 mm × 130 mm) |
| Weight | 16.00 lbs |
Information About NFW-100X
The NFW-100X is the latest model in the FireWarden line and supports up to 198 addressable devices and 99 software zones. It includes a pre-installed IPOTS-COM communicator, providing both POTS and IP connectivity for dual-path alarm transmission. Designed with ease of installation and programming in mind, the panel features a USB port for quick uploading/downloading and supports remote programming using FS-Tools software.
Key Features:
- Dual Path Communication: Comes standard with IPOTS-COM module supporting both IP and POTS for primary/backup transmission.
- High System Capacity: Supports 198 addressable devices, 99 zones, and up to 16 annunciators (8 per ANN-BUS).
- Integrated USB Port: Allows fast access to panel programming, history, and diagnostics using flash drives or FS-Tools.
- Built-in NAC Circuits: Includes four NACs configurable as Class A or B, with sync support for System Sensor, Gentex, and others.
- Flexible Configuration: Offers two programmable and one fixed trouble relay, selectable verification and sensitivity levels per point.
The NFW-100X delivers advanced fire protection functionality in a compact, cost-effective platform tailored for modern facility safety systems.
