NFW-50X | Notifier Fire Alarm Control Panel

Description

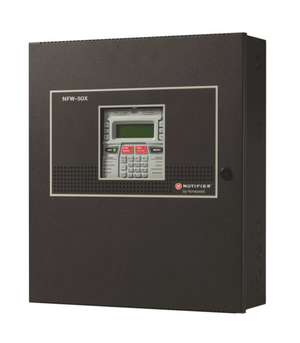

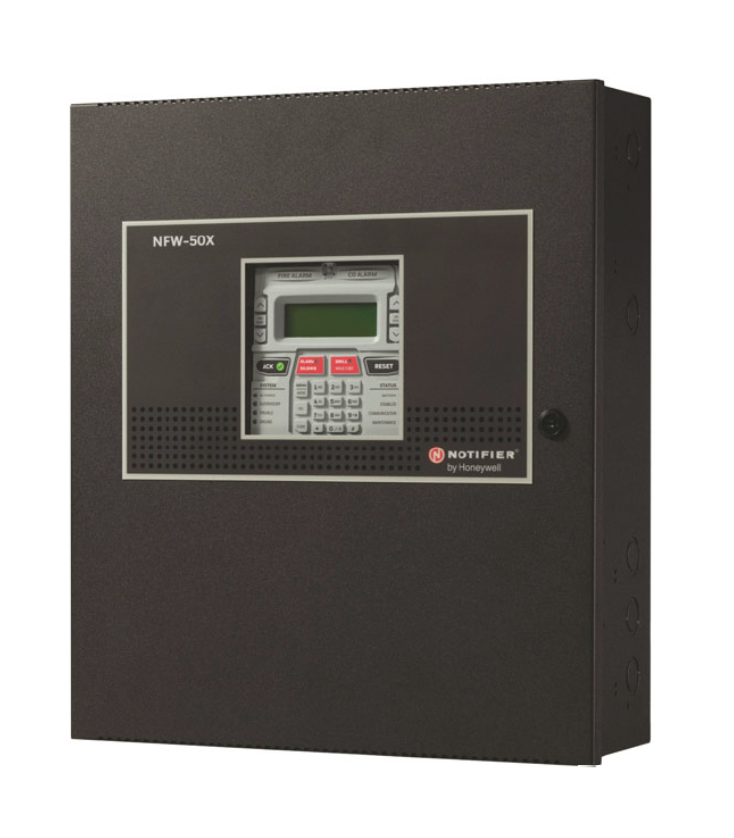

The Notifier NFW-50X is a next-generation addressable fire alarm control panel (FACP) designed for small commercial and institutional applications. It supports up to 50 addressable devices and includes a pre-installed IPOTS-COM dual communicator for internet and phone line connectivity, offering enhanced programming, monitoring, and cost-saving communication options.

Technical Specifications

Information About NFW-50X

The NFW-50X replaces the earlier NFW-50 model in the FireWarden Series and supports both FlashScan and CLIP protocols for flexibility with Notifier devices. It features two Class A/B NAC circuits, providing 250 mA per circuit (2.5 A shared for special applications) and 2.7 A total system output across NACs and ANN-BUS. The panel accepts 120/240 VAC auto-sensing input, and can house two 18 AH batteries internally for backup power. The included IPOTS-COM communicator supports POTS and IP alarm signaling, reducing reliance on costly dedicated phone lines while providing optional cellular communication. The panel offers two programmable Form-C relays and one fixed trouble relay, with USB and Ethernet connectivity for remote/local programming via FS-Tools software.

Key Features:

• Supports 50 Addressable Devices: Accepts any combination of detectors and modules on a single SLC loop.
• Dual Communication Protocols: FlashScan and CLIP support for broad Notifier device compatibility.
• Pre-Installed IPOTS-COM: Built-in dual communicator (IP + POTS) with optional cellular via CLSS Pathway.
• Flexible Power Input: Accepts 120/240 VAC auto-sensing at 50/60 Hz, 3.25 A max.
• Two Class A/B NAC Circuits: Each rated at 250 mA; total shared output 2.7 A for NACs and ANN-BUS.
• Battery Backup Support: Holds two 12 V, 18 AH batteries for 24 V backup (7–18 AH supported).
• Programming and Diagnostics: USB and Ethernet access for full programming and system diagnostics via FS-Tools.
• Integrated Relays: Two programmable Form-C relays for custom logic and one fixed trouble relay.
• Event History Storage: USB port enables history export, status review, and walk-test data access.
• UL and NFPA Compliant: Listed for use in commercial fire detection applications across the U.S. and internationally.

The NFW-50X delivers enhanced control, programming flexibility, and modern connectivity in a compact, intelligent FACP designed for advanced fire system performance.
