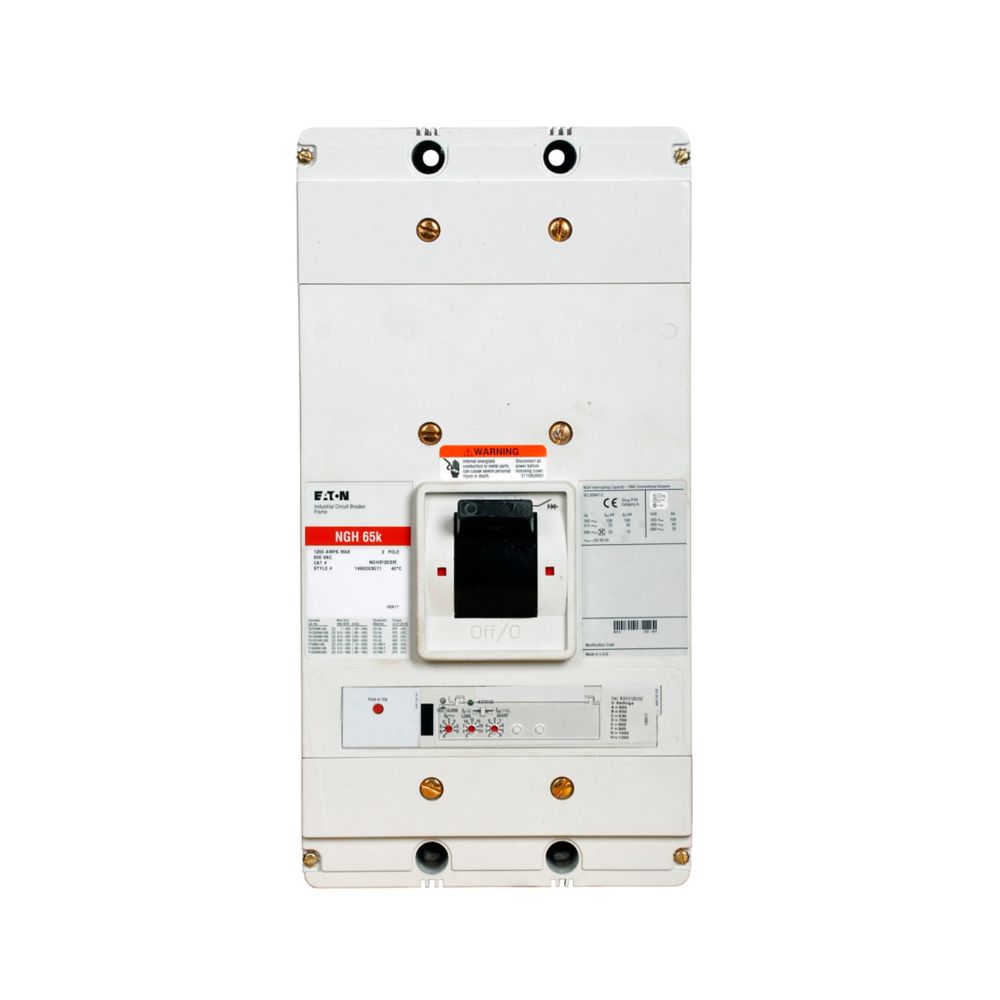

NGH312036E | Eaton Cutler-Hammer Series G Electronic Molded Case Circuit Breaker 1200A 3-Pole LSIG
- Regular price
- $9,605.00
- Sale price
- $9,605.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NGH312036E
Description
The Eaton Cutler-Hammer NGH312036E is a Series G electronic molded case circuit breaker engineered for high-capacity industrial power distribution systems. This three-pole breaker is rated at 1200 A and operates at up to 480 VAC using a Digitrip 310 RMS electronic trip unit. The NGH312036E provides advanced LSIG protection to ensure precise and dependable response to complex fault conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton Cutler-Hammer |
| Category | Molded Case Circuit Breaker |
| Part Number | NGH312036E |
| Subcategory | Molded Case / 3-Pole |
| Series / Family | Series G |
| Breaker Type | NGH |
| Frame Type | NG Frame |
| Number of Poles | 3 |
| Amperage Rating | 1200 A |
| Voltage Rating | 600 VAC |
| Operating Voltage | 480 VAC |
| Phase | 3 |
| Trip Unit Technology | Electronic, Digitrip 310 RMS |
| Protection Functions | LSIG – Long-Time, Short-Time, Instantaneous, Ground Fault |
| Interrupt Rating | 65 kA at 480 V / 100 kA at 240 V |
| Connection Type | Bolt-On |
| Protection Type | Solid State |
Information About NGH312036E
The NGH312036E is part of Eaton’s Cutler-Hammer Series G product line, designed for demanding industrial and commercial electrical systems requiring advanced protection and high interrupting performance. Built on the NG frame platform, it integrates Digitrip 310 RMS electronic technology to provide accurate sensing and coordinated LSIG protection. The breaker is configured as a three-pole unit suitable for three-phase systems operating at high current levels. Its design supports applications where precise fault discrimination, system reliability, and personnel safety are critical.
Key Features:
- Series G NG-Frame Construction: Designed for high-current industrial power distribution with robust mechanical and electrical performance.
- Digitrip 310 RMS Electronic Trip Unit: Provides accurate RMS sensing and advanced LSIG protection for improved system coordination.
- 1200 Amp Continuous Rating: Supports large feeders and main distribution circuits in high-demand installations.
- Three-Pole Configuration: Ensures full protection and isolation of three-phase electrical systems.
- High Interrupting Capacity: Rated up to 100 kA at 240 V and 65 kA at 480 V to safely clear severe fault currents.
- LSIG Protection Functions: Enables comprehensive protection against overloads, short-time faults, instantaneous faults, and ground faults.
- Bolt-On Connection Design: Supports secure installation and reliable electrical connections in switchgear and distribution equipment.
The NGH312036E delivers the reliability and precision required for advanced overcurrent protection in Eaton Cutler-Hammer Series G industrial power distribution systems.
