Product Description P/N: NGH312039E

Description / Specifications

Description

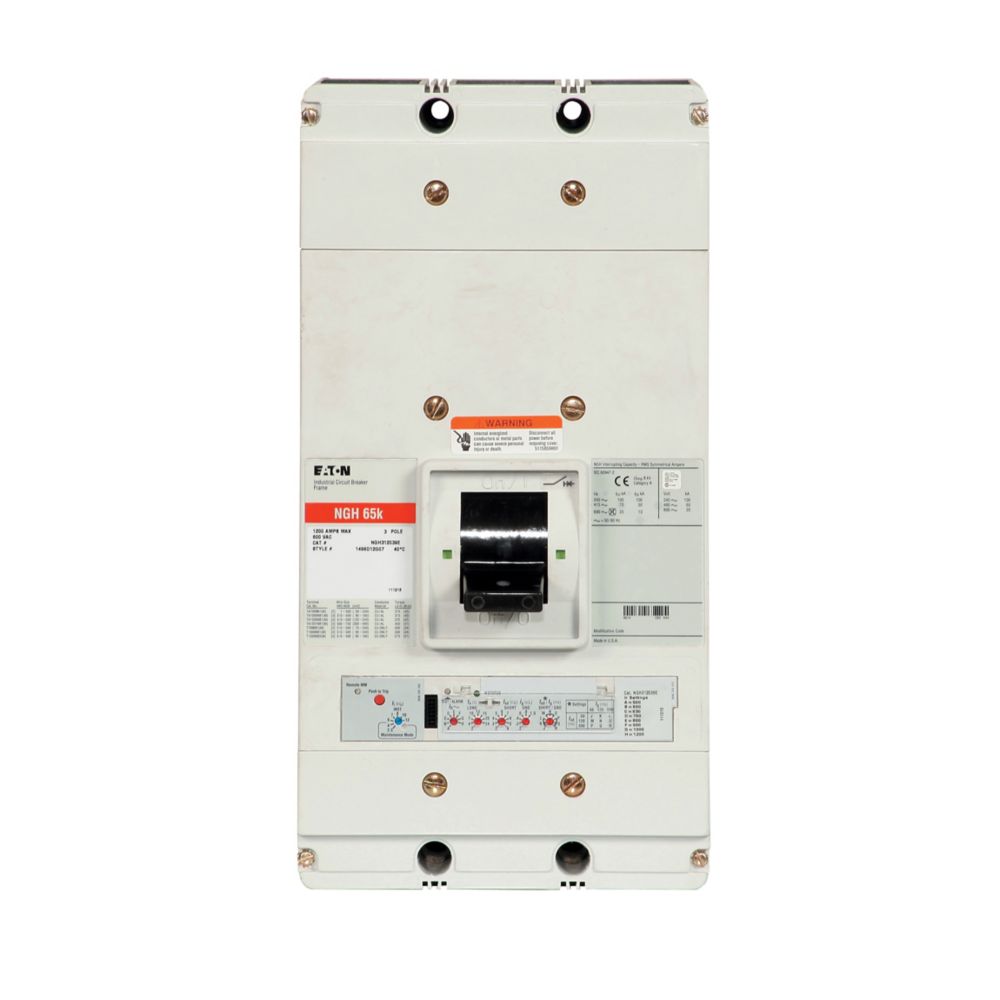

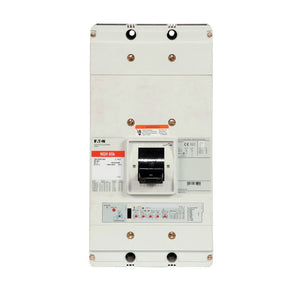

The NGH312039E is an Eaton Series G electronic molded case circuit breaker designed for industrial applications. It features an NG-frame, equipped with a Digitrip 310 RMS electronic trip unit with ALSIG and maintenance mode trip functionalities. This three-pole breaker has a current rating of 1200A and a voltage rating of 480 Vac. It offers an interrupting capacity of 100 kAIC at 240 Vac and 65 kAIC at 480 Vac, ensuring efficient protection against overcurrents. The breaker supports line/load connections and operates on a 50/60 Hz frequency. Additionally, it is rated for 80% continuous duty.



Technical Specifications

Product Name

Eaton Series G electronic molded case circuit breaker

Catalog Number

NGH312039E

UPC

786685475622

Product Length/Depth

5.5 in

Product Height

16 in

Product Width

8.25 in

Product Weight

45 lb

Type

Complete breaker

Amperage Rating

1200 A

Voltage Rating

480 Vac

Trip Type

Electronic ALSIG with maintenance mode

Circuit Breaker Type

NG

Rating

80% rated

Series

Series G

Terminals

Line and load

Frame

NG

Frequency Rating

50 to 60 Hz

Mounting Hardware

Imperial

Interrupt Rating

65 kAIC at 480 Vac



100 kAIC at 240 Vac

Number of Poles

Three-pole



Information About NGH312039E

The NGH312039E is an electronic molded case circuit breaker manufactured by Eaton as part of the Series G lineup. It features an NG-frame design and is equipped with a Digitrip 310 RMS mechanism. This circuit breaker operates with an Electronic ALSIG trip system, incorporating maintenance mode functionality. It is configured as a three-pole unit with an amperage rating of 1200A and a voltage rating of 480 Vac.

The NGH312039E boasts impressive interrupt ratings, offering 100 kAIC at 240 Vac and 65 kAIC at 480 Vac, ensuring reliable protection against overcurrent conditions. It is designed to handle both line and load connections and is compatible with Imperial mounting hardware.

Operating at a frequency range of 50/60 Hz, this circuit breaker is suitable for a wide range of applications. Additionally, it is rated for 80% duty cycle, ensuring optimal performance under continuous operating conditions.
