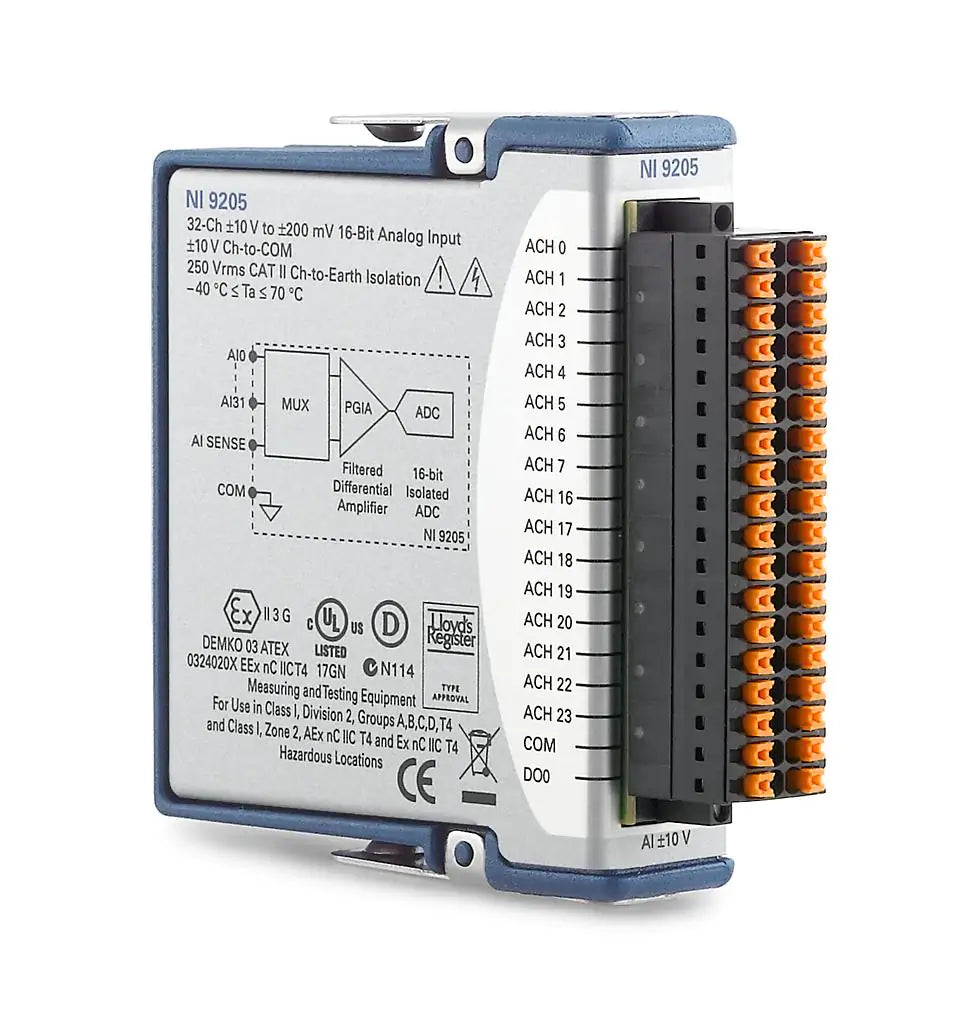

NI-9205 | National Instruments 32-Channel Voltage Input Module
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NI-9205
Description
The NI-9205 National Instruments 32-Channel Voltage Input Module offers precise analog input with a versatile selection of programmable voltage ranges. Designed for high-speed data acquisition, it provides reliable overvoltage protection and isolation, making it ideal for industrial and test applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | National Instruments |
| Category | PLCs and Accessories |
| Part Number |
NI-9205 |
| Subcategory | PLC Expansion Modules |
| Analog Input Voltage Range | -1 V to 1 V, -10 V to 10 V, -200 mV to 200 mV, -5 V to 5 V |
| Enclosed | Yes |
| Analog Input Resolution | 16 bits |
| Maximum Sample Rate | 250 kS/s |
| Maximum Number of Single-Ended Analog Input Channels | 32 |
| Supported Hardware Platform | C Series |
| Simultaneous Sampling | No |
Information About NI-9205
The NI-9205 is a 32-channel voltage input module designed for accurate analog measurements in industrial systems. It supports both single-ended and differential inputs with four programmable voltage ranges, including -1 V to 1 V, -10 V to 10 V, -200 mV to 200 mV, and -5 V to 5 V. Featuring 16-bit resolution and a maximum sample rate of 250 kS/s, this module balances high-speed performance with a cost-effective design. It includes up to 60 V of overvoltage protection between channels and common, as well as a channel-to-earth ground double isolation barrier, ensuring noise immunity, safety, and protection against transient overvoltage of up to 1,000 Vrms.
The NI-9205 is an excellent choice for applications requiring reliable, high-performance analog input with enhanced protection features.
Key Features
- 32 channels of analog input with four programmable voltage ranges.
- 16-bit resolution for high-precision measurements.
- Maximum sample rate of 250 kS/s for fast data acquisition.
- Up to 60 V of overvoltage protection and 1,000 Vrms transient overvoltage protection.
- Double isolation barrier between channel-to-earth ground for safety and noise immunity.
- Supports both single-ended and differential analog inputs.
The NI-9205 is a high-performance and cost-effective module that ensures accurate data collection and robust protection in demanding industrial environments. Its versatility, protection features, and high-speed capabilities make it an essential component for multifunctional measurement systems.
