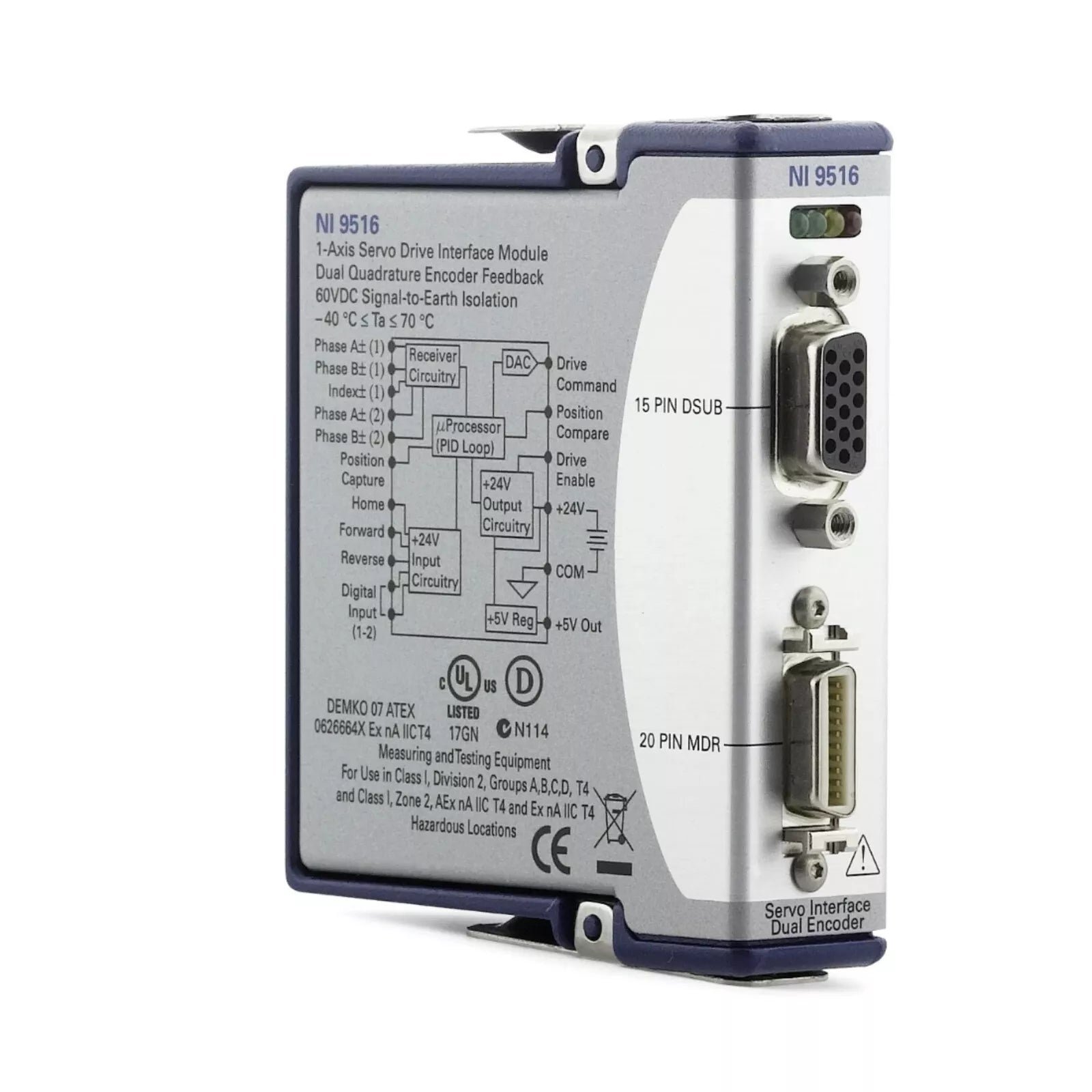

NI-9516 | National Instruments One-Axis Servo Drive Interface Module
- Regular price
- $2,044.00
- Sale price
- $2,044.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NI-9516
Description
The National Instruments NI-9516 is a one-axis servo drive interface module designed to integrate with motion control systems. It provides a +5 V output and features digital input capabilities, making it suitable for a wide range of industrial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | National Instruments |
| Category | Drives |
| Part Number |
NI-9516 |
| Subcategory | Drive Interface Module |
|
Power consumption from chassis
|
Active mode ............................... 950 mW max
Sleep mode ................................. 0.4 mW max
|
| Thermal dissipation (at 70 °C) |
Active mode ............................... 1.5 W max
Sleep mode ................................. 0.4 mW max
|
| Vsup input | 19 to 30 V, 150 mA max |
| Output Voltage | +5 V DC |
| Weight | 155 g (5.5 oz) |
Information About NI-9516
The NI-9516 is a versatile module designed to interface with one-axis servo drives, allowing seamless communication and control within motion control systems. It operates with an external power supply, which can be connected to the V input terminal for consistent operation. The module offers a +5 V output to power connected devices, and it includes a digital input with a 0-1 logic level for triggering specific actions or events. This module is commonly used in industrial automation, robotics, and other motion control applications where precise servo control is required. Its compact design and simple integration make it an efficient choice for various automation setups.
Key Features:
- One-Axis Servo Drive Interface: Provides direct connection to one-axis servo drives for precise motion control.
- +5 V Output: Supplies power to connected devices, supporting smooth operation.
- Digital Input (0-1 Logic): Enables input triggering, offering control over various system operations.
- External Power Supply Requirement: Allows for flexibility in power configuration by using an external power supply.
- Compact and Efficient: Easy to integrate into existing motion control systems for enhanced functionality.
The NI-9516 interface module enhances servo control applications by providing reliable digital inputs and power outputs. Its external power supply flexibility and easy integration make it ideal for dynamic motion control systems.
