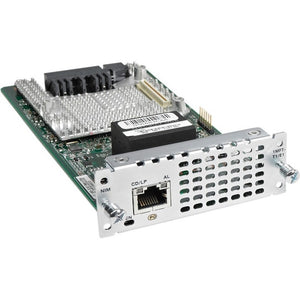

NIM-1MFT-T1/E1 | Cisco Multi-Flex Trunk Router Module
- Regular price
- $989.00
- Sale price
- $989.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NIM-1MFT-T1/E1
Description
The Cisco NIM-1MFT-T1/E1 is a 1-port network interface module (NIM) that provides flexible digital T1/E1 connectivity for Cisco ISR 4000 Series routers.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Networking Hardware
|
| Part Number | NIM-1MFT-T1/E1 |
| Subcategory |
Router Interface Modules (NIMs)
|
|
Serial Data (channel-group)
|
2 per port |
|
PRI (pri-group)
|
1 per port |
|
Transmit Bit Rate
|
1.544 Mbps ±50 bps/32 ppm |
|
Receive Bit Rate
|
1.544 Mbps ±50 bps/32 ppm |
|
AMI Ones Density
|
Enforced for n x 56-kbps channels |
|
Framing Format
|
D4 (Super Frame [SF]) and Extended Super Frame (ESF) |
|
Output Level
|
0, -7.5 or -15 dB |
|
Input Level
|
+1 dB0 down to -24 dB0 |
|
Dimensions (H x W x D)
|
1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm) |
|
Operating Temperature
|
0 to 50°C (32 to 122°F) |
|
Storage Temperature
|
-20 to +65°C (-4 to 148°F) |
|
Relative Humidity
|
10 to 85% noncondensing operating; 5 to 95% noncondensing, nonoperating |
|
Weight
|
0.40 lbs |
Information About NIM-1MFT-T1/E1
The Cisco NIM-1MFT-T1/E1 is a versatile 1-port Multiflex Trunk (MFT) Network Interface Module (NIM) designed for the Cisco 4000 Series Integrated Services Routers (ISRs). It supports both T1 and E1 interfaces, facilitating data and voice applications.
Key Features:
-
Flexible Interface Support: Configurable for T1 or E1 operation, accommodating various regional requirements.
-
Integrated CSU/DSU: Eliminates the need for external Channel Service Unit/Data Service Unit devices, simplifying deployment.
-
Voice and Data Integration: Supports applications such as WAN access, voice connectivity to PBXs, and integrated voice/data services.
-
Onboard DSP Slot: Includes a slot for a Packet Voice Digital Signal Processor Module 4 (PVDM4), enabling enhanced voice functionalities.
-
Independent Clocking: Allows each port to be clocked from an independent source for data applications, enhancing flexibility.
-
Interface: Single RJ-48 port supporting T1 or E1 connections.
-
Data Rates: Up to 1.544 Mbps for T1 and 2.048 Mbps for E1.
-
Dimensions (H x W x D): Approximately 1.25 x 3.5 x 7.24 inches (31.8 x 88.9 x 183.9 mm).
-
Weight: Approximately 0.4 lb (181 grams).
