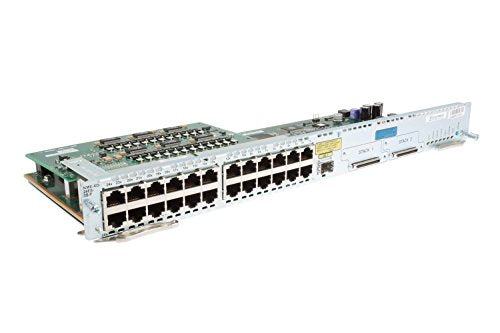

                    NME-XD-24ES-1S-P | Cisco Router Network Module
- Regular price
- $377.00
- Sale price
- $377.00
- Regular price
-

Couldn't load pickup availability
Do you need help?


      Product Description P/N: NME-XD-24ES-1S-P
Description
The Cisco NME‑XD‑24ES‑1S‑P is a dual-wide EtherSwitch service module for Cisco routers, providing integrated 24-port 10/100 Mbps switching, inline Power over Ethernet (PoE), and a 1‑Gigabit SFP uplink via StackWise backplane.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category | Networking Hardware |
| Part Number | NME-XD-24ES-1S-P |
| Subcategory | EtherSwitch Service Module |
| Ports | 24 x 10/100 Mbps Ethernet Ports |
| POE | Yes |
| Stacking Support | StackWise |
| SFP Ports | 1 x SFP Port |
| Software | SMI |
| Compatibility | Cisco Routers |
| Maximum Power Consumption | 60W |
| Stacking Bandwidth | 32 Gbps |
| Forwarding Bandwidth | 12.8 Gbps |
| Switching Bandwidth | 24 Gbps |
| VLAN IDs Supported | 4096 |
| MAC Address Table Size | 8000 entries |
| Network Management | SNMP, CLI, RMON |
| QoS Support | Yes |
| Dimensions (WxDxH) | 8.51 x 7.15 x 1.58 inches |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Operating Humidity | 10% to 85% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Weight | 1.36 kgs |
Information About NME-XD-24ES-1S-P
The Cisco NME‑XD‑24ES‑1S‑P is a dual-wide EtherSwitch Service Module for Cisco routers, offering integrated Power over Ethernet (PoE) and high-density switching in a compact form factor. Designed for 2800 and 3800 Series routers, it delivers enhanced LAN capabilities with minimal footprint.
Key Features:
-
Product Type: EtherSwitch Service Module (Extended Double‑Wide)
-
Stacking: Dual StackWise backplane connectors for switch stacking
-
Router Compatibility: Supported in Cisco 2821, 2851, 3800 Series (3825/3845) routers (one per chassis)
-
PoE Capability: Powers IEEE 802.3af devices (Cisco pre‑standard and standard); up to 15 W per port, total power based on router PSU
-
Compliance: Meets NEBS GR‑1089 for intra-building shielded installations
The NME‑XD‑24ES‑1S‑P combines robust LAN switching, PoE, and stacking functionality, making it ideal for branch-office deployments. It simplifies network infrastructure by enabling modular expansion and powering edge devices directly from the router, all while supporting enterprise-grade reliability and scalability.
