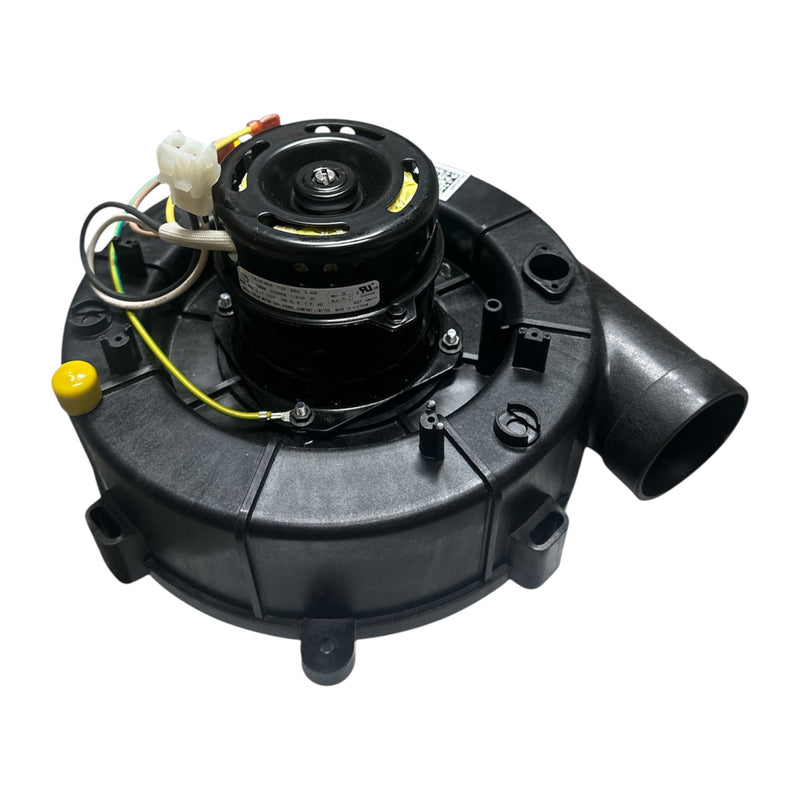

Nordyne 7021-12001 1/31 HP 115V 3300 RPM Draft Inducer Motor
- Regular price
- $335.00
- Sale price
- $335.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 7021-12001
Description
The Nordyne 7021-12001 is an OEM replacement draft inducer motor assembly designed for high-efficiency residential gas furnaces. Operating at 1/31 HP, 115V, and 3300 RPM, it creates mechanical draft to pull combustion exhaust gases through restrictive heat exchangers. This single-speed draft motor ensures reliable venting and initial pressure switch proving before burner ignition.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Nordyne |
| Category | HVAC Equipment |
| Part Number | 7021-12001 |
| Subcategory | Inducer Motors |
| Horsepower | 1/31 HP |
| Voltage | 115 V |
| Current | 0.46 A |
| Frequency | 60 Hz |
| Speed | 3300 RPM (Single Speed) |
| Capacitor Rating | 6uF / 250V |
| Thermal Protection | T.P. (Thermally Protected) |
| Insulation Class | Class B |
| Application | Gas Furnace Draft Inducer |
| Weight | 3.8 lb |
Information About 7021-12001
The 7021-12001 is a critical combustion safety component manufactured by Nordyne to manage furnace exhaust displacement. Modern high-efficiency furnaces feature tight, multi-pass heat exchanger tubes that prevent flue gases from venting naturally via thermal convection. This motor powers a specialized blower wheel to force toxic combustion byproducts out through the vent pipe during every heating cycle. It operates as the initial component to activate upon a thermostat call for heat, creating the vacuum pressure required to close system safety switches.
Key Features:
- High-Efficiency Exhaust Venting: Generates mechanical draft to move flue gases through restrictive furnace heat exchangers.
- 3300 RPM Rated Speed: Maintains continuous high-velocity rotation for reliable combustion air displacement.
- 115V Single-Speed Design: Connects directly to standard furnace control board outputs drawing 0.46 Amps at 60 Hz.
- Integrated Thermal Protection: Built-in Class B insulation and thermal protection (T.P.) guard against motor overheating.
- Sealed Run Capacitor Included: Uses a 6uF / 250V run capacitor to deliver stable motor torque and smooth operation.
- Direct OEM Replacement: Engineered to match original factory mounting brackets and housing discharge ports.
The 7021-12001 delivers the reliability and precision required for safe furnace ignition and efficient combustion venting.
