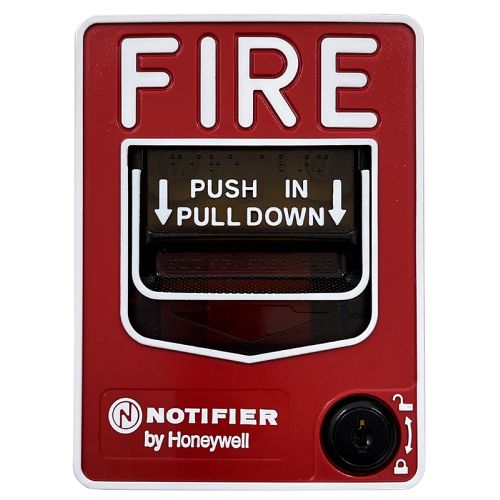

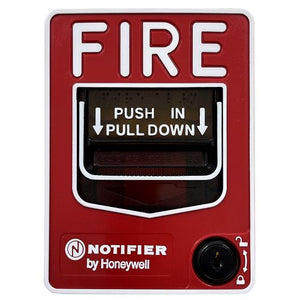

NOT-BG12LX | Notifier Addressable Manual Pull Station
- Regular price
- $227.00
- Sale price
- $227.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NOT-BG12LX
Description
The NOT‑BG12LX is part of Notifier’s advanced series of addressable manual fire alarm pull stations, engineered for precise integration with FireWarden and NSP‑25 intelligent control panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Safety Systems |
| Part Number | NOT-BG12LX |
| Subcategory | Safety Pull Switch |
| Device Type | Addressable Manual Fire Alarm Pull Station |
| Normal Operating Voltage | 24 VDC |
| Maximum Loop Voltage | 28.0 VDC (SLC) |
| Standby Current | 375 µA (SLC) |
| Alarm Current | 5 mA (SLC) |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Relative Humidity | 10% to 93% (non-condensing) |
| Activation Method | Dual Action (Push-In / Pull-Down) |
| Reset Method | Key-Lock Reset |
| LED Indicator | Bi-color LED (flashes in standby, solid in alarm) |
| Mounting Options | Surface or Semi-Flush (single/double gang or 4″ box) |
| Weight | 0.16 lbs |
Information About NOT-BG12LX
The NOT‑BG12LX is part of Notifier’s advanced line of addressable manual fire alarm pull stations, engineered for accurate manual alarm initiation in modern fire protection systems. Designed to work with FireWarden and NSP-25 panels, this dual-action device combines intuitive user interaction with precise addressable system integration. Its push-in, pull-down mechanism minimizes accidental activations, while a key-lock reset ensures secure system recovery. Built-in LED status feedback, ADA-compliant design, and flexible mounting options make the NOT‑BG12LX a reliable and versatile choice for a wide range of commercial installations.
Key Features:
- Dual-Action Activation: Requires a push-in followed by a pull-down motion to ensure intentional alarm engagement.
- Addressable Interface: Fully compatible with FireWarden and NSP-25 control panels for precise event tracking and diagnostics.
- Visual Status Feedback: Features a bi-color LED that flashes green in standby and glows red in alarm; "ACTIVATED" label appears on the handle when triggered.
- Key-Lock Reset: Allows secure post-alarm reset using a standard Notifier key.
- ADA Compliant: Meets ≤ 5 lb pull-force requirement and includes Braille labeling for accessible use.
- Flexible Mounting: Supports surface or semi-flush mounting on single-gang, double-gang, or 4" electrical boxes; optional trim ring available.
- Durable Construction: Built from textured red polycarbonate with a high-visibility finish for durability and ease of identification.
- Environmentally Rated: Operates from 32°F to 120°F (0°C to 49°C) and 10% to 93% non-condensing humidity.
- Low Power Draw: Consumes just 375 μA in standby and 5 mA in alarm for energy-efficient system integration.
The Notifier NOT‑BG12LX combines advanced addressable communication, intuitive activation, and robust construction into a compact, reliable device. Ideal for commercial and institutional fire alarm systems, it ensures high-performance manual signaling with dependable feedback and easy maintenance.
