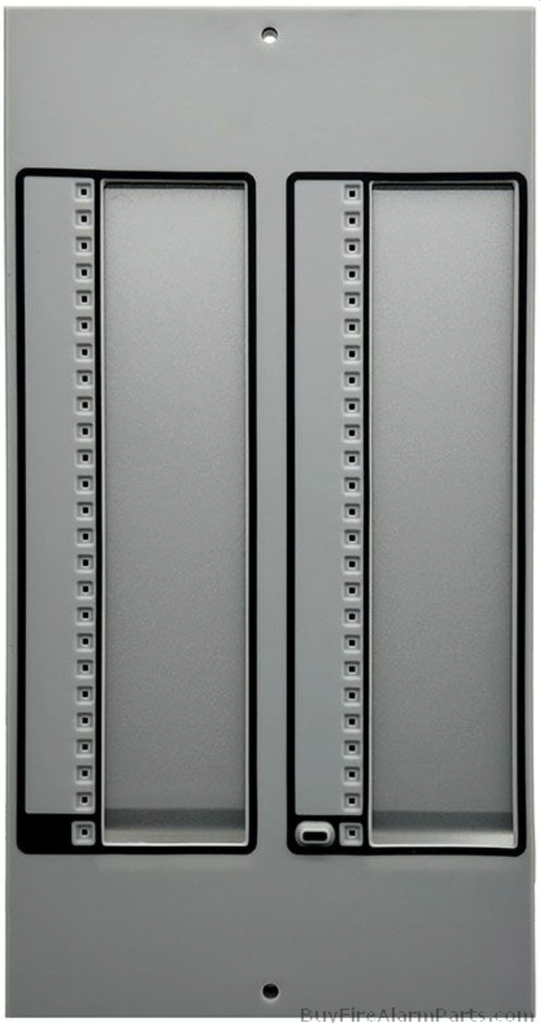

NOTIFIER ACM-48A ONYX ACS 48-Point Programmable LED Annunciator Module
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ACM-48A
Description
The NOTIFIER ACM-48A is an ONYX Series ACS Annunciator Control Module designed to provide remote LED indication of fire alarm system points and operating conditions. It includes 48 individually programmable active LEDs and can be expanded to a maximum of 96 annunciation points using one compatible AEM-48A expander module.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | NOTIFIER |
| Category | Fire Alarm Systems |
| Part Number | ACM-48A |
| Subcategory | LED Annunciator Modules |
| Product Series | ONYX ACS Series |
| Product Type | Annunciator Control Module |
| Onboard Annunciation Points | 48 |
| Maximum Annunciation Points | 96 with AEM-48A |
| LED Colors | Red, Green, Yellow Programmable |
| LED Programming Groups | Groups of 24 |
| Status Indicators | System Trouble, On-Line/Power |
| Audible Indicator | Local Piezo Sounder |
| Local Control | Silence/Acknowledge Switch |
| Communication Interface | EIA-485 |
| Supply Voltage | 24 VDC Nominal (17–28 VDC) |
| Current Draw, Normal | 16 mA |
| Current Draw, Alarm | 70 mA Maximum |
| Dimensions | 8.375 × 4.375 in (21.27 × 11.11 cm) |
| Weight | 2 lb (0.91 kg) |
Information About ACM-48A
The ACM-48A is a NOTIFIER ONYX Series ACS annunciator module designed for remote status indication within compatible intelligent fire alarm systems. Its front panel contains 48 point-active LEDs that can be programmed in groups of 24 for red, green, or yellow indication, along with dedicated System Trouble and On-Line/Power indicators. The module communicates with compatible control equipment through an EIA-485 serial interface and operates from nominal 24 VDC system power. One AEM-48A expander can be connected to increase the available annunciation capacity to 96 points, subject to the capabilities of the connected fire alarm control panel.
Key Features:
- 48 Annunciation Points: Provides 48 individually controlled LED points for remote fire alarm system status indication.
- Programmable LED Colors: Active LEDs can be configured in groups of 24 for red, green, or yellow indication.
- 96-Point Expansion: Supports one AEM-48A expander module to provide up to 96 total annunciation points.
- System Status Indicators: Includes dedicated System Trouble and On-Line/Power LEDs for general annunciator status.
- Local Audible Indication: Incorporates a piezo sounder for audible notification of alarm and trouble conditions.
- Silence/Acknowledge Control: Provides a local switch for silencing or acknowledging annunciator audible indications.
- EIA-485 Communication: Uses serial communication for connection to compatible NOTIFIER fire alarm control equipment.
- 24 VDC Operation: Operates from nominal 24 VDC power supplied by the control panel or an appropriate remote power source.
The ACM-48A delivers the reliability and precision required for remote point annunciation and system-status indication in intelligent fire alarm systems.
