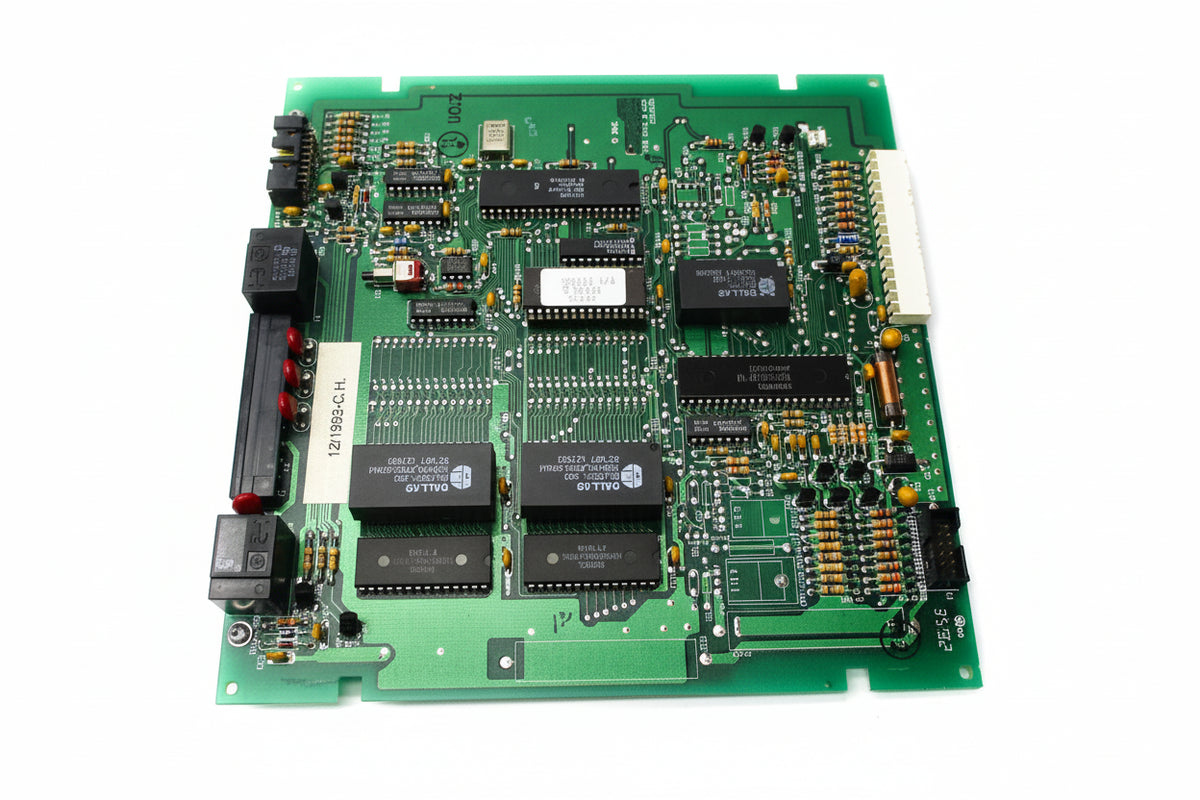

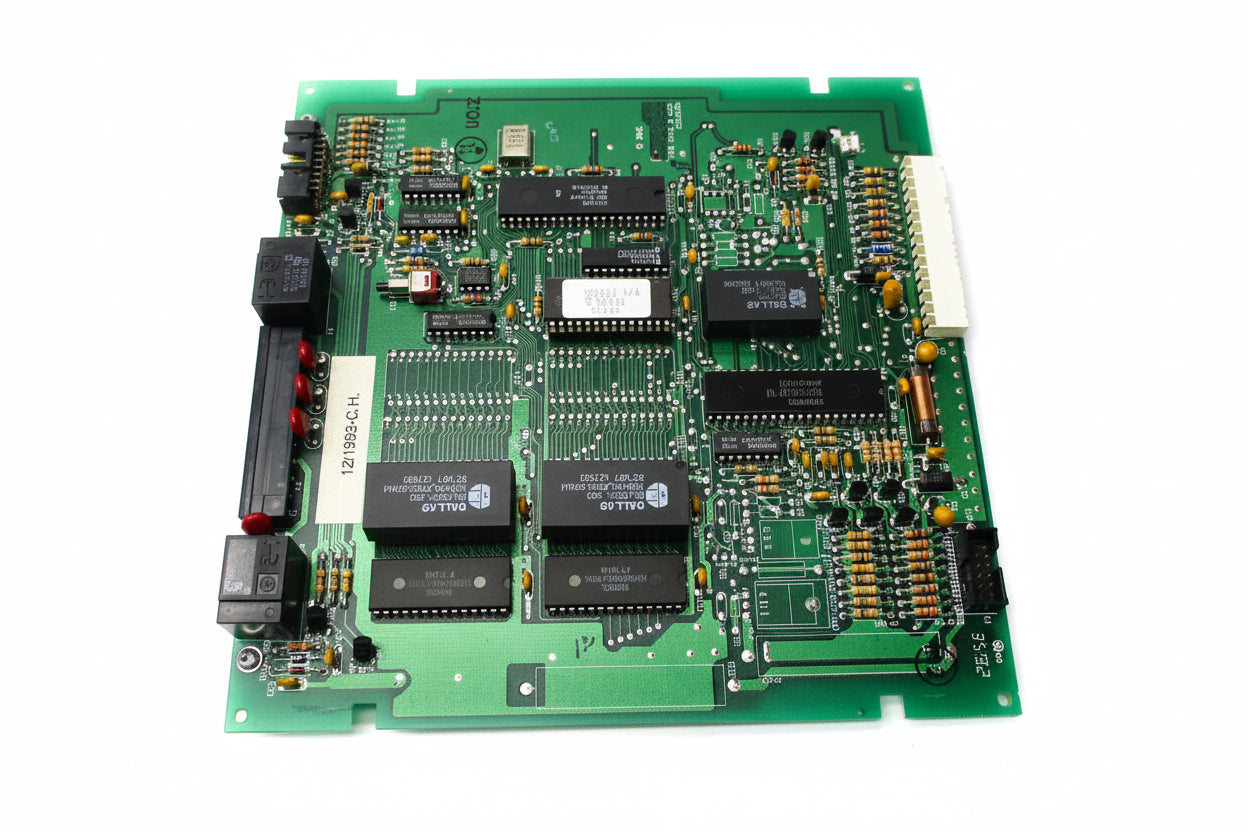

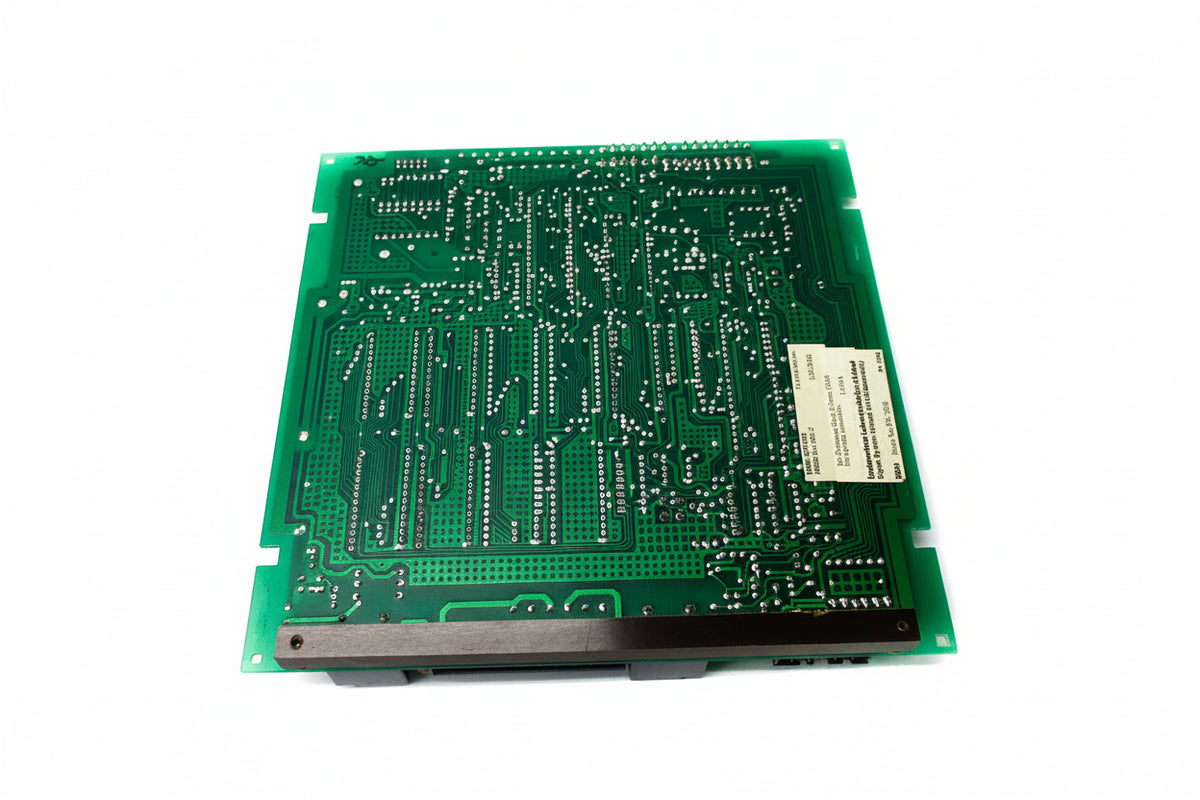

Notifier AM2020 Expandable Addressable Fire Alarm Control Panel Chassis
- Regular price
- $3,589.00
- Sale price
- $3,589.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AM2020
Description
The Notifier AM2020 is a large-scale, modular addressable fire alarm control panel designed to monitor and manage complex commercial life safety networks. This central processing hub utilizes intelligent signaling line circuits to communicate with hundreds of remote smoke detectors, pull stations, and control modules simultaneously. By providing rapid digital fault detection and comprehensive zone management, the panel ensures precise emergency response and facility evacuation in heavy-duty industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier (Honeywell) |
| Category | Fire Alarm Parts |
| Part Number | AM2020 |
| Subcategory | Control Panels |
| Maximum SLC Loops | 10 |
| Maximum Addressable Devices | 1,980 (99 Detectors / 99 Modules per Loop) |
| Operating Voltage | 24 VDC |
| System Architecture | Modular Card Chassis |
| Programming Language | Boolean Logic |

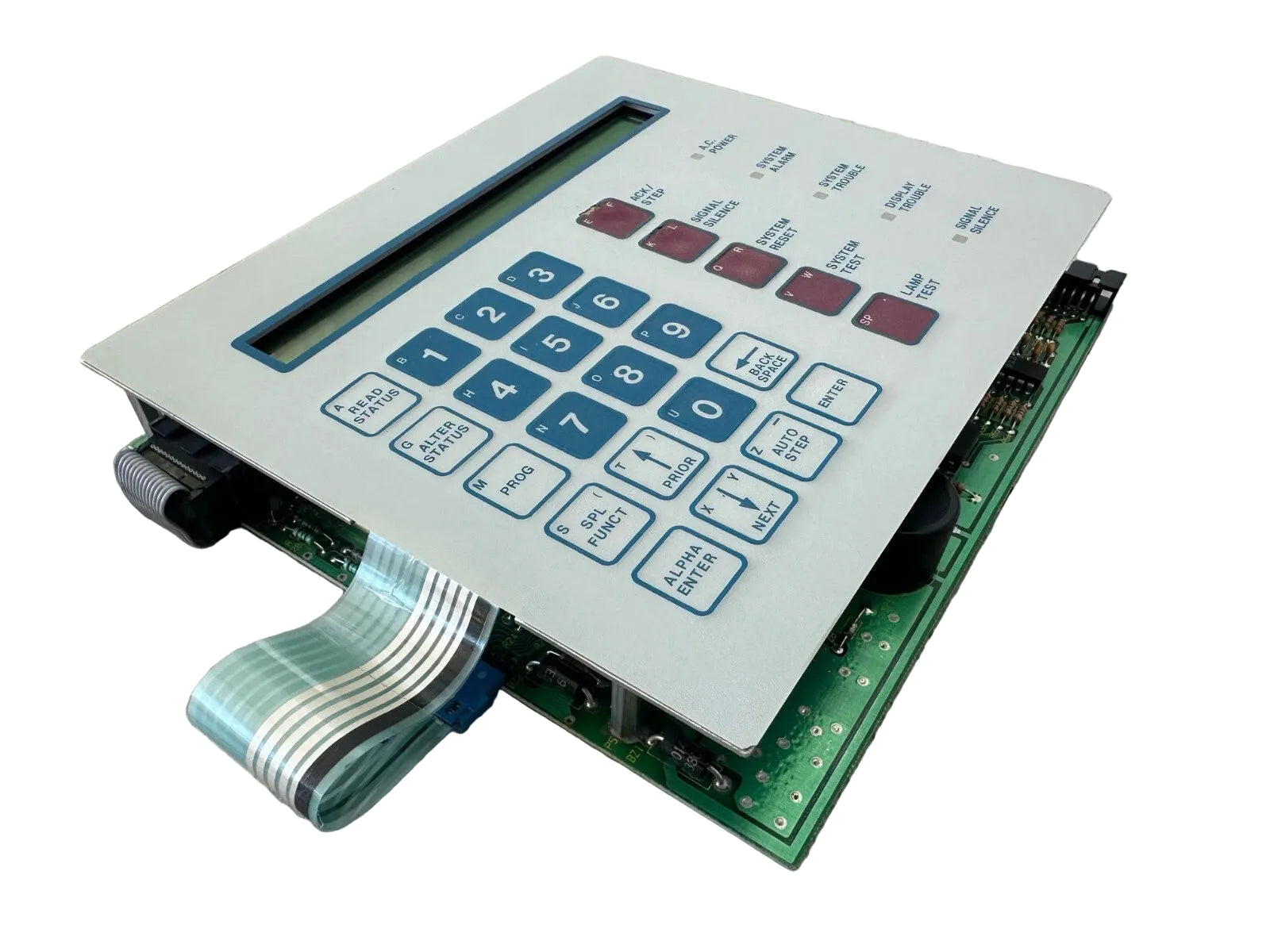

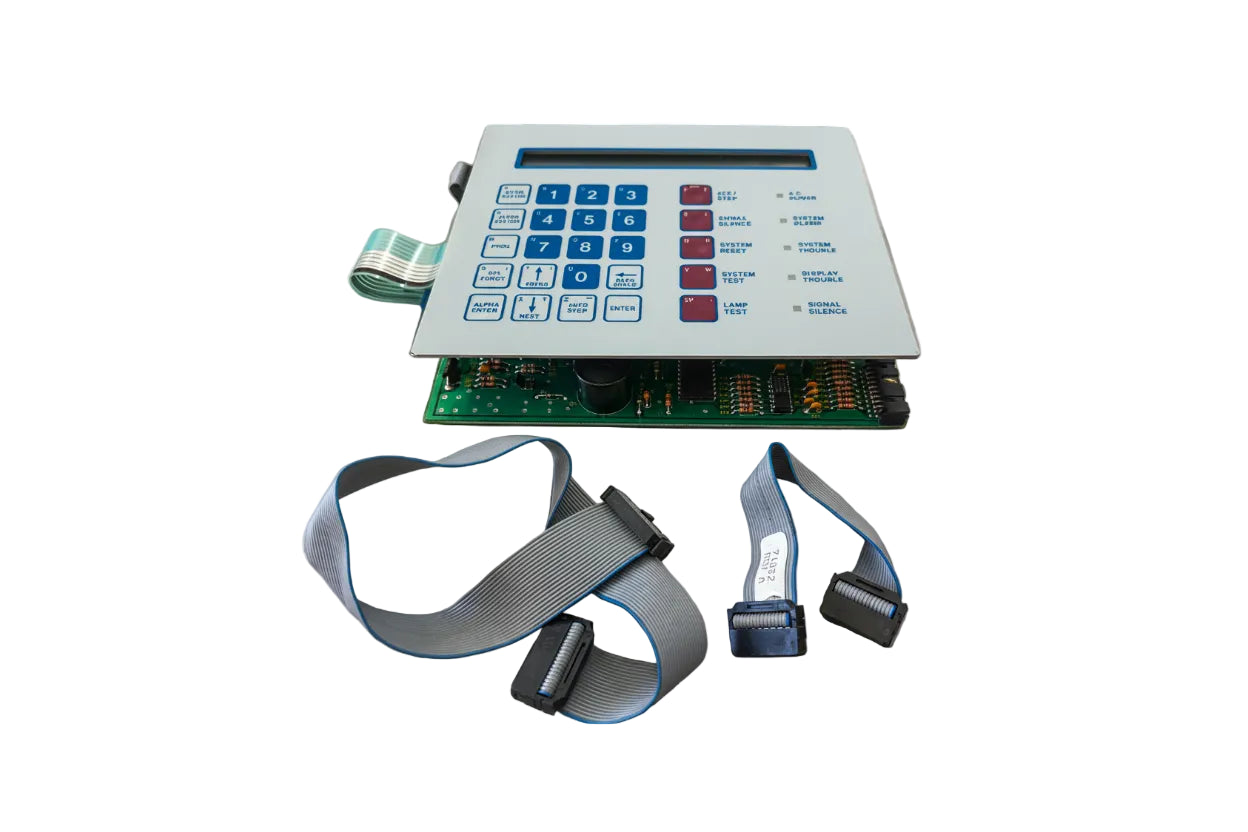

| Display Compatibility | Alphanumeric LCD / Remote CRT |
| Networking Interface | RS-485 / Noti-Fire-Net Compatible |
| Enclosure Mounting | Surface or Semi-Flush Backbox |
| Weight | 35.0 lbs |
Information About AM2020
The AM2020 is an expandable central processing architecture that forms the backbone of classic Notifier intelligent fire alarm networks. It features a modular, card-based chassis system that allows technicians to scale the network from a single signaling line circuit up to ten independent loops, supporting a maximum of 1,980 addressable devices. Fire safety engineers utilize this primary control node within high-rise buildings, university campuses, and manufacturing plants requiring extensive, highly customized evacuation logic. The main processing unit supports integration with legacy network control annunciators and CRT displays, allowing facility operators to continuously monitor detailed, real-time diagnostic data across the entire life safety grid.
Key Features:
● Massive Device Capacity: Supports up to 10 signaling line circuits to manage a maximum of 1,980 intelligent addressable detectors and modules.
● Modular Architecture: Utilizes a flexible, card-based chassis that allows facility managers to expand network capabilities as building infrastructure grows.
● Intelligent Device Polling: Communicates continuously with remote field devices to verify operational status, sensitivity levels, and exact alarm locations.
● Custom Evacuation Logic: Enables complex Boolean programming to dictate highly specific relay activations, door releases, and notification sequences during an event.
● Legacy Annunciator Support: Integrates flawlessly with compatible network control station terminals and remote alphanumeric displays for centralized monitoring.
● Non-Volatile Memory: Retains all critical system programming, historical event logs, and zone configurations securely during complete facility power losses.
● Ground Fault Detection: Actively monitors all field wiring for electrical shorts or ground faults to prevent critical communication failures.
The AM2020 delivers the reliability and precision required for comprehensive fire detection and scalable life safety management in massive commercial facilities.
