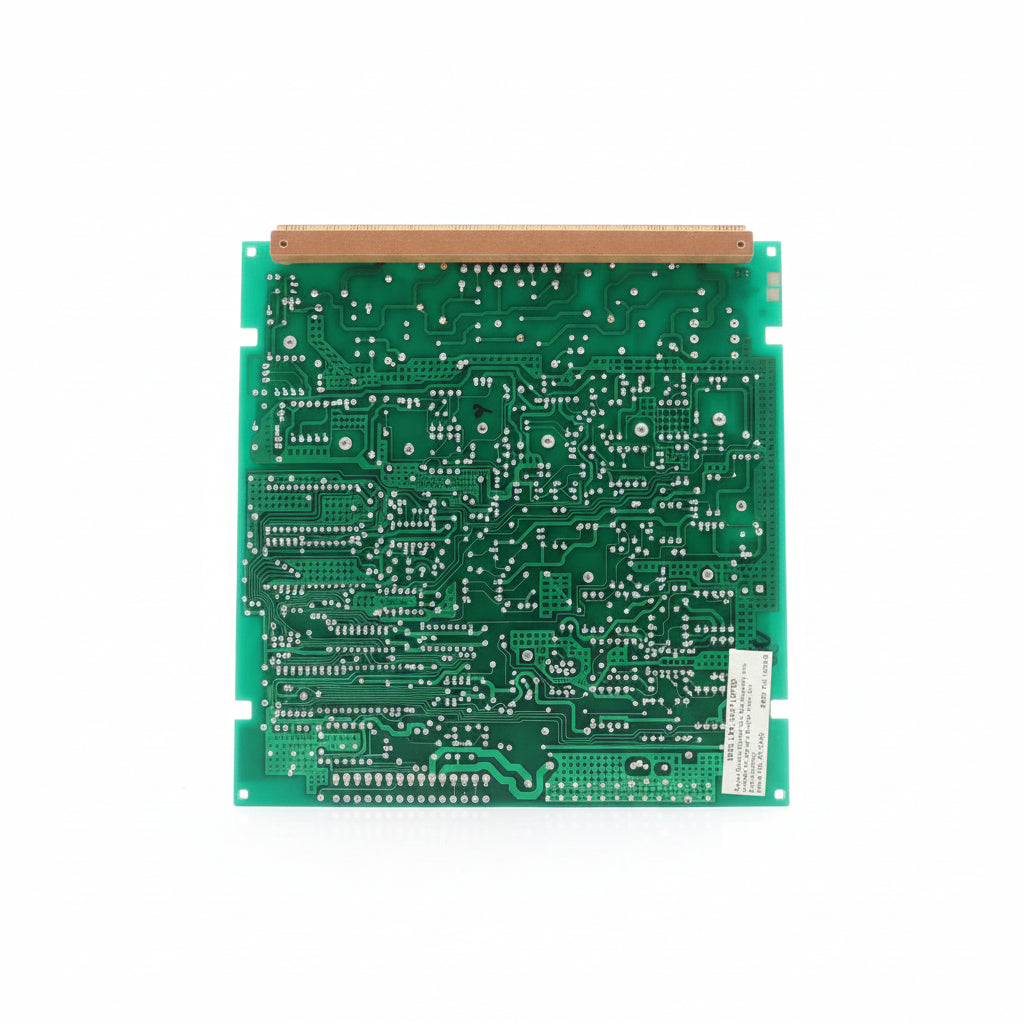

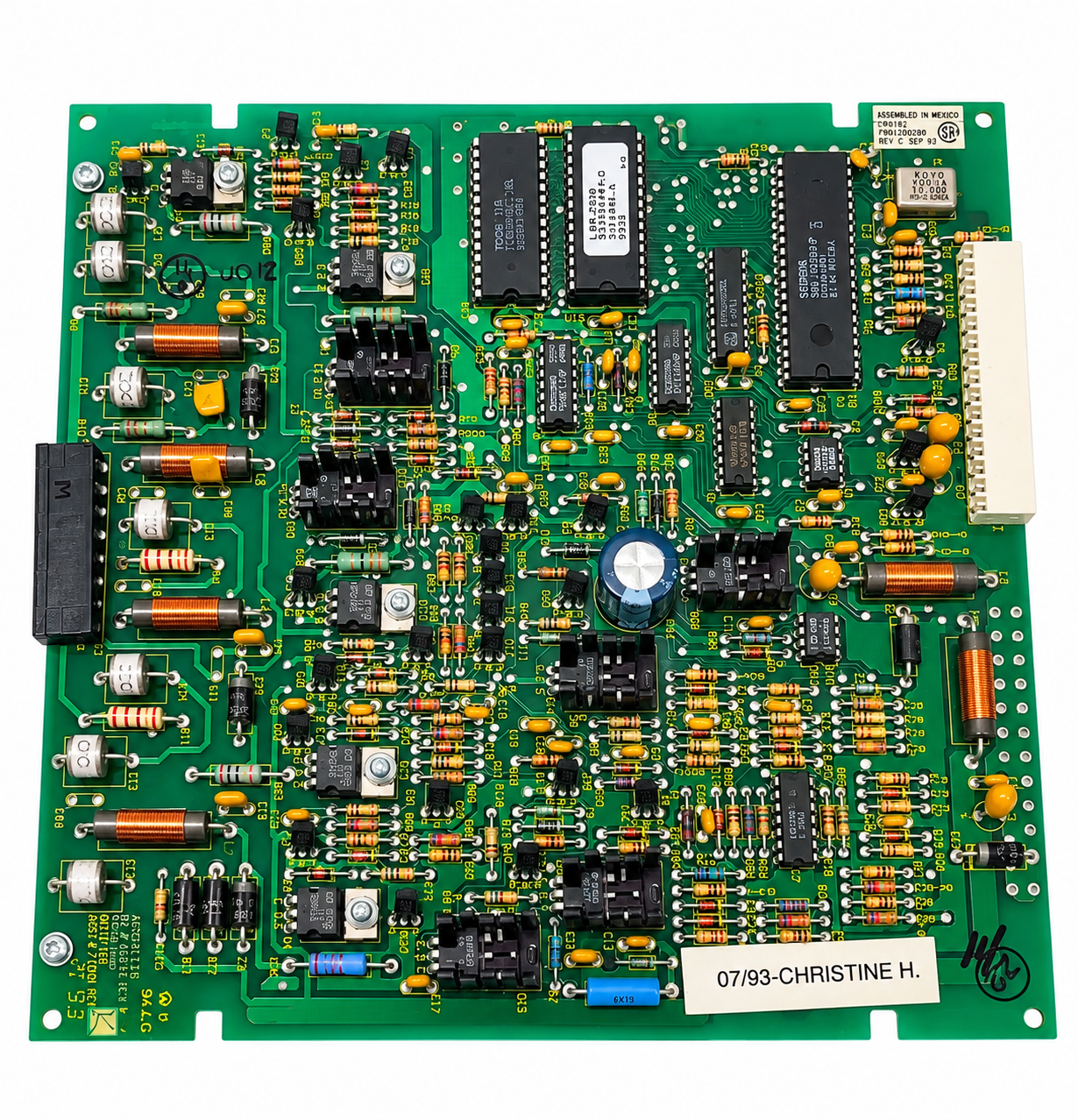

Notifier AM2020-LIB LIB-200 Loop Interface Board for AM2020 Fire Alarm Panel
- Regular price
- $707.00
- Sale price
- $707.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AM2020-LIB
Description
Notifier AM2020-LIB is a LIB-200 loop interface board assembly designed for the AM2020 intelligent fire alarm control panel. It provides the interface between the panel CPU and addressable signaling line circuit devices, allowing communication with intelligent detectors, monitor modules, and control modules.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Safety |
| Part Number | AM2020-LIB |
| Subcategory | Fire Alarm Loop Interface Boards |
| Product Type | Loop Interface Board Assembly |
| Associated Board | LIB-200 |
| Application | AM2020 / AFP1010 Fire Alarm Control Panels |
| SLC Circuits | 1 |
| Communication | Intelligent Addressable SLC |
| Supported Devices | Up to 99 intelligent detectors and 99 addressable modules per loop |
| Wiring Styles | NFPA Style 4, Style 6, Style 7 |
| Maximum SLC Wiring | Up to 10,000 ft (3,048 m), subject to wiring configuration |
| Loop Function | Alarm initiating device and output device communication |
| Weight | 0.23 kg |
Information About AM2020-LIB
The AM2020-LIB is the assembly designation associated with the LIB-200 loop interface board used in Notifier AM2020 systems. The LIB-200 provides a single signaling line circuit and communicates with intelligent and addressable devices connected to the SLC loop. The AM2020 can support up to ten LIB SLC loops, with each loop supporting up to 99 intelligent detectors and 99 addressable control or monitor modules. The loop can be configured for NFPA Style 4 or Style 6/7 operation depending on system requirements and installation configuration.
Key Features:
- LIB-200 Interface: Provides loop interface functionality for compatible AM2020 fire alarm control panels.
- Addressable Communication: Enables two-way communication between the panel and intelligent field devices.
- Single SLC Loop: Provides one signaling line circuit for connected addressable devices.
- Intelligent Device Support: Interfaces with intelligent detectors, monitor modules, and control modules.
- Flexible Wiring: Supports applicable NFPA Style 4, Style 6, and Style 7 SLC configurations.
- AM2020 Compatibility: Designed specifically for the Notifier AM2020/AFP1010 platform.
- Local Mode Operation: Includes local-mode functionality to maintain selected loop operations during CPU communication failure.
- System Expansion: Allows additional addressable loop capacity to be integrated into an AM2020 installation.
The AM2020-LIB delivers the addressable loop communication and device-interface functionality required for compatible Notifier AM2020 fire alarm systems.
