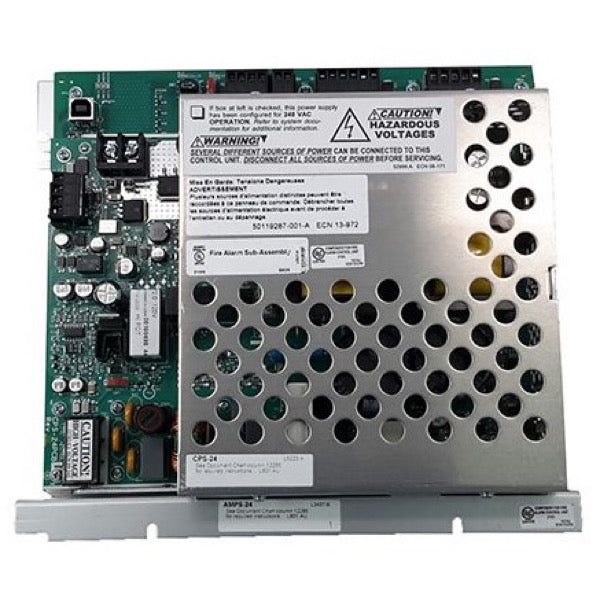

Notifier AMPS-24E Addressable 24VDC Power Supply and Battery Charger
- Regular price
- $1,112.00
- Sale price
- $1,112.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AMPS-24E
Description
The Notifier AMPS-24E is an addressable power supply and battery charger designed to provide supervised 24 VDC power distribution for NOTIFIER fire alarm control systems. It supports up to three 24 VDC outputs, programmable charging capabilities, and integration with NFS-3030, NFS2-3030, and NCA-2 systems. The module is used to provide reliable system power, battery backup management, and auxiliary power for life safety installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Alarm Systems |
| Part Number | AMPS-24E |
| Subcategory | Addressable Power Supply |
| Product Type | Addressable Power Supply and Battery Charger |
| Compatible Panels | NFS-3030, NFS2-3030, NCA-2 |
| Communication Protocols | FlashScan® and CLIP |
| Output Voltage | 24 VDC |
| Number of DC Outputs | Up to 3 outputs |
| Auxiliary Outputs | 24 VDC @ 0.5 A and 5 VDC @ 0.15 A |
| Battery Capacity Range | 7 AH to 200 AH |
| Battery Charging | Selectable charging current |
| SLC Interface | Isolated Signaling Line Circuit |
| Programming Interface | USB Type B connector |
| AC Monitoring | AC loss detection with delay reporting |
| Protection Features | Brownout detection, battery supervision, charger monitoring |
| Trouble Input | Normally open dry contacts or open-collector input |
| Mounting Compatibility | CAB-4 Series, EQ Cabinet Series, BB-25, BB-100, BB-200 |
| Application | Fire alarm system power expansion and backup power |
| Weight | Approximately 5.0 lbs |
Information About AMPS-24E
The AMPS-24E is part of the NOTIFIER addressable power supply family, developed for advanced fire alarm control panel installations requiring monitored power expansion. The unit provides isolated SLC communication, configurable battery charging from 7 AH to 200 AH batteries, and supervised auxiliary outputs for connected system devices. It is designed for installation in CAB-4 Series, EQ Series, and compatible battery backbox enclosures used with NOTIFIER control equipment. The power supply supports FlashScan® and CLIP operating modes, allowing flexible integration with existing and newer NOTIFIER fire alarm architectures.
Key Features:
- Addressable Power Supply: Communicates directly with NFS-3030 and NFS2-3030 fire alarm control panels for supervised power management.
- Dual Protocol Support: Operates in FlashScan® or CLIP mode for compatibility with multiple NOTIFIER system configurations.
- Multiple 24 VDC Outputs: Provides up to three regulated 24 VDC power outputs for connected fire alarm devices.
- Battery Charging Capability: Supports selectable charging current for 7 AH to 200 AH backup batteries.
- Isolated SLC Interface: Provides electrically isolated signaling line communication for improved system reliability.
- Auxiliary Power Outputs: Includes secondary 24 VDC and 5 VDC auxiliary outputs for system peripherals.
- Battery Supervision: Continuously monitors battery condition and charger operation for fault reporting.
- AC Loss Monitoring: Detects AC power loss and supports configurable delay reporting functions.
- Brownout Detection: Identifies reduced input voltage conditions to help prevent unstable operation.
- USB Programming Interface: Includes a Type B USB connector for configuring installation parameters.
- Trouble Bus Input: Supports normally open dry contacts and open-collector circuits for external monitoring.
- Flexible Mounting Options: Compatible with CAB-4, EQ Cabinet, BB-25, BB-100, and BB-200 enclosures.
The AMPS-24E delivers the reliability and precision required for supervised fire alarm power distribution and emergency backup power management.
