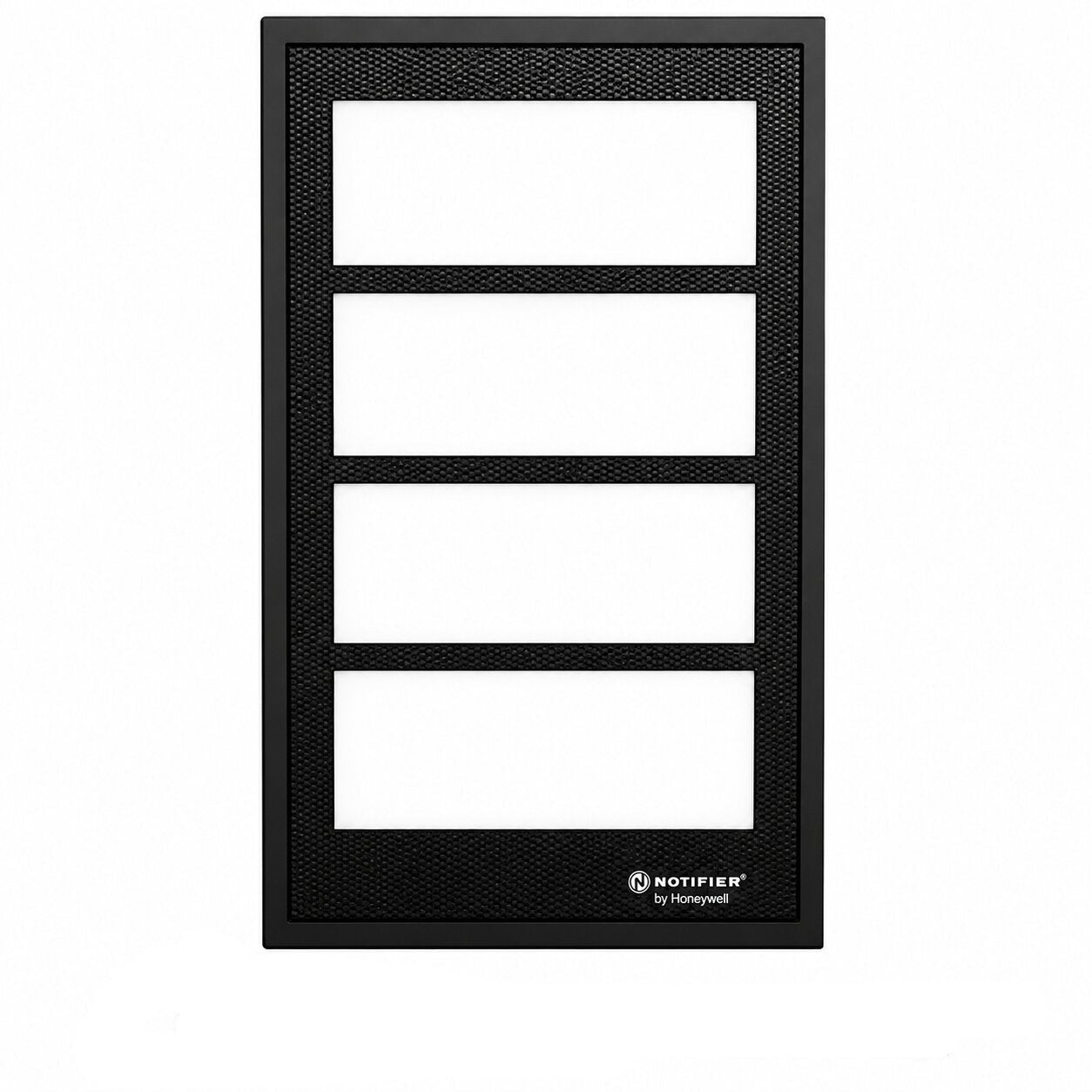

NOTIFIER DR-D4R CAB-4 Four-Tier Red Windowed Fire Alarm Cabinet Door
- Regular price
- $627.00
- Sale price
- $627.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DR-D4R
Description
The NOTIFIER DR-D4R is a red, four-tier windowed door assembly designed for CAB-4 Series fire alarm control cabinets. It provides a locking front enclosure for compatible D-size backboxes while allowing installed displays and controls to remain visible through the integrated window.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | NOTIFIER |
| Category | Fire Alarm Systems |
| Part Number | DR-D4R |
| Subcategory | Fire Alarm Cabinet Doors |
| Product Series | CAB-4 Series |
| Product Type | Windowed Cabinet Door Assembly |
| Cabinet Size | D-Size |
| Tier Capacity | 4 Tiers |
| Chassis Capacity | Up to 4 Chassis |
| Color | Red |
| Material | 16-Gauge Steel |
| Window | Integrated |
| Hinge Configuration | Right or Left-Hand, Field Selectable |
| Maximum Door Opening | 180° |
| Compatible Backbox | SBB-D4R |
| Dimensions | 0.20 × 24.12 × 45.87 in |
| Listings / Approvals | UL, ULC, FM, CSFM, FDNY, MEA |
| Weight | 23.95 lb |
Information About DR-D4R
The DR-D4R is a NOTIFIER CAB-4 Series door assembly configured for four-tier D-size fire alarm cabinets. Its 16-gauge steel construction provides a rigid protective enclosure, while the built-in window permits visual access to compatible control and annunciation equipment. The door uses field-selectable right- or left-hand hinging and can open through 180 degrees when adequate clearance is available. It mates with the red SBB-D4R four-tier backbox, which is ordered separately to complete the cabinet assembly.
Key Features:
- Four-Tier Configuration: D-size door assembly accommodates cabinet arrangements with up to four chassis tiers.
- Integrated Window: Provides visibility of installed fire alarm displays and operator interfaces without opening the cabinet.
- Red Finish: Supplied in red for fire alarm and life-safety system installations.
- 16-Gauge Steel Construction: Provides a rigid enclosure structure for compatible NOTIFIER cabinet equipment.
- Reversible Hinging: Supports field-selectable right-hand or left-hand door installation.
- 180-Degree Opening: Door can open through 180 degrees where installation clearance permits.
- Locking Hardware: Cabinet architecture uses a locking door arrangement for controlled access to internal equipment.
- SBB-D4R Compatibility: Designed to mate with the four-tier red SBB-D4R backbox.
The DR-D4R delivers the reliability and precision required for protecting and providing controlled access to four-tier fire alarm control cabinet installations.
