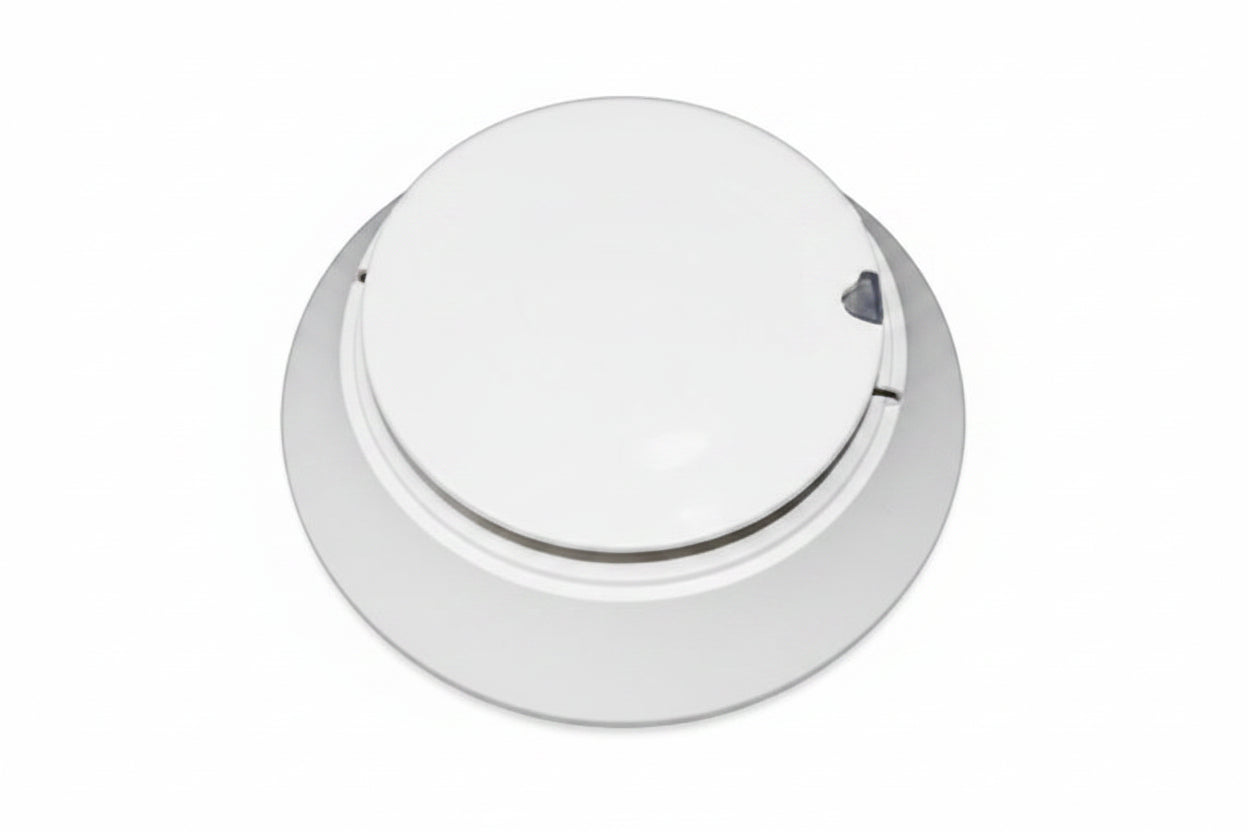

NOTIFIER FCO-951 IntelliQuad PLUS Multi-Criteria Fire and CO Detector
- Regular price
- $215.00
- Sale price
- $215.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FCO-951
Description
The NOTIFIER FCO-951 is an IntelliQuad PLUS intelligent addressable multi-criteria fire and carbon monoxide detector designed for FlashScan fire alarm systems. It combines photoelectric smoke, thermal, infrared, and electrochemical CO sensing to detect multiple fire signatures while providing a separate life-safety CO signal.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | NOTIFIER |
| Category | Fire Alarm Systems |
| Part Number | FCO-951 |
| Subcategory | Multi-Criteria Fire/CO Detectors |
| Product Series | IntelliQuad PLUS |
| Product Type | Intelligent Addressable Multi-Criteria Fire/CO Detector |
| Sensing Technologies | Photoelectric Smoke, Thermal, Infrared, Carbon Monoxide |
| Communication Protocol | FlashScan |
| Operating Voltage | 15–32 VDC |
| Operating Current | 200 µA at 24 VDC |
| Maximum Alarm Current | 2 mA at 24 VDC |
| Maximum Current | 4.5 mA at 24 VDC |
| Thermal Threshold | 135°F (57°C) Fixed Temperature |
| CO Cell Life | 10 Years with End-of-Life Warning |
| Operating Temperature | 32°F to 100°F (0°C to 38°C) |
| Operating Humidity | 15–90% RH, Non-Condensing |
| Air Velocity | 0–4,000 ft/min (0–1,219.2 m/min) |
| Dimensions with B200S Base | 2.7 in H × 6.875 in Diameter |
| Color | White |
| Listings / Standards | UL 268 7th Edition, UL 521, UL 2075 |
| Weight | 3.4 oz (95 g) |
Information About FCO-951
The FCO-951 is a NOTIFIER IntelliQuad PLUS plug-in detector developed as the successor to the FSC-851 multi-criteria detector. Its four-sensor architecture evaluates smoke particles, heat, infrared light patterns, and carbon monoxide through onboard algorithms designed to improve fire sensitivity while reducing nuisance alarms. The detector uses a single address on the signaling line circuit and supports FlashScan communication with compatible NOTIFIER fire alarm control equipment. A 10-year CO sensing cell with end-of-life warning, automatic smoke and CO drift compensation, RealTest CO testing, and compatibility with B200S Series sounder bases support combined fire and CO monitoring applications.
Key Features:
- Four-Sensor Detection: Combines photoelectric smoke, thermal, infrared, and carbon monoxide sensing in one addressable detector.
- Separate CO Detection: Generates a distinct life-safety CO signal using an electrochemical sensing cell.
- FlashScan Communication: Provides intelligent addressable communication with compatible NOTIFIER control systems.
- Single SLC Address: Requires only one address on the signaling line circuit despite providing multiple sensing functions.
- 10-Year CO Cell: Incorporates a carbon monoxide sensing cell with an end-of-life warning function.
- Thermal Detection: Provides fixed-temperature detection at 135°F (57°C) together with rate-of-rise thermal sensing.
- Automatic Drift Compensation: Compensates for changes affecting both smoke and CO sensing performance.
- RealTest CO Testing: Supports functional testing of the carbon monoxide sensing element through NOTIFIER RealTest technology.
The FCO-951 delivers the reliability and precision required for combined intelligent fire and carbon monoxide detection in addressable life-safety systems.
