Notifier FCPS-24 24 VDC Remote Fire Alarm Power Supply and Battery Charger
- Regular price
- $1,445.00
- Sale price
- $1,445.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FCPS-24
Description
Notifier FCPS-24 is a compact remote power supply and battery charger designed for fire alarm systems requiring additional regulated 24 VDC power. It can expand notification appliance circuits or provide auxiliary power for compatible 24 V fire alarm system accessories, with supervised outputs and integrated battery charging.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Safety |
| Part Number | FCPS-24 |
| Subcategory | Fire Alarm Power Supplies |
| Product Type | Remote Power Supply / Battery Charger |
| Output Voltage | 24 VDC, filtered and regulated |
| Output Circuits | 4 configurable circuits |
| Maximum Current per Circuit | 3.0 A |
| Continuous Output Current | 4.0 A total in stand-alone mode |
| Short-Term Output Current | 6.0 A total in NAC expander mode |
| AC Input | 120 VAC, 50/60 Hz, 2.0 A maximum |
| Control Input Voltage | 9–32 VDC |
| Battery Type | Lead-acid |
| Maximum Battery Capacity | 7.0 Ah |
| Float Charge Voltage | 27.6 VDC |
| Cabinet Dimensions | 15 × 14.5 × 2.75 in (381 × 368 × 70 mm) |
| Standards | UL 864, UL 1481, NFPA 72 |
| Weight | 18 lb |
Information About FCPS-24

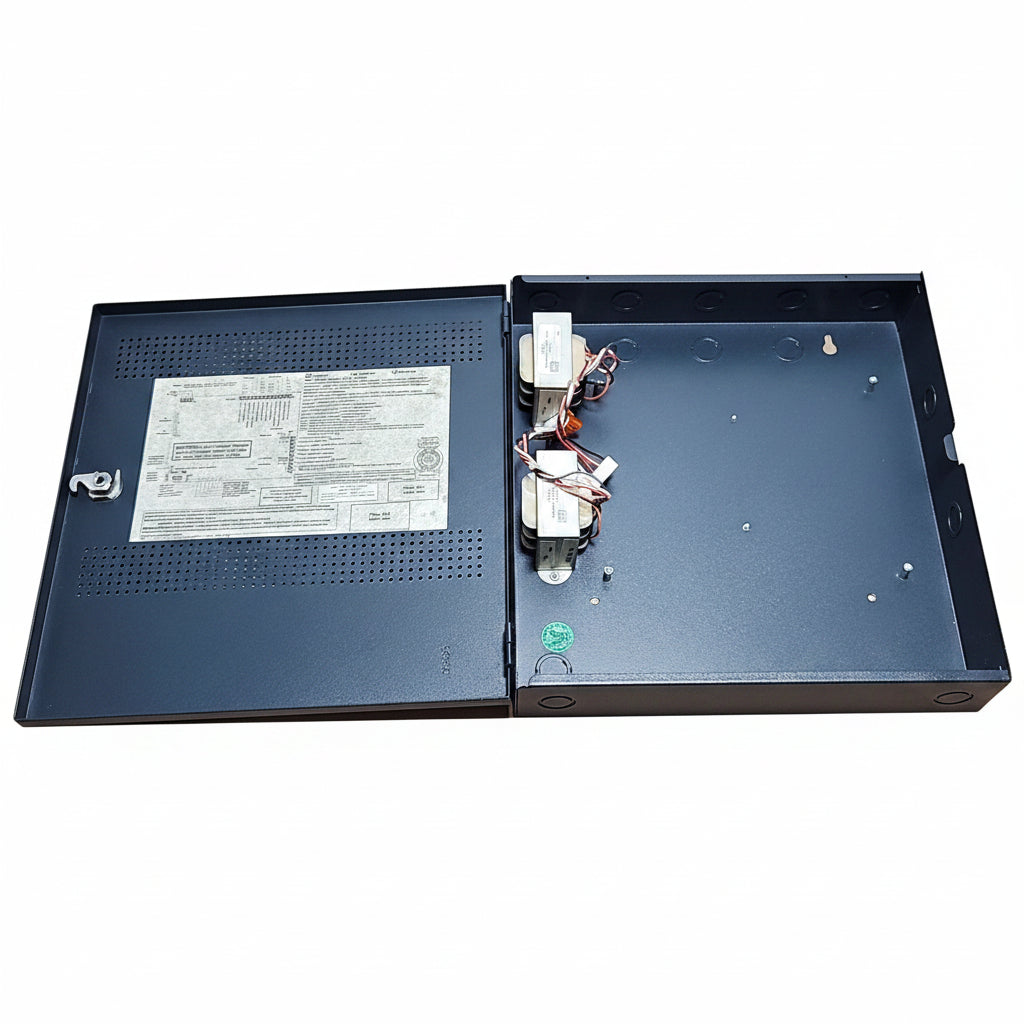

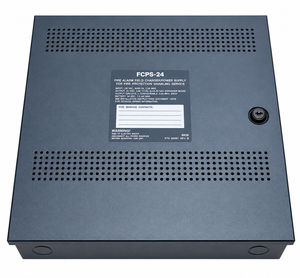

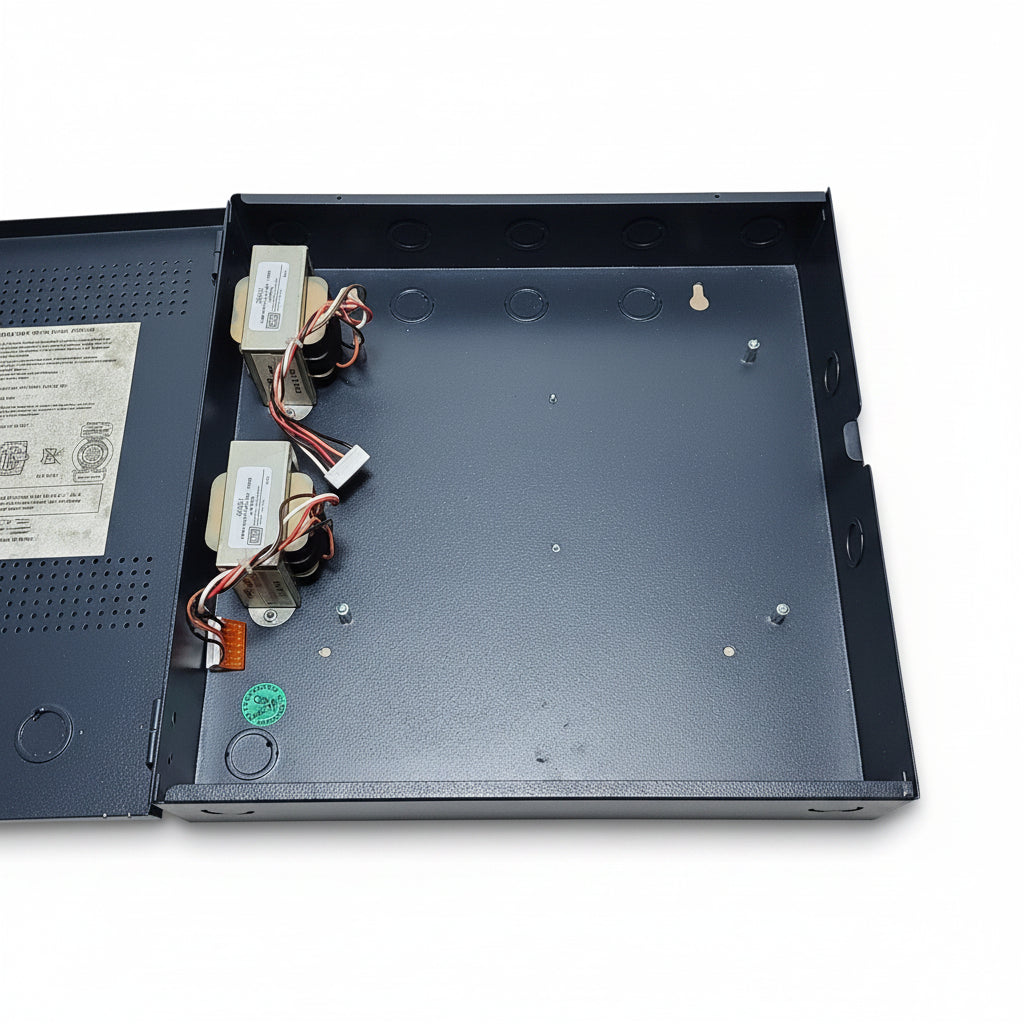

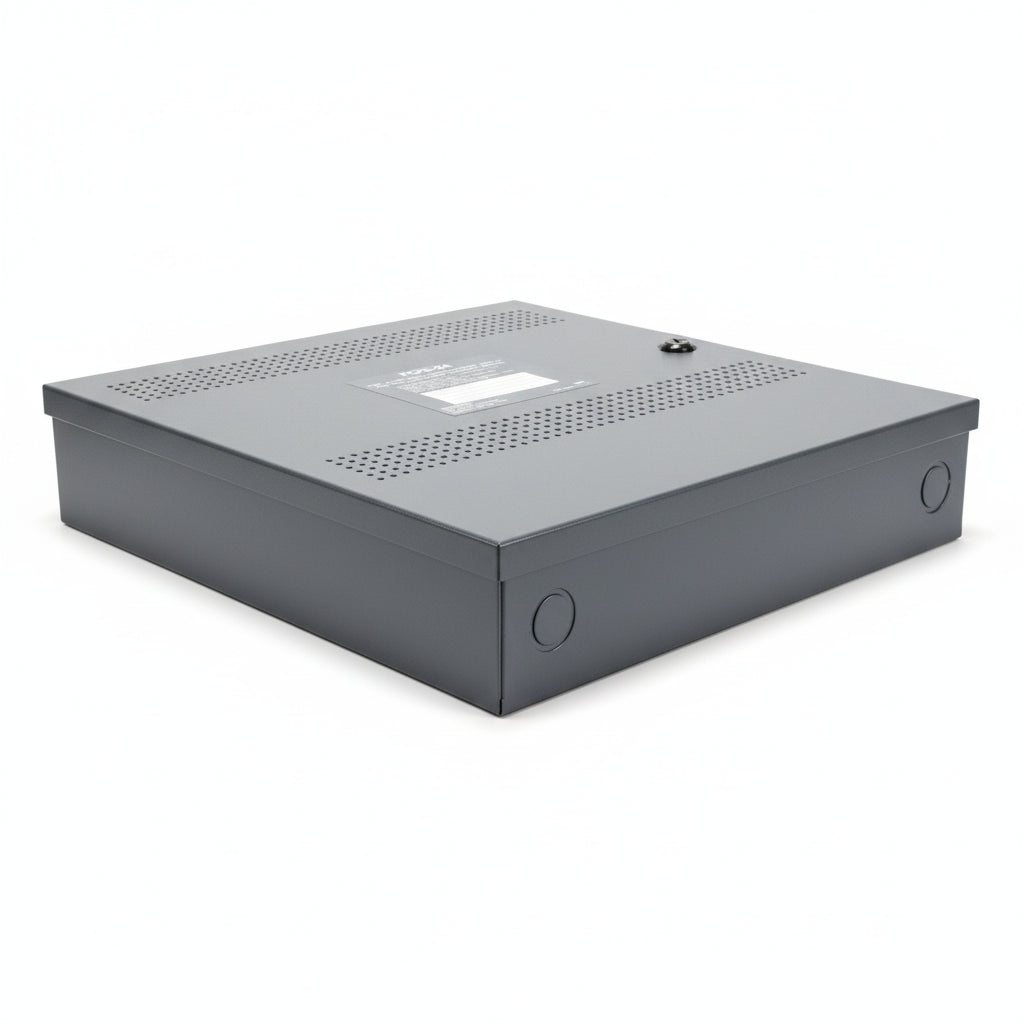

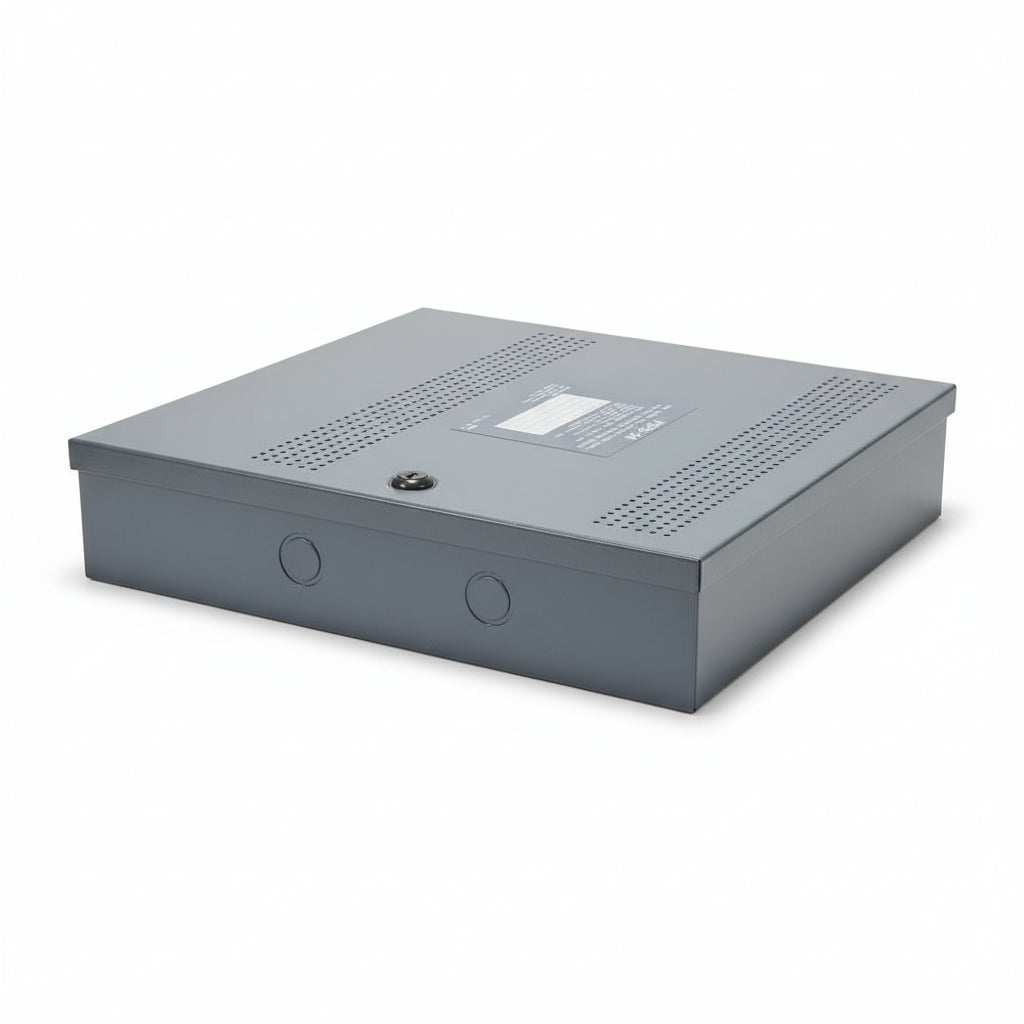

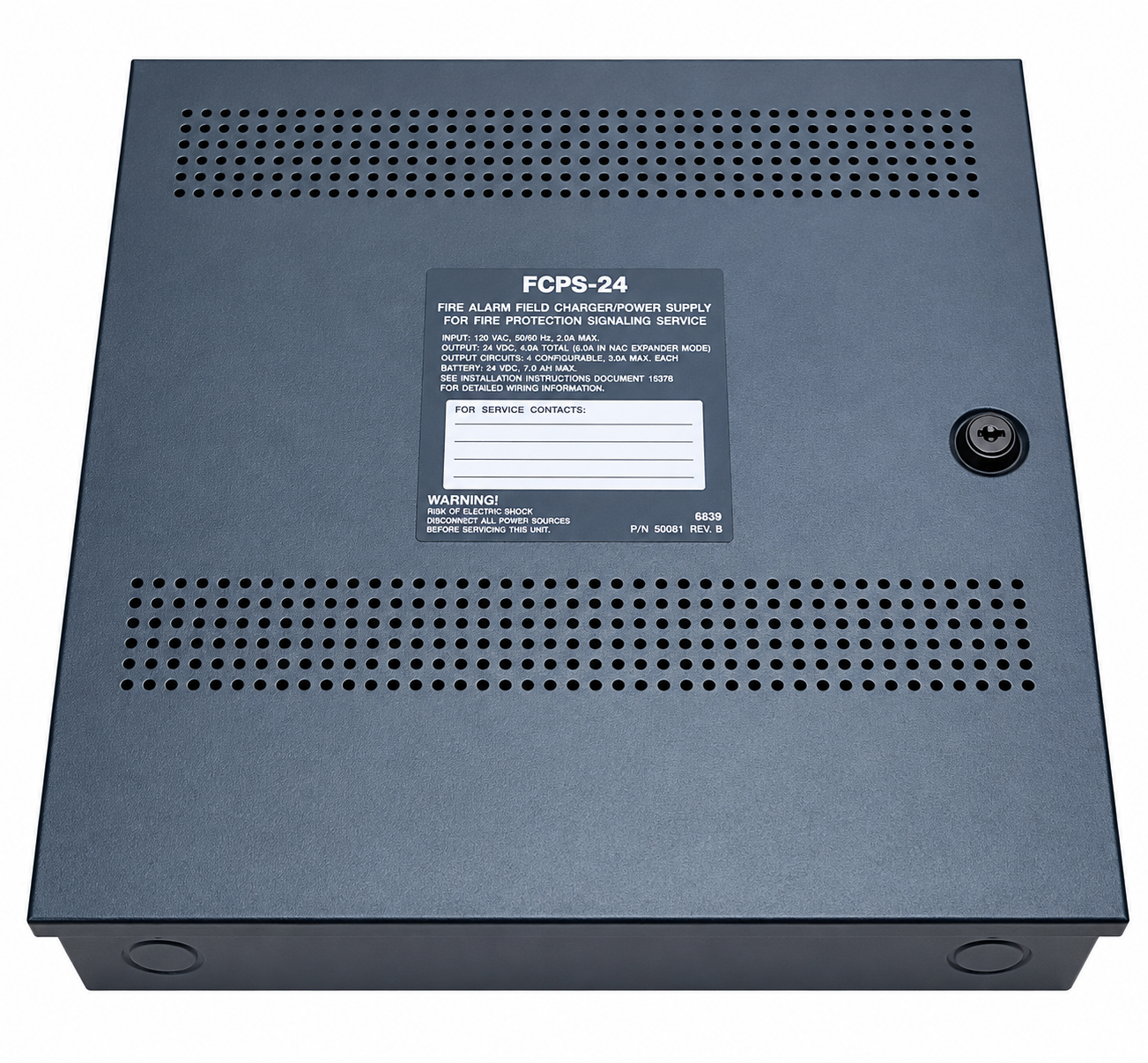

The FCPS-24 is a remote field charger/power supply housed in a self-contained lockable cabinet for fire alarm installations. It provides four configurable output circuits that can operate as notification appliance circuits or as resettable/non-resettable 24 VDC power outputs. Two optically isolated control inputs accept activation signals from compatible fire alarm control panels, while the unit supervises the power supply, battery, notification circuits, and selected earth-fault conditions. The integral charger supports lead-acid batteries up to 7.0 Ah, making the unit suitable for localized power expansion within conventional fire alarm systems
Key Features:
- 24 VDC Remote Power: Provides regulated and filtered DC power for compatible fire alarm system loads.
- NAC Expansion: Supports expansion of notification appliance circuits from a compatible FACP.
- Four Output Circuits: Provides four configurable circuits for notification or auxiliary power applications.
- Isolated Control Inputs: Includes two optically isolated input/control circuits for FACP activation.
- Integrated Battery Charger: Charges lead-acid standby batteries with a 27.6 VDC float voltage.
- Supervised Operation: Monitors the power supply, battery, and NAC circuits for trouble conditions.
- Lockable Enclosure: Uses a compact self-contained cabinet for protected field installation.
- Earth Fault Detection: Provides selectable earth-fault monitoring for system supervision.
The FCPS-24 delivers the regulated power expansion and supervision required for reliable fire alarm notification and auxiliary power applications.
