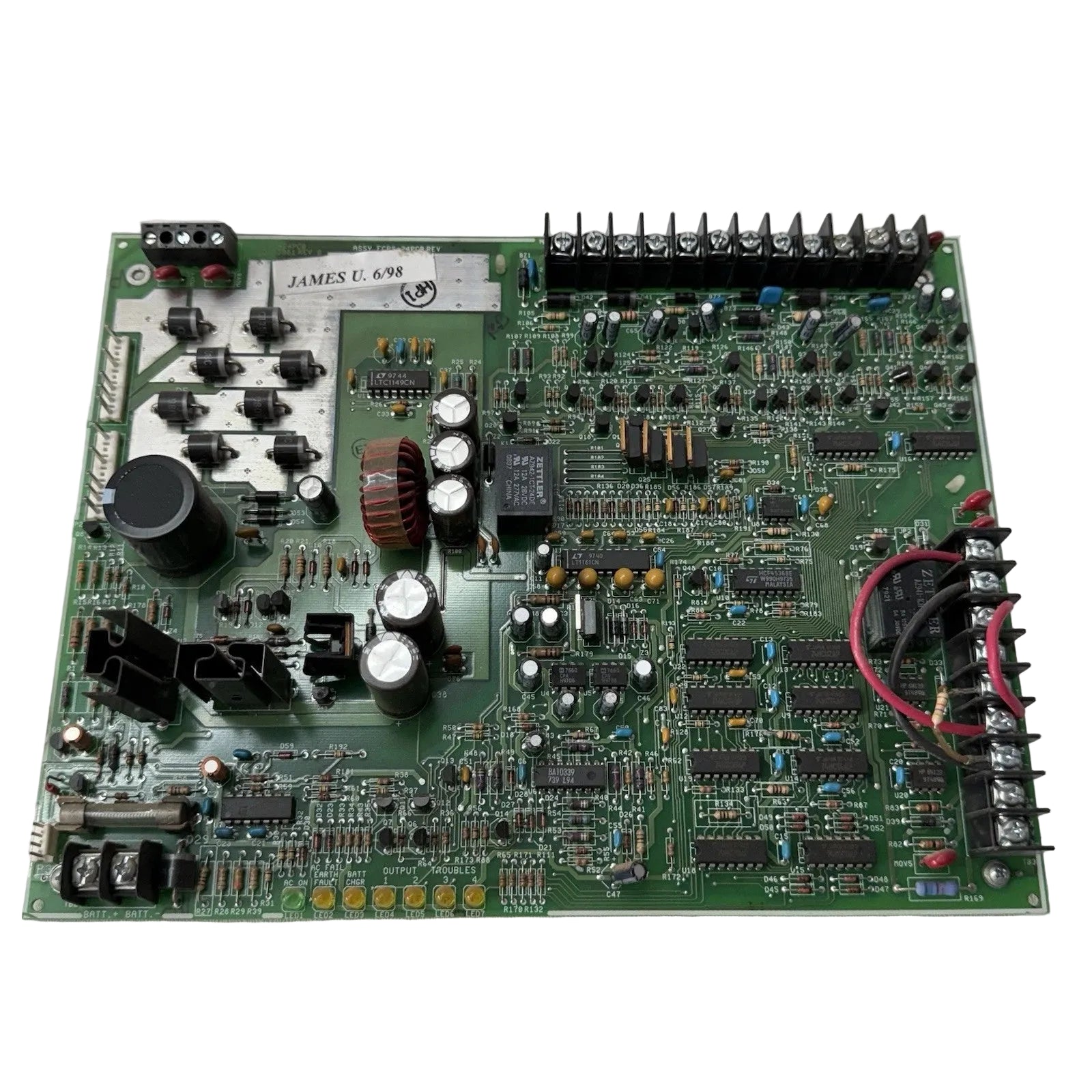

Notifier FCPS-24PCB Fire Alarm Remote Power Supply Circuit Board
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FCPS-24PCB
Description
Notifier FCPS-24PCB is a replacement power supply circuit board for the FCPS-24 remote fire alarm power supply. The board provides regulated 24 VDC power for notification appliance circuits and auxiliary fire alarm system loads while supporting integrated battery-charging functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Alarm Systems |
| Part Number | FCPS-24PCB |
| Subcategory | Power Supply Modules |
| Product Type | Remote Power Supply Circuit Board |
| Compatible System | FCPS-24 Remote Power Supply |
| Output Voltage | 24 VDC filtered and regulated |
| Output Circuits | 4 configurable circuits |
| NAC Configuration | Up to 2 Class A / 2 Class B or 4 Class B circuits |
| Maximum Output per Circuit | 3.0 A |
| Continuous Total Output | 4.0 A maximum |
| Short-Term Total Output | 6.0 A maximum in NAC expander mode |
| Trigger Input Voltage | 9–32 VDC |
| Battery Type | Lead-acid |
| Maximum Battery Capacity | 7.0 Ah |
| Float Charge Voltage | 27.6 VDC |
| Maximum Charge Current | 250 mA |
| Status Monitoring | AC, battery/charger, output and earth-fault supervision |
| Manufacturer Status | Discontinued |
| Weight | 1.47 kg |
Information About FCPS-24PCBBCM-MS/TP
The FCPS-24PCB belongs to the FCPS-24 remote power supply and battery charger family used in fire alarm installations. It is designed as the main printed circuit board for compatible FCPS-24 assemblies and provides the control and power-distribution functions of the unit. The board supports four configurable output circuits that can operate as notification appliance circuits or resettable/non-resettable 24 VDC power outputs. It incorporates supervised power, battery, and circuit monitoring functions for compatible fire alarm applications.
Key Features:
- Remote Power Supply Board: Serves as the main PCB for compatible FCPS-24 remote power supply assemblies.
- 24 VDC Output: Provides filtered and regulated 24 VDC output power for connected fire alarm equipment.
- Four Output Circuits: Supports four configurable circuits for notification or auxiliary power applications.
- NAC Expansion: Allows FCPS-24 systems to provide additional notification appliance circuit capacity.
- Battery Charger: Supports the integral supervised battery-charging function of the FCPS-24 system.
- Circuit Supervision: Provides monitoring of power, battery, trouble conditions, and notification circuits.
- Flexible Configuration: Outputs can be configured for notification circuits or resettable/non-resettable auxiliary power.
- Fire Alarm Integration: Designed for connection to compatible 12 VDC or 24 VDC fire alarm control systems.
The FCPS-24PCB delivers the reliability and precision required for remote fire alarm power distribution and notification circuit expansion.
