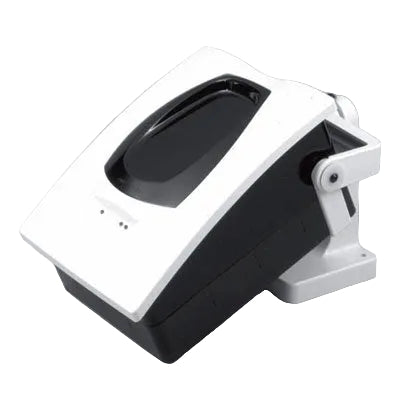

Notifier FSB-200S Intelligent Addressable Reflective Beam Smoke Detector
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FSB-200S
Description
The Notifier FSB-200S is an intelligent addressable reflected beam smoke detector designed for smoke detection in large open areas where conventional spot-type detectors are difficult to install or maintain. It uses a transmitter/receiver and reflector design to monitor smoke obscuration across extended distances, making it suitable for high ceilings, warehouses, atriums, hangars, and large commercial facilities. The detector provides advanced sensitivity adjustment, automatic compensation, and remote testing capabilities for reliable fire detection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Alarm Systems |
| Part Number | FSB-200S |
| Subcategory | Addressable Beam Smoke Detector |
| Product Type | Intelligent Reflective Beam Smoke Detector |
| Detection Technology | Infrared reflected beam smoke detection |
| Compatible Panels | NFS-3030, NFS2-3030, NFS-640, NFS2-640, NFS-320 |
| Communication Mode | FlashScan® and CLIP |
| Protection Range | 16 to 230 ft (5 to 70 m) |
| Extended Range | Up to 328 ft (100 m) with BEAMLRK kit |
| Sensitivity Levels | Six selectable levels |
| Acclimate® Settings | Level 5 and Level 6 adaptive sensitivity |
| Beam Adjustment | ±10° horizontal and vertical |
| Alignment Method | Optical sight and digital signal strength display |
| Operating Voltage | 15 to 32 VDC |
| Standby Current | 2 mA maximum at 24 VDC |
| Alarm Current | 8.5 mA maximum |
| Trouble Current | 4.5 mA maximum |
| Alignment Current | 20 mA maximum |
| External Test Power | 15 to 32 VDC, 0.5 A maximum |
| Remote Alarm Output | 15 to 32 VDC, 15 mA maximum |
| Operating Temperature | -22°F to 131°F (-30°C to 55°C) |
| Humidity Range | 10% to 93% RH non-condensing |
| Smoke Detector Spacing | 30 to 60 ft between beams on smooth ceilings |
| Mounting Options | Wall or ceiling with optional BEAMMMK kit |
| Optional Accessories | BEAMLRK, BEAMMMK, BEAMHK, BEAMHKR |
| Certifications | UL 268, ULC CAN/ULC S529 |
| Application | Large-area commercial smoke detection |
| Weight | Approximately 2.0 lbs |
Information About FSB-200S
The FSB-200S is part of the NOTIFIER intelligent beam smoke detector family, engineered for use with ONYX® Series fire alarm control panels and compatible addressable systems. The detector combines a single-ended reflective optical design with integrated alignment tools, including an optical sight and digital signal strength display for simplified installation. It supports six sensitivity levels, including Acclimate® settings that automatically adjust detection thresholds based on environmental conditions. The FSB-200S includes an integral motorized sensitivity test filter and is designed for applications requiring dependable smoke detection across large distances and challenging architectural spaces.
Key Features:
- Intelligent Addressable Detection: Provides monitored smoke detection with addressable communication for NOTIFIER fire alarm systems.
- Reflected Beam Technology: Uses a combined transmitter/receiver and reflector system to detect smoke across open areas.
- Extended Coverage Range: Protects distances from 16 to 230 ft, expandable up to 328 ft with the optional BEAMLRK kit.
- Large Area Applications: Designed for atriums, warehouses, aircraft hangars, arenas, parking structures, and high-ceiling buildings.
- FlashScan® and CLIP Compatibility: Operates with NFS-3030, NFS2-3030, NFS-640, NFS2-640, and NFS-320 panels.
- Six Sensitivity Settings: Provides multiple detection thresholds, including Acclimate® adaptive sensitivity modes.
- Automatic Gain Control: Compensates for signal reduction caused by dust accumulation and gradual optical changes.
- Digital Alignment Display: Includes a two-digit signal strength indicator for easier beam alignment.
- Integrated Sensitivity Testing: Features a built-in motorized filter test function compatible with RTS151 and RTS151KEY stations.
- Wide Temperature Operation: Rated for operation from -22°F to 131°F (-30°C to 55°C).
- Flexible Mounting Options: Supports optional multi-mount and heater kits for specialized installations.
- Plug-In Terminals: Uses removable terminal blocks for simplified field installation and maintenance.
The FSB-200S delivers the reliability and precision required for large-area addressable smoke detection and high-ceiling fire protection applications.
