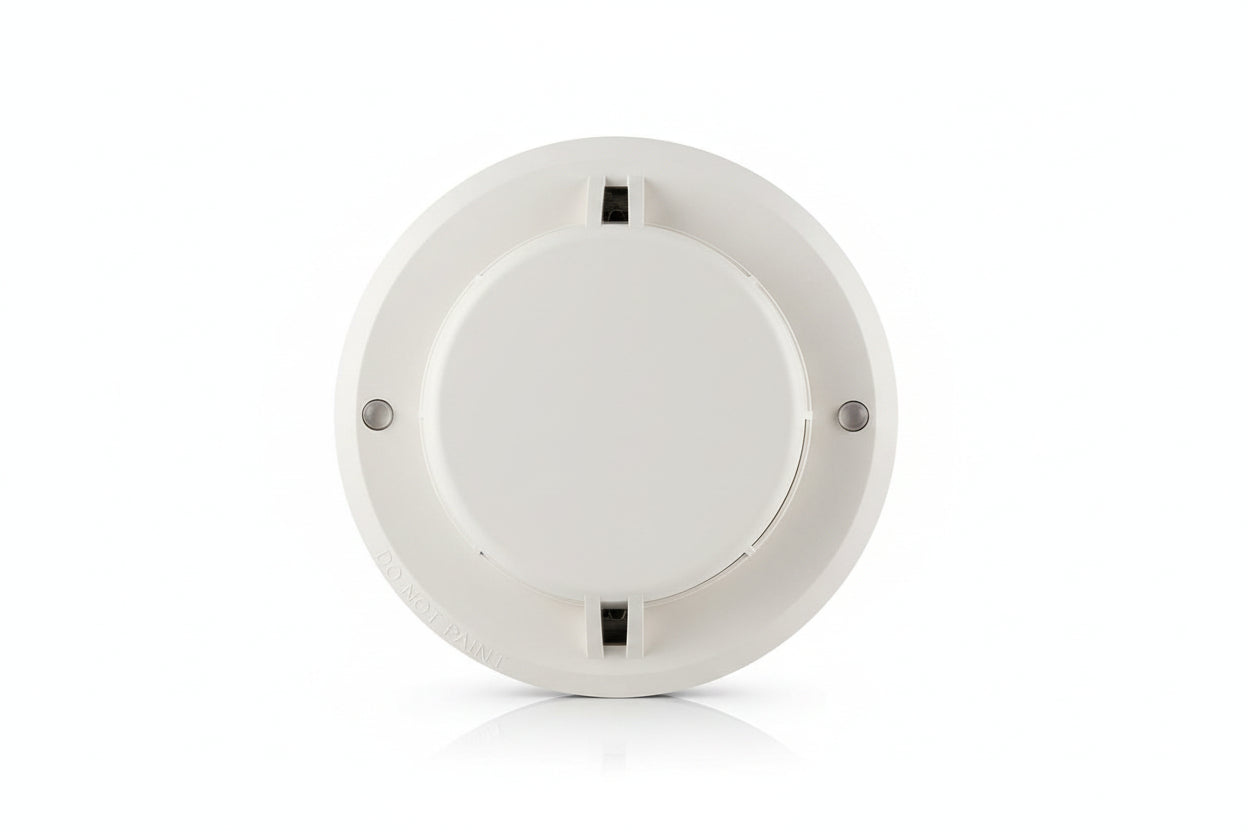

Notifier FSP-751T Intelligent Photoelectric Smoke and Heat Detector
- Regular price
- $339.00
- Sale price
- $339.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FSP-751T
Description
The Notifier FSP-751T is an intelligent, addressable photoelectric smoke detector with an integrated fixed-temperature thermal sensor. It combines optical smoke detection with heat detection at 135°F (57°C) to identify potential fire conditions through two sensing methods. The detector is designed for compatible Notifier fire alarm systems and can be used in open-area and approved air-duct applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Safety |
| Part Number | FSP-751T |
| Subcategory | Addressable Photoelectric Smoke Detectors |
| Product Series | FSP-751 Series |
| Product Type | Intelligent Addressable Smoke and Heat Detector |
| Smoke Detection Technology | Photoelectric |
| Thermal Detection Type | Fixed-temperature |
| Thermal Activation Temperature | 135°F (57°C) |
| Communication Type | Addressable analog |
| Operating Voltage | 15–32 VDC |
| Standby Current | 300 µA at 24 VDC with LED blink enabled and one communication every 5 seconds |
| Maximum Alarm Current | 6.5 mA at 24 VDC with LED activated |
| Operating Temperature | 32°F to 100°F (0°C to 38°C) |
| Operating Humidity | 10%–93% relative humidity, non-condensing |
| Height with B710LP Base | 1.7 in (43 mm) |
| Diameter with B710LP Base | 6.1 in (155 mm) |
| Diameter with B501 Base | 4.1 in (104 mm) |
| Address Configuration | Rotary address switches |
| Status Indicators | Dual LEDs with 360° visibility |
| Compatible Mounting Bases | B710LP, B501, B501BH, B501BHT, B224RB, and B224BI |
| Remote LED Accessory | RA400Z |
| Approved Applications | Open-area protection and approved air-duct applications |
| Weight | 0.225 lbs (3.6 oz) |
| FCC ID | PV3WFSGW |
| Weight | 0.225 lbs |
Information About FSP-751T
The FSP-751T belongs to the Notifier FSP-751 series of low-profile intelligent fire detectors. It uses a photoelectronic sensing chamber and addressable communication to transmit detector status to a compatible fire alarm control panel. Its built-in thermal element provides fixed-temperature detection at 135°F (57°C), while rotary address switches allow individual device identification. The detector uses a separately supplied mounting base and supports optional remote LED indication through the RA400Z accessory.
Key Features:
- Photoelectric Smoke Detection: Uses an optical sensing chamber to detect smoke particles associated with combustion.
- Fixed-Temperature Thermal Sensor: Includes a built-in heat sensor that activates at 135°F (57°C).
- Dual Detection Technology: Combines photoelectric smoke sensing with thermal detection in one device.
- Addressable Communication: Transmits detector information to compatible Notifier fire alarm control panels.
- Rotary Address Switches: Allows the detector to be assigned an individual system address.
- Low-Profile Design: Provides a compact detector housing for ceiling-mounted fire detection installations.
- Dual LED Indicators: Offers visible local status indication with a 360° viewing angle.
- Mounting Base Compatibility: Supports installation with compatible B710LP, B501, relay, and isolator bases.
The FSP-751T delivers the reliability and precision required for combined smoke and heat detection in compatible fire alarm systems.
