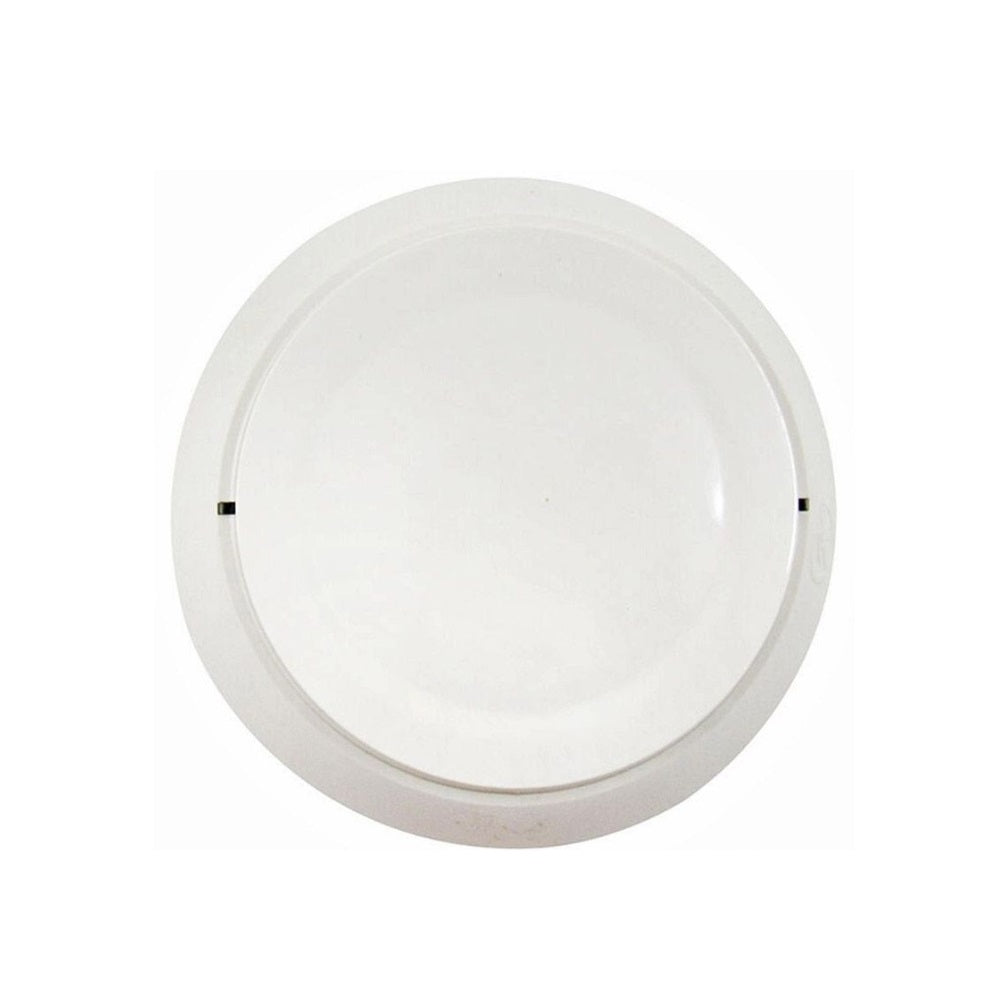

Notifier FSV-951R-IV VIEW High-Sensitivity Photoelectric Smoke Detector
- Regular price
- $555.00
- Sale price
- $555.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FSV-951R-IV
Description
The Notifier FSV-951R-IV is a high-sensitivity photoelectric smoke detector designed for Very Early Warning Fire Detection (VIEW®) applications. It uses an advanced optical sensing chamber and addressable analog communication to identify smoke at low concentrations. The ivory-colored detector is suitable for compatible Notifier fire alarm systems in data centers, telecommunications facilities, computer rooms, and other environments requiring early smoke detection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Safety |
| Part Number | FSV-951R-IV |
| Subcategory | Addressable Photoelectric Smoke Detectors |
| Product Series | VIEW® |
| Detector Type | High-Sensitivity Photoelectric Smoke Detector |
| Detection Technology | Photoelectric optical sensing |
| Communication Type | Addressable analog |
| Supported Protocols | FlashScan® and CLIP |
| Smoke Sensitivity | 0.02% to 2.00% per foot obscuration |
| Sensitivity Levels | 9 programmable levels |
| Operating Voltage | 15–32 VDC |
| Operating Current at 24 VDC | 300 µA |
| Maximum Alarm Current | 2 mA at 24 VDC |
| Maximum Current | 4.5 mA at 24 VDC |
| Operating Temperature | 14°F to 140°F (-10°C to 60°C) |
| Operating Humidity | 10%–93% relative humidity, non-condensing |
| Air Velocity Range | 0–4,000 ft/min (0–1,219 m/min) |
| Address Configuration | Rotary address switches |
| Status Indicators | Dual LEDs with 360° visibility |
| Compatible Bases | B501-IV and B300-6-IV |
| Dimensions with B300-6-IV Base | 2.0 in height × 6.2 in diameter |
| Weight | 0.21 lb |
Information About FSV-951R-IV
The FSV-951R-IV belongs to the Notifier VIEW series of intelligent, addressable smoke detectors manufactured by Honeywell. Its photoelectric sensing chamber and optical design help amplify smoke signals while reducing unwanted internal reflections. The detector supports both FlashScan® and CLIP communication protocols and includes rotary switches for setting its address. Built-in drift compensation, self-diagnostics, and transient signal rejection support stable operation and maintenance monitoring.
Key Features:
- High-Sensitivity Detection: Supports Very Early Warning Fire Detection for applications requiring rapid smoke identification.
- Photoelectric Sensing: Uses an optical sensing chamber to detect smoke particles.
- VIEW® Technology: Provides enhanced smoke signal processing for sensitive environments.
- Addressable Communication: Transmits smoke density information to a compatible fire alarm control panel.
- Dual LED Indicators: Provides 360° visibility of detector status.
- Rotary Address Switches: Allows the detector address to be configured for system identification.
- Drift Compensation: Monitors gradual changes in sensing chamber conditions and provides maintenance alerts.
- Protocol Compatibility: Supports FlashScan® and CLIP communication protocols.
The FSV-951R-IV delivers the reliability and precision required for early smoke detection in sensitive commercial, industrial, and telecommunications facilities.
